ClUTCh aSEmbly
ClUTCh bag
STEp 55 STEp 56
55.1
56.1
55.2
56.2

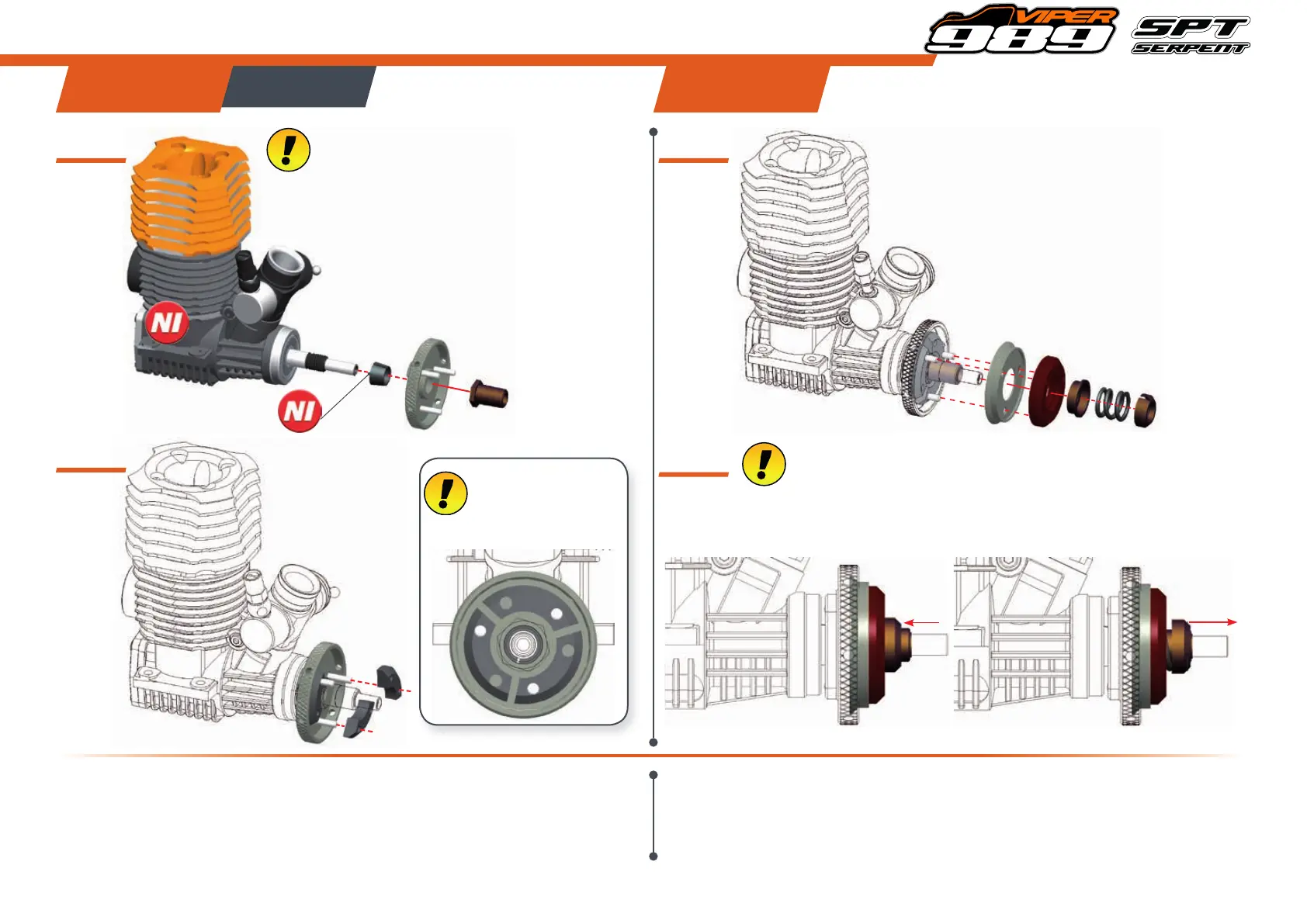

1- To align the clutchgears with the 2-speed gears,
it may be needed to use shim(s) 6x8x0.5mm (for
6mm shaft) or 7x8x0.5 (for 7mm shaft) behind the
cone. This you can see only after assembling the
clutch.
2- The holes in the side of the flywheel can be used
to block the flywheel (with short allen tool) through
the bottom of the chassis, when the engine/clutch
is mounted in the car. It’s easier to tighten or
loosen the pre-load on the clutch spring that way.
Note the orientation of
the flyweights. Use the
right hole for having a
more aggresive clutch
For adjusting the default clutch spring tension:
1- Screw in the adjusting nut all the way.
2- Unscrew it one and a half turns.
3- Fine tune the setup of your clutch on the track according to your
driving style, track and weather conditions.
