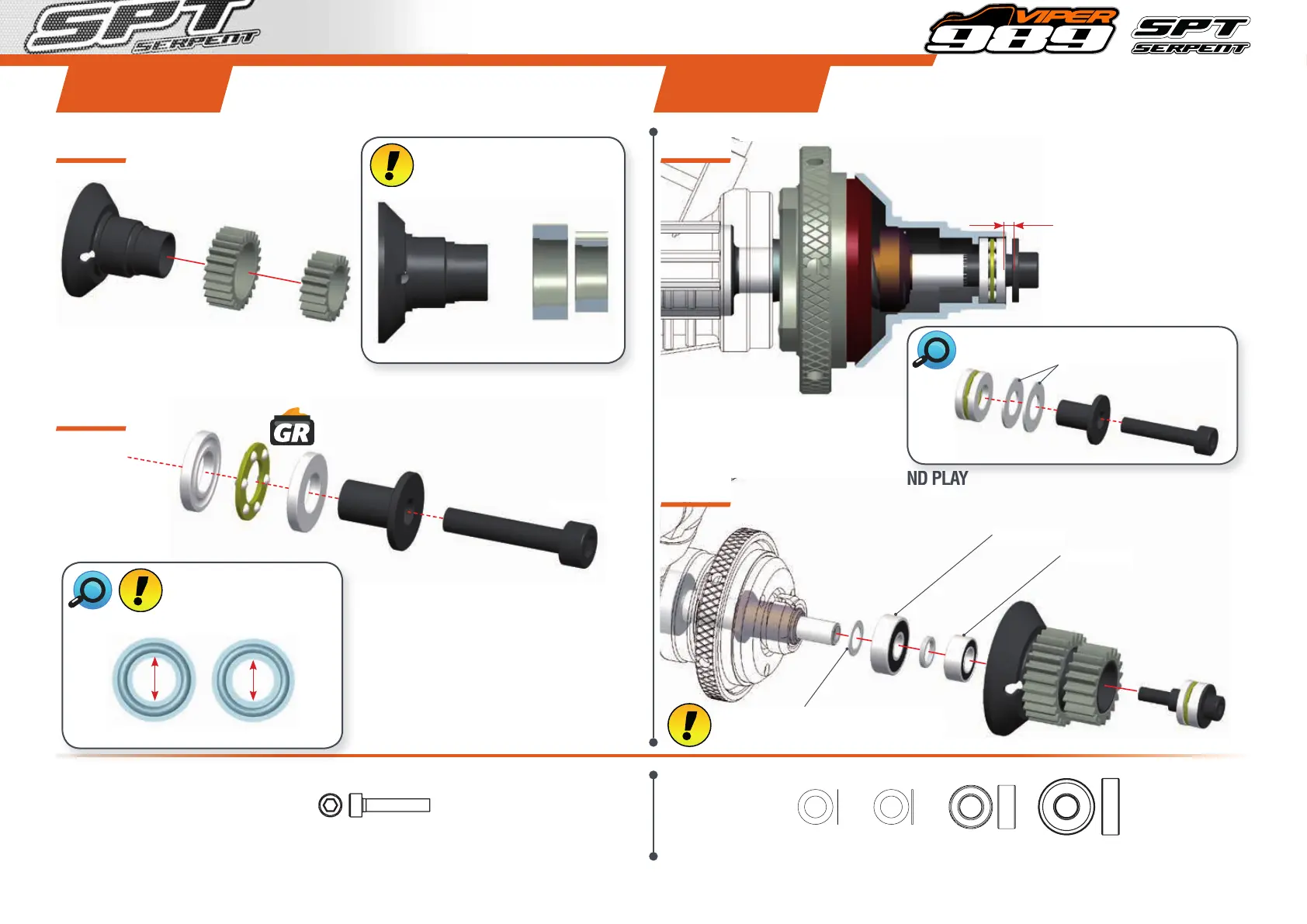

Serpent Viper 989 - Step 57; Step 58

40
STEp 57 STEp 58
57.1
58.1
57.2
58.2
Note the orientaion of the gears
IMPORTANT! Install thrust
bearing plates as shown.
Place 5x8x0.1 and/or 5x8x0.3 shims
to achieve a small amount of end play.
A
A
B
B
M3x16
5x10x4
5x13x4
5.2 mm
5.0 mm
SETTINGTHECLUTCHGAP
SETTINGTHECLUTCHENDPLAY
0.5 - 0.6mm
Use 5x8x0.1 and 5x8x0.3 shims to
achieve desired gap
M3x16
5x10x4
5x8x0.1 5x8x0.3
2ND 1ST
5x13x4
