Serpent VIPER 990e - Page 24

24

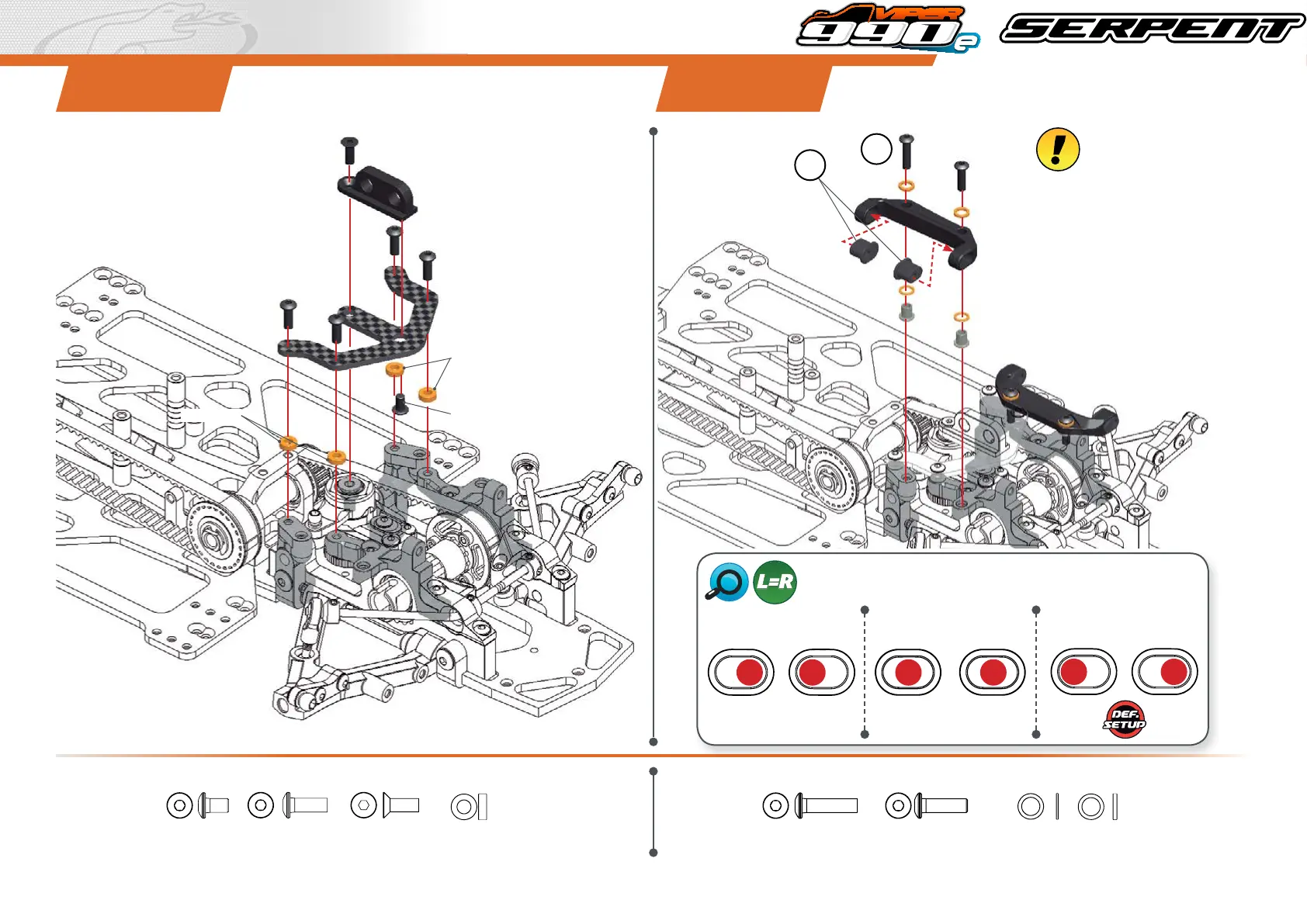

STEP 30 STEP 31
FRONTSUSPENSIONINSERTSCHART
INSIDE
OUTSIDE
RIGHTRIGHT
RIGHT
LEFT
LEFT
LEFT
MID
4x6x1
4x6x0.5
M3x10
M3x8
M3x8
M3x8
M3x5
3x6x2
3x6x2
M3x12
2
1
M3x10
Note that the 4x6x1 and
4x6x0.5 shims must be used
always. In order to rise or
lower the front suspension
bracket it is needed to play
with the position of the shims
but never remove them. Is it
possible to go from “0” with
no shims under the bracket
to 1.5mm with both shims
under the braket.
M3x12
4x6x0.5
4x6x1
M3x8 M3x8
3x6x2
M3x5
