29

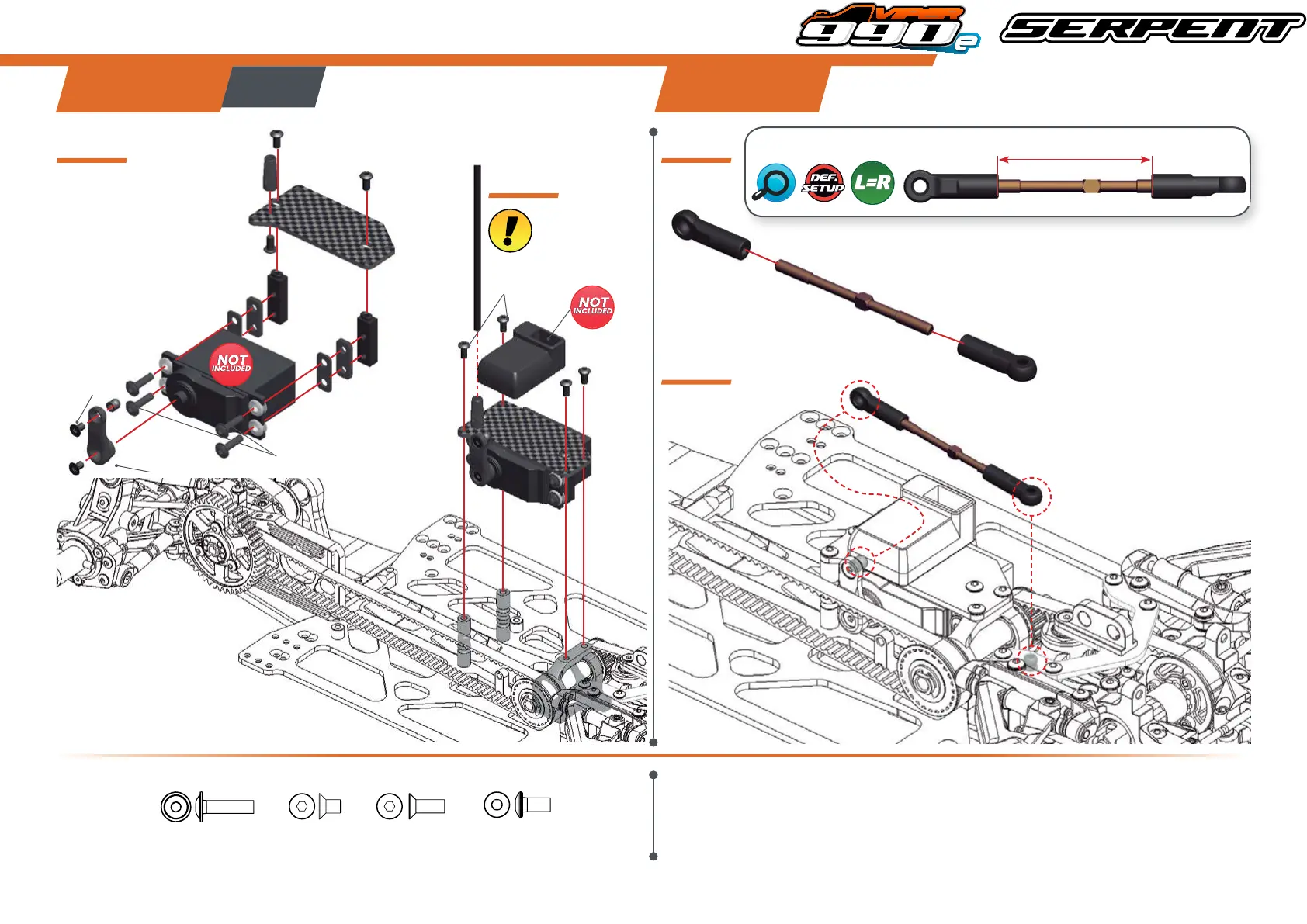

radio assembly
STEP 37 STEP 38
STEERINGTRACKRODLENGTH
35 mm
37.1 38.1
38.2
37.2
M3x6
M3x6
M3x12
Flanged
M3x6
M3x6
M3x12 Flanged
M3x5
M3x6
M3x8
M3x8M3x5
M3x6
Use double sided
tape to mount the
receiver to the
carbon bracket.
bag 12
