12

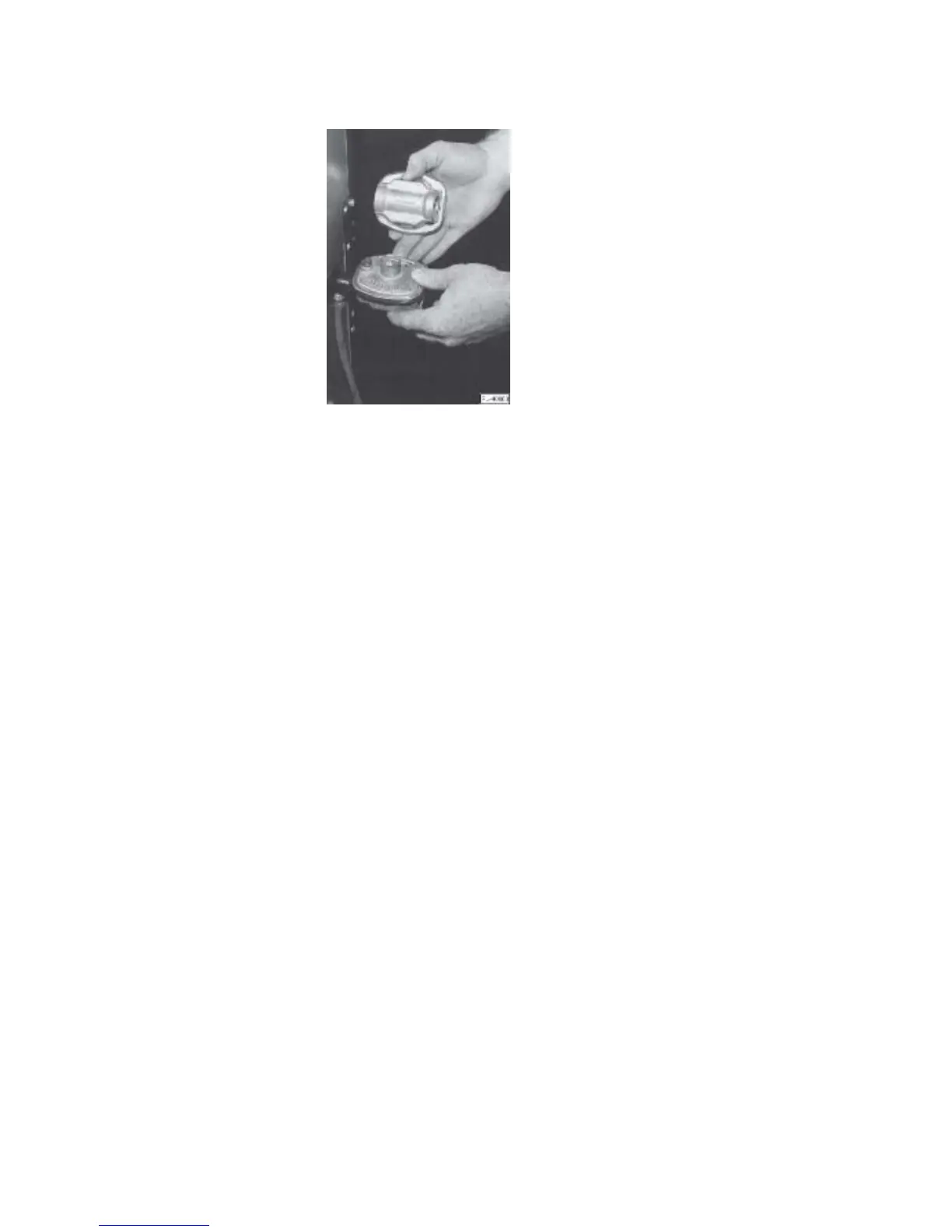

Fig. 13
The arrow on the regulator shows the direction of the gas flow. The pressure
regulator must be mounted horizontally to ensure proper preset outlet pressure. If
the regulator is installed in any other position, the outlet pressure must be reset for
proper operation.
A leak limiter is supplied with every regulator to allow excess gas pressure to
escape. Do not obstruct leak limiter on gas pressure regulator, as obstruction may
cause regulator to malfunction.
WARNING: PRIOR TO LIGHTING, CHECK ALL JOINTS IN THE GAS
SUPPLY LINE FOR LEAKS. USE SOAP AND WATER SOLUTION. DO NOT
USE AN OPEN FLAME.
After piping has been checked for leaks, all piping receiving gas should be fully purged to
remove air.
Before operation, verify thermocouple is securely seated in the safety valve. The
thermocouple should be tightened a
1
/4 turn past finger tight. DO NOT OVERTIGHTEN.
Over-tightening may damage the thermocouple or safety magnet.
TESTING THE GAS SUPPLY SYSTEM
When gas supply pressure exceeds
1
/2 psig (3.45 kPa), the range and its individual
shutoff valve must be disconnected from the gas supply piping system.
When gas supply pressure is 1/
2 psig(3.45kPa) or less, the range should be isolated
from the gas supply system by closing its individual manual shutoff valve until the
range is ready for start-up.
FLUE CONNECTIONS DO NOT obstruct the flow of flue gases from the flue located on
