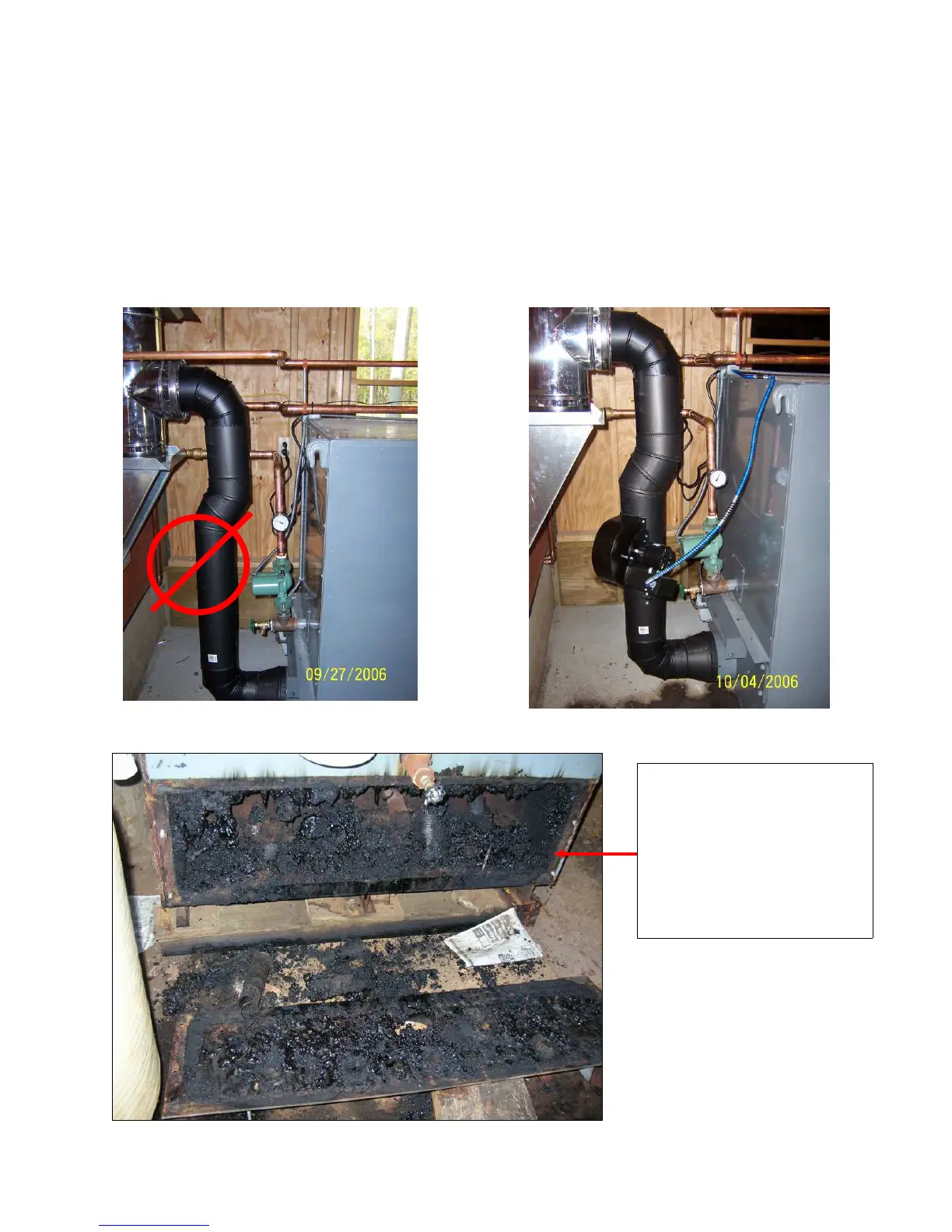

This chimney has three 90 degree bends plus two 45 degree bends, a total of 360
degrees, plus a 2 inch reduction all in single wall pipe. This will not draw properly, it
will need a draft inducer.
HOW NOT TO
THIS BOILER
WAS OPERATED
IN A CONSTANT
CONDENSING STATE
