Seton W-90E - WIRING AN INVERTER FOR BACKUP

WOOD BOILER INSTRUCTIONS Page 29 Copyright © 2011 Seton Wood Boilers all rights reserved
PLUMBING RADIANT SYSTEM

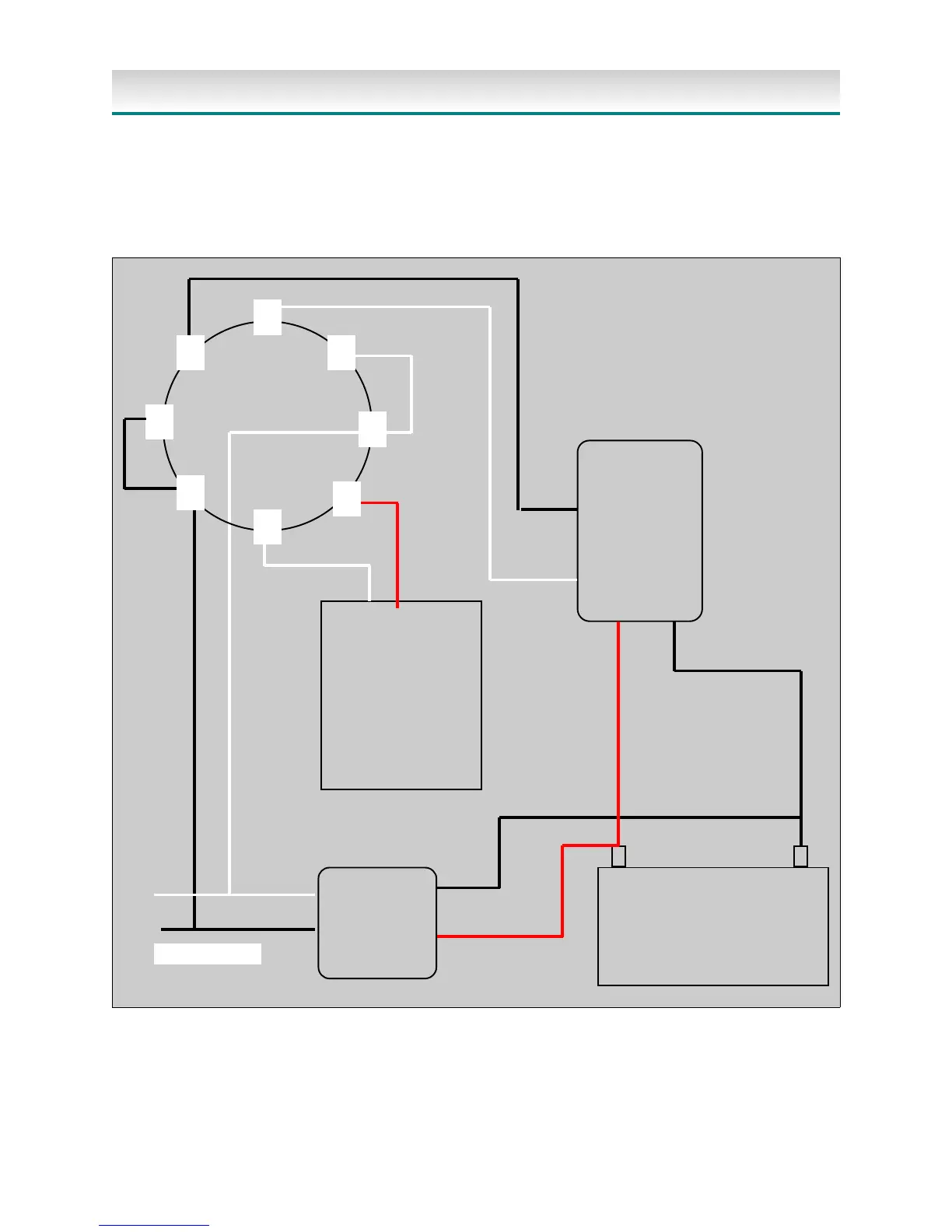

WIRING AN INVERTER FOR BACKUP
— +
DPDT RELAY
120 VOLT COIL
INVERTER
1000 WATTS
AUTOMATIC
CHARGER
BATTERY
BOILER
AND PUMPS
500 WATTS
120 VOLTS IN
1
2
3
4
5
6
7
8
