WOOD BOILER INSTRUCTIONS Page 30 Copyright © 2011 Seton Wood Boilers all rights reserved

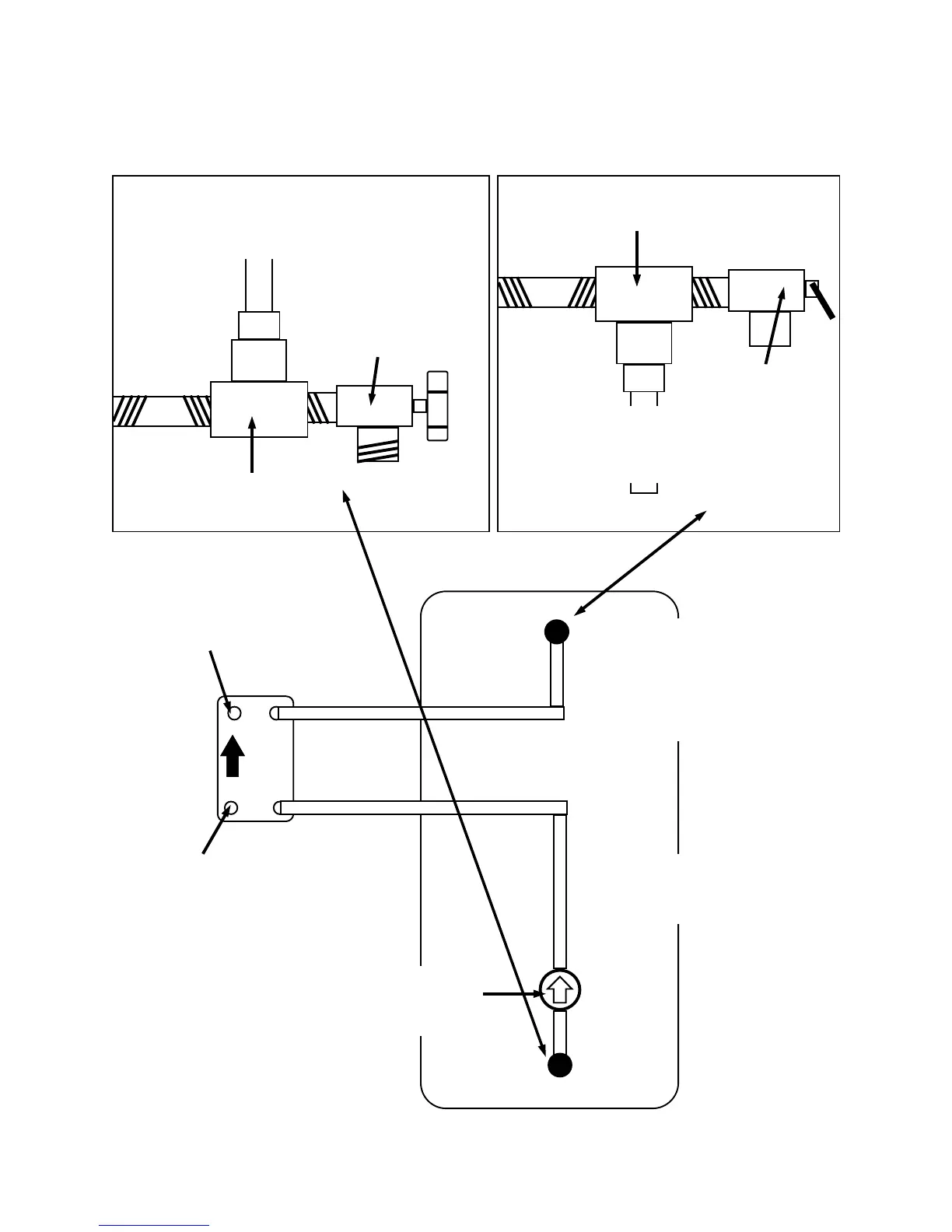

Remove pressure relief valve
and replace with a 3/4” brass
nipple, 3/4” brass tee.
PLUMBING WATER HEATER
POP-OFF
BRASS TEE
COPPER PIPE
TO TOP OF
HEAT EXCHANGER
FAUCET
BRASS TEE
COPPER PIPE
TO BOTTOM OF
HEAT EXCHANGER
VERY SMALL BRONZE
CIRCULATING PUMP
FROM
HEATING MANIFOLD
TO RETURN
MANIFOLD
USE LOWER WATER HEATER STAT
TO TURN PUMP ON AND OFF
