Seton W-90E - TAKAGI OPEN SYSTEM, TWO MANIFOLD W;STORAGE

To Next Page

To Previous Page

WOOD

BOILER

DOMESTIC OUT

TAKAGI

BOILER

Taco Differential Bypass Valve Part # 3196

This part needs to go between the supply

and return at the manifold after the pump.

SS TACO #0011

1", BRASS FLANGES

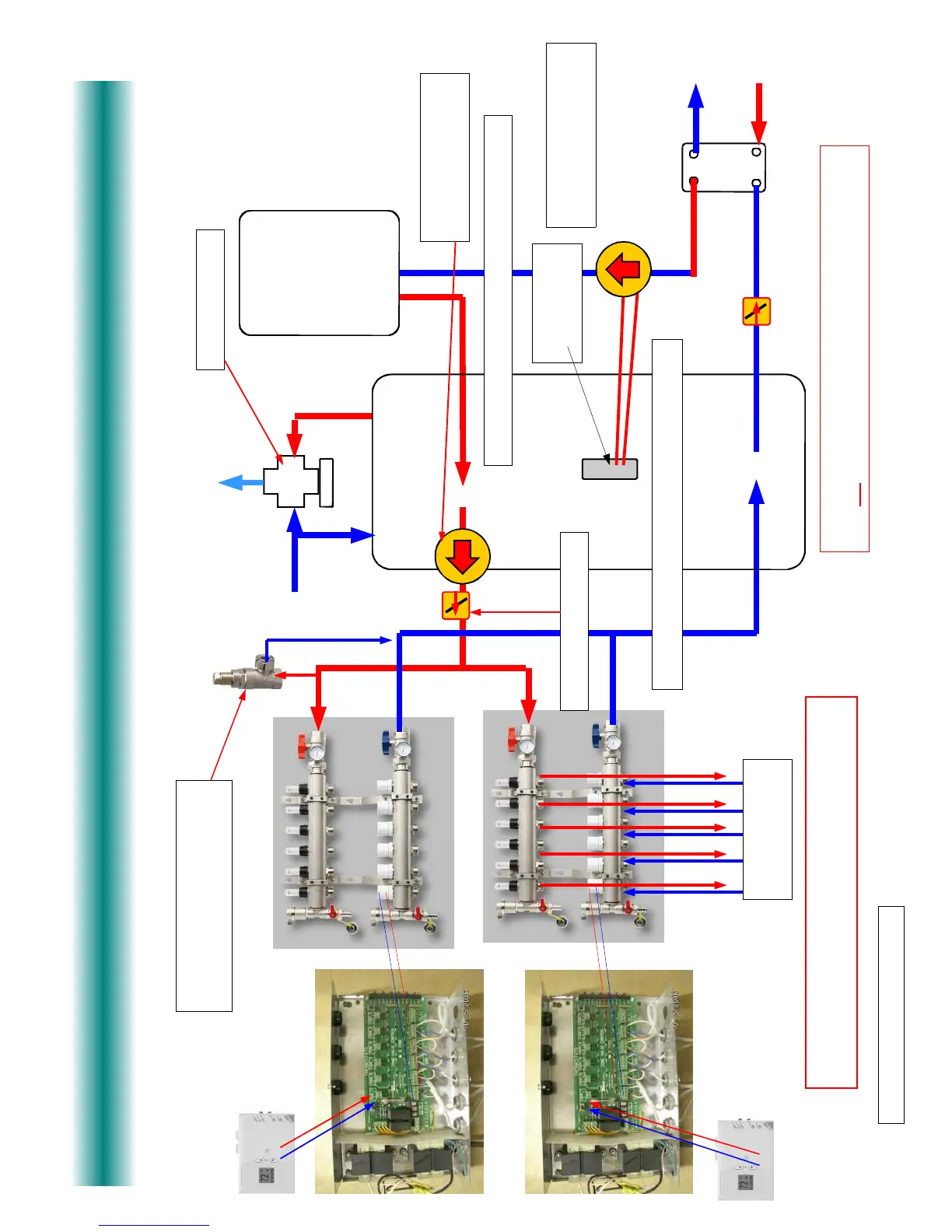

TAKAGI OPEN SYSTEM, TWO MANIFOLD W/STORAGE

STORAGE

WATER TANK

MIXING VALVE

TO AND FROM

RADIANT HEAT

Plumb from heater to tank with 3/4” copper or pex.

SS TACO #008

1" BRASS FLANGES

ALL PLUMBING MUST BE PEX OR COPPER OR BRASS

NO CAST IRON OR GALVANIZED OR STEEL

AQUASTAT

FOR 008

Plumb from heater to manifold with 1” copper or pex.

A THERMOSTAT ON THE CONTROL PANEL CAN

CONTROL AN ACTUATOR ON EITHER MANIFOLD

1 INSTALL TAKAGI Page 53

SWING CHECK VALVE

ADIANT

ESIGN

NSTITUTE

406

295

9902

Quality by Design

™
