Mechanical Installation
4.6 Installation of torque arms for shaft-mounted gear units
Do not strain torque arms during installation!
Parallel shaft
helical gear units
Helical-bevel gear
units
• Bushing with bearings on both ends → (1)
• Install connection end B as a mirror image of A

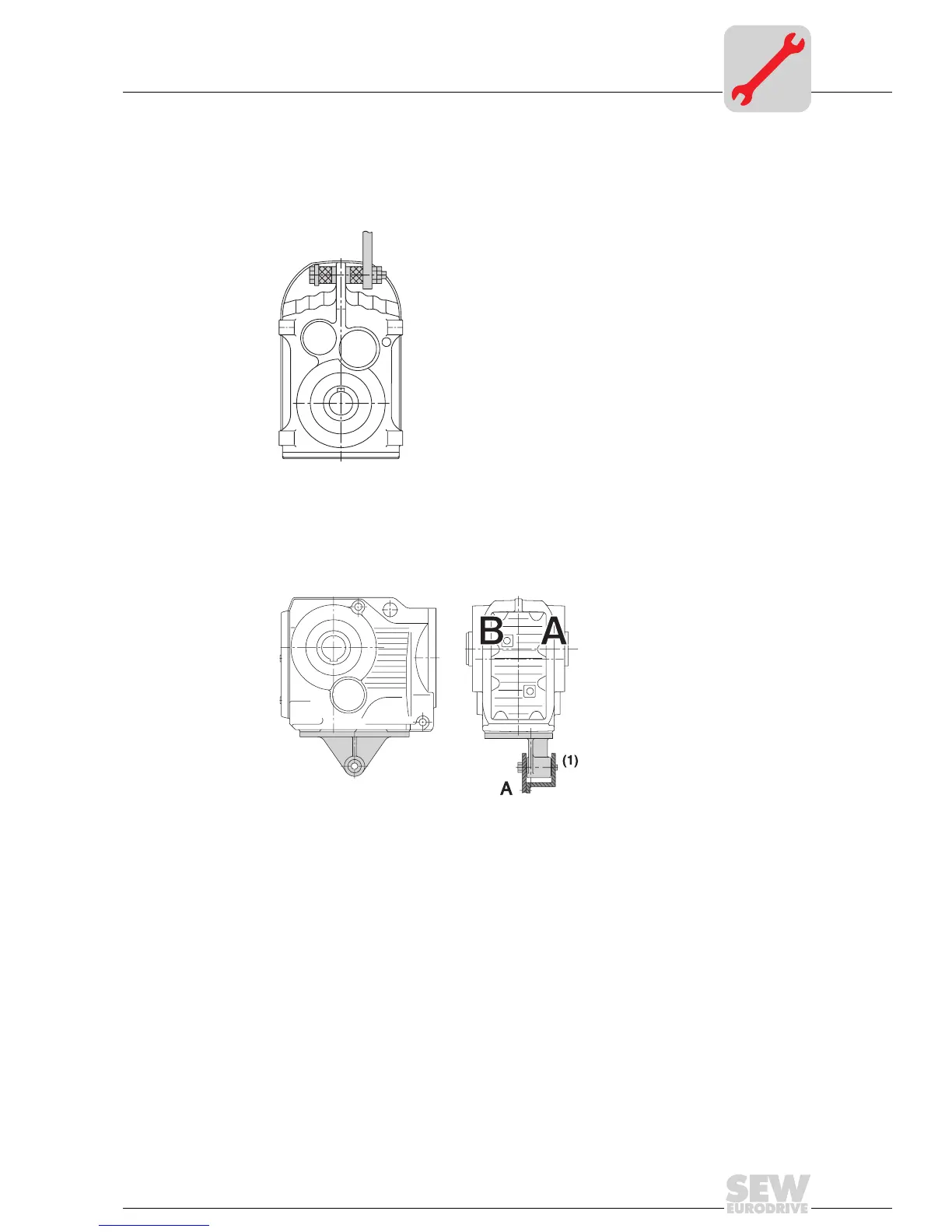

01029BXX
Fig. 7: Torque arm for parallel shaft gear units
01030CXX
Fig. 8: Torque arm for helical-bevel gear units
