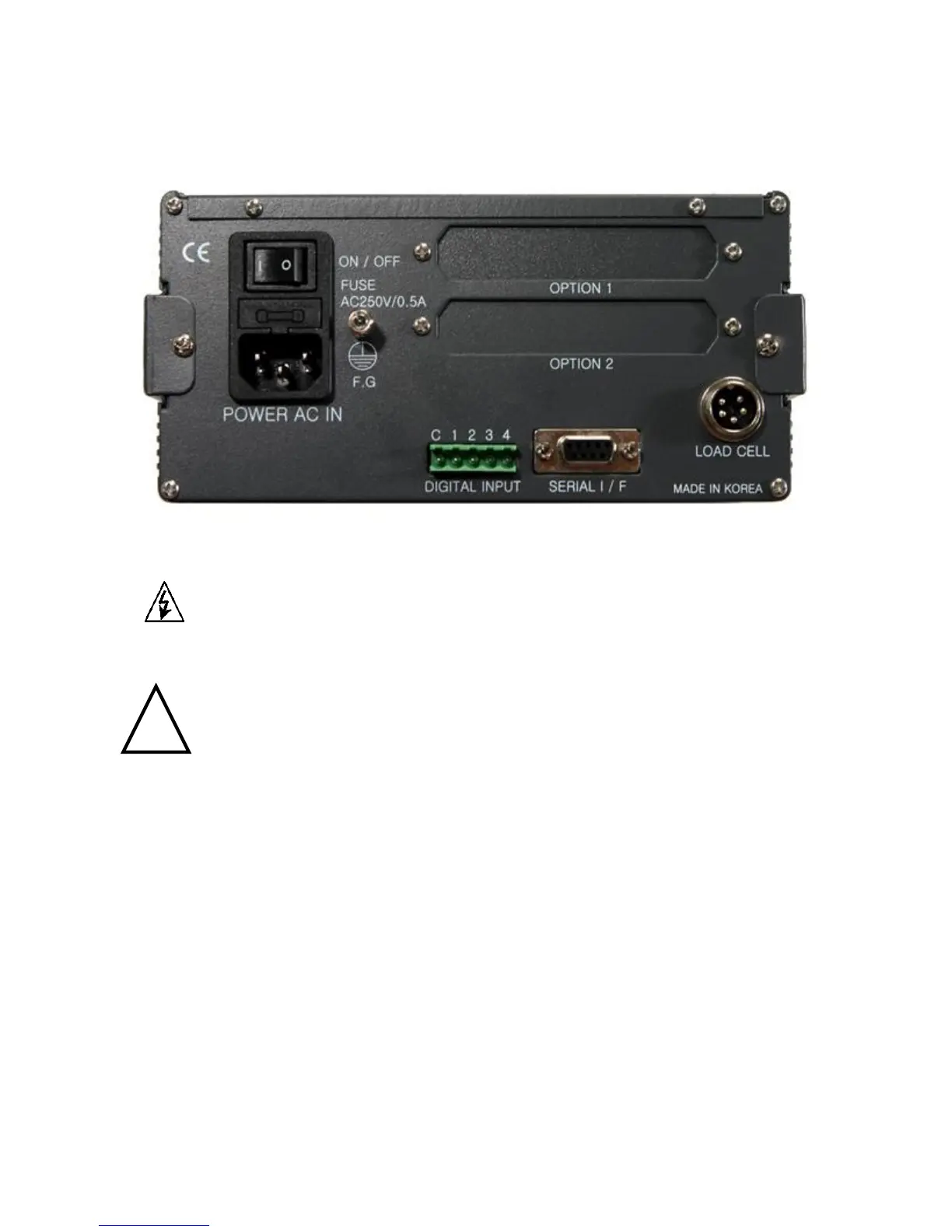

3-6. Rear Panel
① POWER AC IN
- Power switch : Power on/off switch.
- Fuse : AC250V / 0.5A , φ5.25 , 20mm.
- AC IN : Available Input AC 110V / 220V.
※ The standard power supply is AC 220V(Fixed when ex-warehouse), if you want to have AC
110V, please inform in advance.
② Option Card 1
③ Option Card 2
※Option Card Connector installed for Optional Interface or Output.
(Printer I/F, Analog out, RS-422/485, or RS-232C(two port)
④ LOAD CELL Connector (N16-05)
⑤ SERIAL I/F
“RS-232C” or “CURRENT LOOP”(9Pin, D-Type Female) are built-in as standard
⑥ External Input : External control input for wired remote control.
Refer to F-Function F11 to select desired function mode.
