SI 480E DIN SIZE WEIGHING CONTROLER

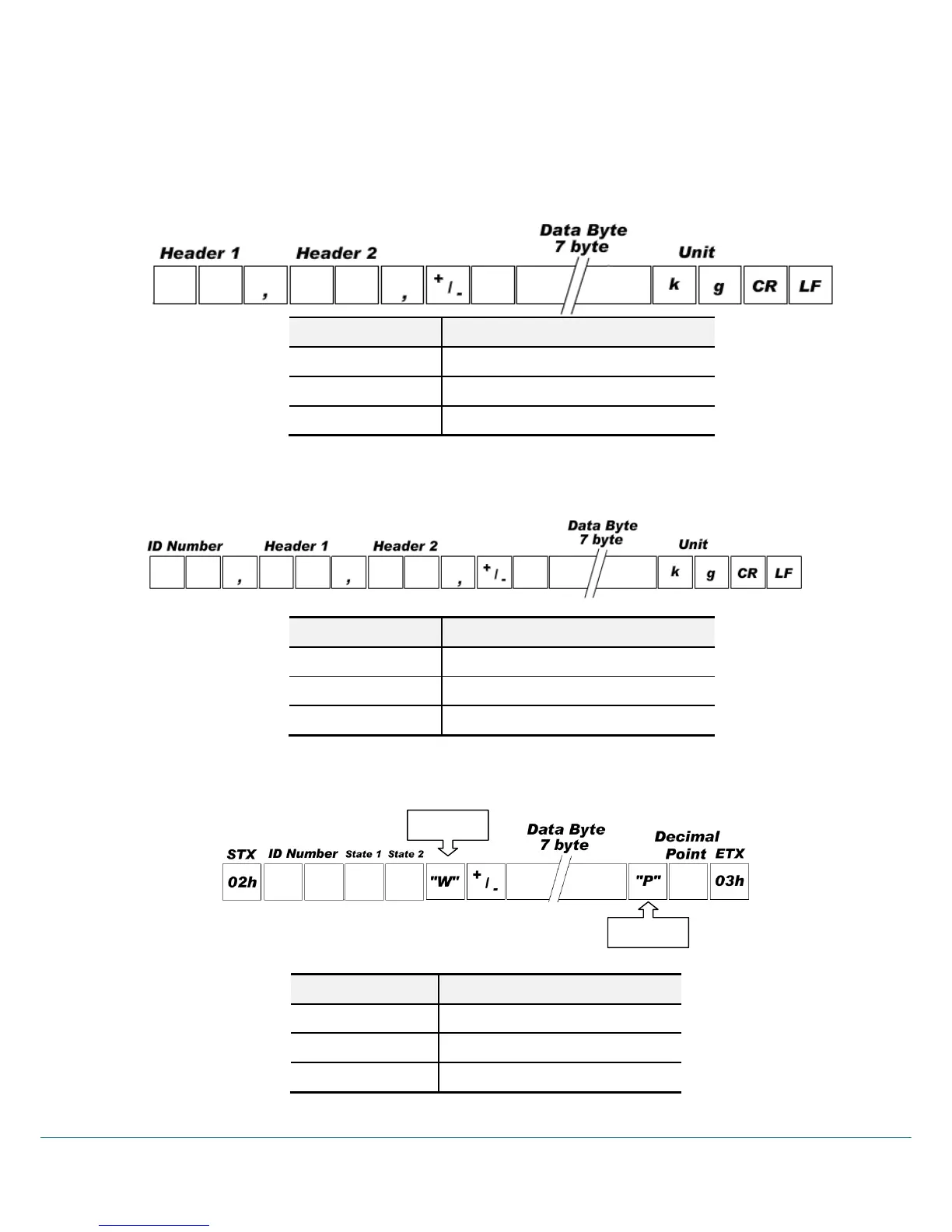

6-1-4. Data Format
1. Data Format1 : ID Number is not be transferred.(Refer “FUNCTION 37/F67-00”
setting)
Header1
Header2
OL : OVER LOAD
NT : NET-WEIGHT(Tare is not set)
ST : STEADY
GS : when setting TARE
US : UNSTEADY
2. Data Format2 : ID Number + Data Transference (Refer F-function 37-01, F18)
Header1
Header2
OL : OVER LOAD
NT : NET-WEIGHT(Tare is not set)
ST : STEADY
GS : when setting TARE
US : UNSTEADY
3. Data Format3 : ID Number + State (F37-03 setting)
Header1
Header2
O : OVER
G : Gross weight
S : STEADY
N : Net weight
U : UNSTABLE
Fixed byte
Fixed byte
