SFA SANICUBIC 2 PRO - Technical Data

22
UK

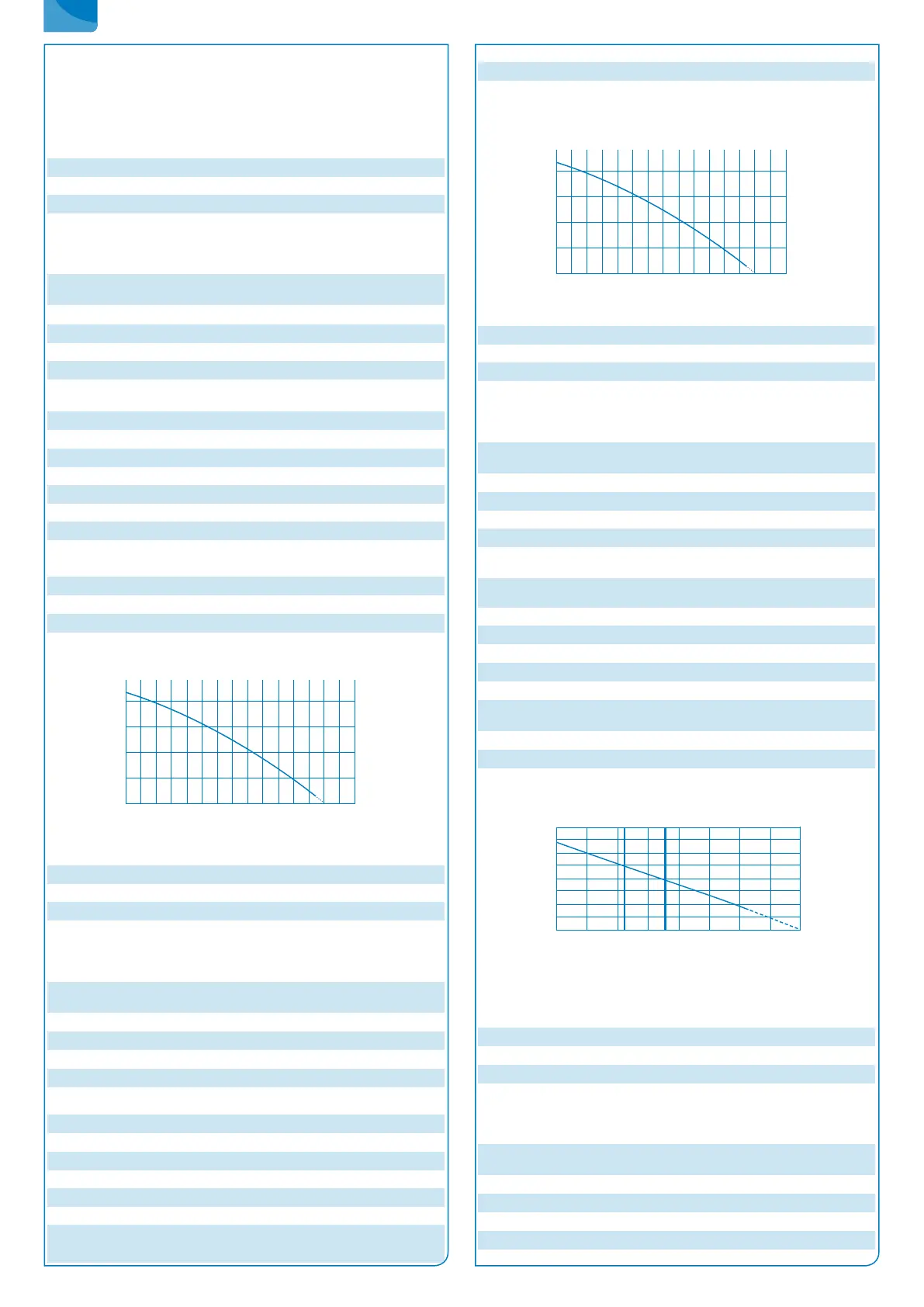

3.5 Technical data
Pumping station for blackwater (submersible for the SANICUBIC® 1 WP,
SANICUBIC® 2 Classic, SANICUBIC® 2 Pro, SANICUBIC® 2 XL versions).
SANICUBIC® 1 / SANICUBIC® 1 WP
Type of current Single-phase
Voltage 220-240V
Frequency 50/60 Hz
Oil bath cooled
Motor - Pump Thermal overload
protection
Class F insulation
Type of pump Shredding by
blade-plate
Motor power consumption (for one motor) 1,500 W
Maximum absorbed current 6 A
Cable station – control box 4 m - H07RN-F-4 G 1.5
Control box cable – socket 2.5 m - H05VV-F-3 G 1,5
Protection Station: SANICUBIC® 1: IP67
SANICUBIC® 1 WP: IP68
Control box: IPX4
Max. recommended height 11 m
Max. ow 12 m³/hour
Max. temperature of incoming wastewater 70°C (Max. 5 min.)
Tank volume 32 L
Usefull volume 10 L
Height of low inlets (from the ground) 140 mm
Gross Weight [KG] SANICUBIC® 1: 19.8
(including packaging and accessories) SANICUBIC® 1 WP: 26.7
Waste pipe Ø ext. 50 mm
Inlet
Ø ext. 40, 50, 100, 110 mm
Ventilation Ø ext. 50 mm
SANICUBIC® 1 flow curve; SANICUBIC® 1 WP
12
9
6
3
0
0 5 10 15
discharge height (m)
flow (m
3
/h)
SANICUBIC® 2 Classic / SANICUBIC® 2 Pro
Type of current Single-phase
Voltage 220-240V
Frequency 50/60 Hz
Motor - Pump
Oil bath cooled
Thermal overload
protection
Class F insulation
Type of pump Shredding by
blade-plate
Motor power consumption (for one motor) 1,500 W
Maximum absorbed current 13 A
Cable station – control box 4 m - H07RN-F-4 G 1.5
Control box cable – socket 2.5 m - H05VV-F-3 G 1,5
Protection Station: IP68
Control box: IPX4
Max. recommended height 11 m
Max. ow 12 m³/hour
Max. temperature of incoming wastewater 70°C (Max. 5 min.)
Tank volume 45 L
Usefull volume 17.5 L
Height of low inlets (from the ground) 140 mm
Gross Weight [KG] SANICUBIC® 2 Classic: 35.5
(including packaging and accessories) SANICUBIC® 2 Pro: 33.0
Waste pipe Ø ext. 50 mm
Inlet
Ø ext. 40, 50, 100, 110 mm
Ventilation Ø ext. 50 mm
SANICUBIC® 2 Classic flow curve; SANICUBIC® 2 Pro
12
9
6
3
0
0 5 10 15
discharge height (m)
flow (m
3
/h)
SANICUBIC® 2 XL
Type of current Single-phase
Voltage 220-240V
Frequency 50/60 Hz
Oil bath cooled
Motor - Pump Thermal overload
protection
Class F insulation
Type of pump Vortex Impeller
(clearance: 50 mm)
Motor power consumption (for one motor) 2,000 W
Maximum absorbed current 16 A
Cable station – control box 4 m - H07RN-F-4 G 1.5
Control box cable – socket 2.5 m - H05VV-F-3 G 1,5
Protection Station : IP68
Control box: IPX4
Max. recommended height 10 m (DN80)
7 m (DN100)
Max. ow 40 m³/hour
Max. temperature of incoming wastewater 70°C (Max. 5 min.)
Tank volume 120 L
Usefull volume 26 L
Gross Weight [KG] (including packaging and accessories) 101.0
Waste pipe
ND 100 (Ø ext. 110 mm)
or ND80 (Ø ext. 90 mm)
Inlet Ø ext. 40, 50, 100, 110 mm
Ventilation Ø ext. 50 mm
SANICUBIC ® 2 XL Single-phase discharge bend
16
14
12
10
8
6
4
2
0
0 5 10 15 20 25 30 35 40
discharge height (m) - Hf(Qv) Bend on XL, Fos, Cubic 1&2
flow (m
3
/h)
Qmini
DN 80
Qmini
DN 100
Self-cleaning speed limit: 0.7 m/s
SANICUBIC ® 2 XL Three-phase
Type of current Three-phase
Voltage 230-400V
Frequency 50/60 Hz
Motor - Pump
Oil bath cooled
Thermal overload
protection
Class F insulation
Type of pump Vortex Impeller
(clearance: 50 mm)
Motor power consumption (for one motor) 3,500 W
Maximum absorbed current 12 A
Cable station – control box 4 m - H07RN-F-4 G 1.5
Control box cable – socket
2.5 m - H05VV-F-5 G 2.5
