DESCRIPTION
3.1 General description
This device is a compact pumping station. SANICUBIC® 1 VX is a pumping
station specially developed for individual use (detached house or small
commercial premises). SANICUBIC® 2 VX is a pumping station specially
developed for individual, commercial and small community use (small
buildings, shops, public places).
3.2 Scope of supply
Depending on the model, the following components are provided:
• Sump tank with 1 or 2 pumps and 3 level sensors
• Wired remote control box
• Wired alarm unit
• Check valves
• Mounting kit (screws, pegs)
• Connecting sleeves for inlet, discharge and ventilation piping
• Clamps for the connecting sleeves

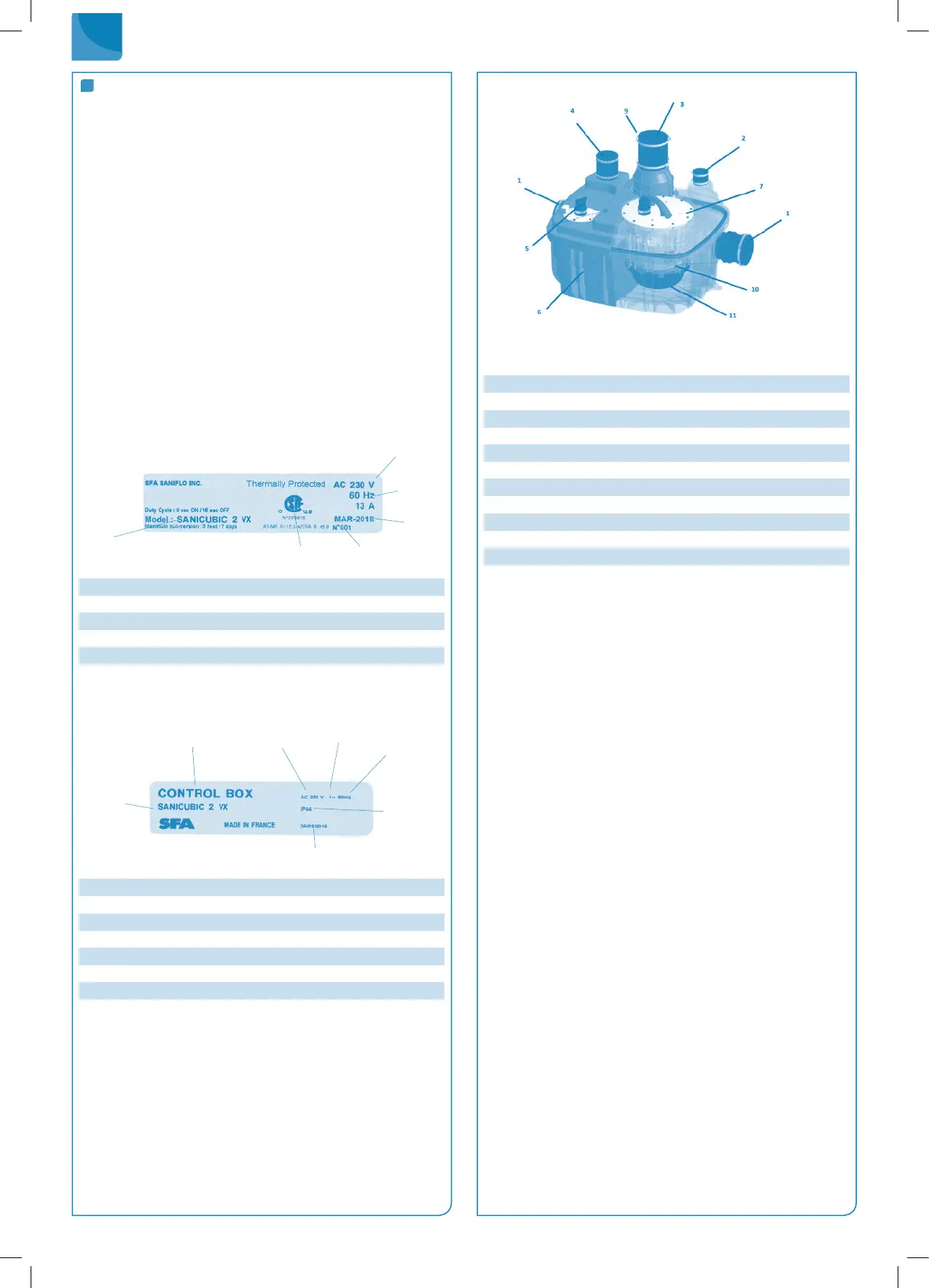

3.3 Rating plate
Examples:
Pumping station
1
2
3
4
5
6
1 Name of the lifting station
2 Power supply
3 Frequency
4 Date of production
5 Identication number
6 Type of certication
Control box
1
2
3
4
7
6
5
1 Name of the pumping station
2 Name of the control box
3 Power supply
4 Phase type
5 Frequency
6 Protection index
7 Date of production
US/CAN
3.4 Design and operating mode
Table 2: SANICUBIC® 1 VX
1 Inlet Ø 1 1/2’’ or 4’’
2 Inlet Ø 1 1/2’’
3 Waste pipe Ø 2 or 4’’
4 Ventilation opening Ø 2 1/2’’
5 Level sensor (dip tube)
6 Tank
7 Access panel
8 Control opening
9 Built-in check valve
10 Engine-pump assembly
11 Vortex impeller
The pumping station is equipped with several horizontal and vertical inlet
openings for 1 1/2’’ or 4’’ outside diameter piping (1) and 1 1/2’’ outside
diameter piping (2). The engine-pump assembly (10) carries the pumped
uid in the vertical discharge piping with an inside diameter of 2’’ or 4’’.
The ventilation duct (4) allows the tank to always remain at atmospheric
pressure.
Operating mode:
Euent enters the pumping station through the horizontal and vertical inlet
openings (1) (2). They accumulate in a gas-tight, smell-proof and watertight
plastic tank (6). Controlled by a level sensor (5) and a control box, euents
are carried away by vortex impeller (11) and automatically pumped, when
they reach a certain level in the tank, by one or two pumps, depending on
the model, (10) above the back-ow level to ow into the discharge line.
- SANICUBIC® 1 VX contains one pump with a vortex action.
- SANICUBIC® 2 VX contains two independant pumps, each with a clearance
of 50 mm. Both pumps operate each in turn, alternately. In case of
abnormal operation, both engines run simultaneously (or if one vortex
pump fails, the other takes over) .
Level sensor / Dip tube:
• 2 Long dip tubes
During normal operation, as soon as the euents reach the long tube’s
actuation level in the tank, the pumping system switches on.
• Short dip tube
During abnormal operation, if the euents reach the highest level in the
tank (short tube), an audible and visual alarm system is activated and the
pumping system switches on (if it is not faulty).
