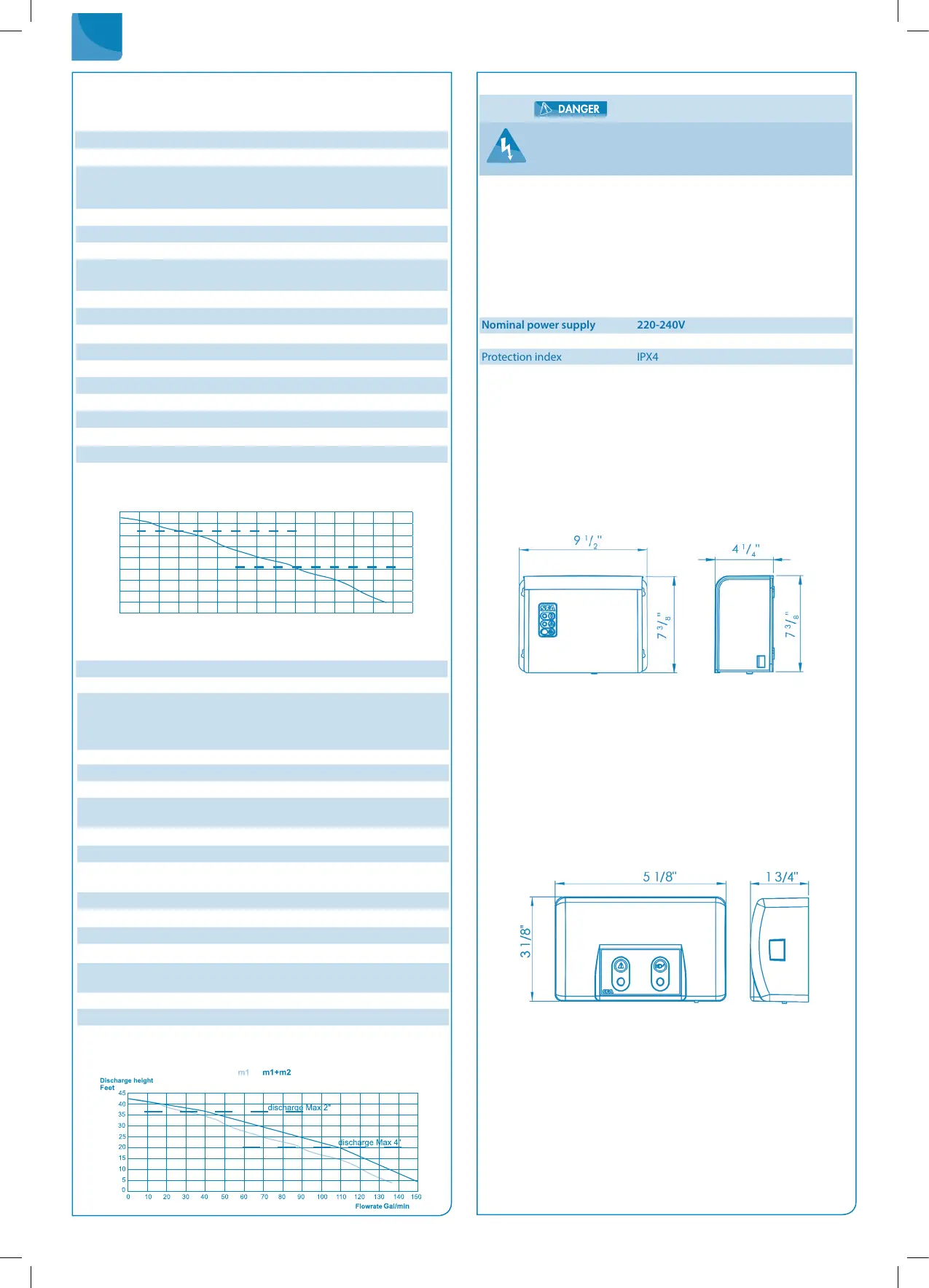

3.5 Technical data
Submersible pumping stations for blackwater
SANICUBIC® 1 VX
Type of current Single-phase
Power/Electrical information 220-240V/ 60 Hz / 12A/ 1,5 HP
Motor - Pump Oil bath cooled
Thermal overload protection
Class F insulation
Type of pump Vortex Impeller
Cable station – control box 13 feet - H07RN-F-4 G 1.5
Control box cable – socket 8 feet-14/3 AWG SJOOW
Protection Station: IP68
Control box: IPX4
Max. recommended height 36 Ft (2’’) / 20 Ft (4’’)
Shut o head 43 ft
Max. ow 125 gpm (2’’) / 137 gpm (4’’)
Max. temperature of incoming wastewater 158 °F (Max. 5 min.)
Tank volume 15.9 gallons
Usefull volume 5.5 gallons
Height of low inlets (from the ground) 6 1/8 ‘’
Gross Weight [lbs] 68 lbs
Waste pipe 2’’ or 4’’
Inlet Ø 1 1/2’’ or 4’’
Ventilation 2 1/2’’
Flow curve
Discharge height
Flowrate
Feet
Gal/min
0
0
5
10
15
20
25
30
35
40
45
10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
discharge Max 2"
discharge Max 4"
SANICUBIC® 2 VX
Type of current Single-phase
Power/Electrical information 220-240V/ 60Hz/ 2 x12A / 2 x1,5 HP
Motor - Pump Oil bath cooled
Thermal overload
protection
Class F insulation
Type of pump Vortex Impeller
Cable station – control box 13 feet - H07RN-F-4 G 1.5
Control box cable – socket 8 feet-12/3 AWG SJOOW
Protection Station: IP68
Control box: IPX4
Max. recommended height 36 Ft (2’’) / 20 Ft (4’’)
Shut o head 43 ft
Max. ow
*Both motors in operation 145 gpm (2’’) or 250 gpm (4’’)
Max. temperature of incoming wastewater 158 °F (Max. 5 min.)
Tank volume 31.7 gallons
Usefull volume 6.8 gallons
Height of low inlets (from the ground) 7 1/2’’
Gross Weight [lbs]
(including packaging and accessories) : 223 lbs
Waste pipe 2’’ or 4’’
Inlet Ø 1 1/2’’ or 4’’
Ventilation 2 1/2’’
Volume units of measurement : Gal (US)/min
Flow curve
3.6 Control box
Submersion of the control device
Risk of death by electric shock
w Only use the control device in rooms safe from oods
SANICUBIC® VX remote control box
• Pump control and monitoring cabinet integrated into a compact plastic housing
• For 1 or 2 pumps
• Option of forced mode
3.6.1 Electrical characteristics
Table 3: Electrical characteristics of the control box
Parameter Value
Nominal power supply 220-240V
Network frequency 60 Hz
Protection index IPX4
3.6.2 Technical characteristics of the detection device
Analog level sensor:
• Input voltage 0 - 5 V
Process outputs:
• One potential-free signalling output (250 V, 16 A) NO Contact
• One signalling output for the wired alarm unit that comes with the device
(except SANICUBIC® 2 VX): 5V, 50mA
3.6.3 Dimensions of the remote control box
3.7 Alarm unit
3.7.1 Technical characteristics of the alarm device
SANICUBIC® VX alarm unit:
Wired alarm unit
16’’ cable
Audio and visual information
Protection index: IP20
3.7.2 Dimensions of the remote alarm unit
3.7.3 Option of connection to an external alarm
Option of externalizing the alarm signal (depending on the model). Dry
contact (no voltage) NO (normally open) operated by a max. 250V/16A relay.
The terminals can be connected to a powered system.
This contact closes as soon as the station is in alarm mode (except in the case
of area alarm) and remains closed as long as the alarm sounds.
