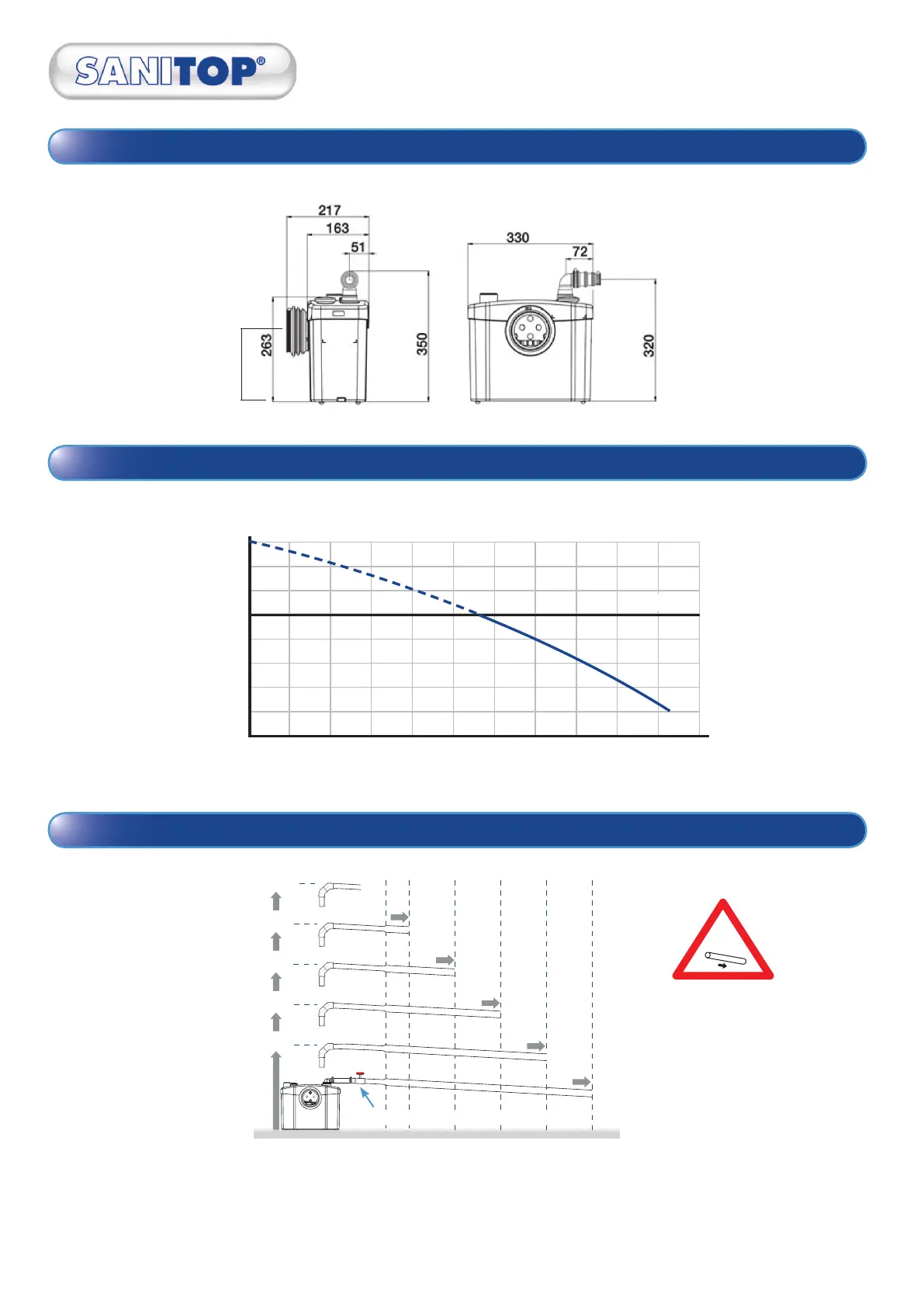

3. Dimensions and overall measurements
OUTPUT (litres/min)
HEIGHT (m)
8
7
6
5
4
3
2
1
0
0 20 40 60 80 100
EN12050-3
5m max
4m
3m
2m
1m
100806040
20
10 metres
All elbows must
be 2 x 45˚
4. Performance curve
USE ONLY Ø 20MM PRESSURE PIPE FOR VERTICAL LIFT
5. Vertical and horizontal pumping parameters
Following vertical lift, increase discharge pipe diameter by one size on the Horizontal run to Sewer or vent connection.
N.B. VERTICAL LIFT MUST PRECEDE HORIZONTAL RUN
Install Isolation Valve at beginning of pipe run
All horizontal
pipework requires a
minimum of 1:100 fall
1:100
180
