SSG 579-585 • 9.801-193.0 • Rev. 1/13a
OPERATOR’S MANUAL
PRESSURE WASHER
6

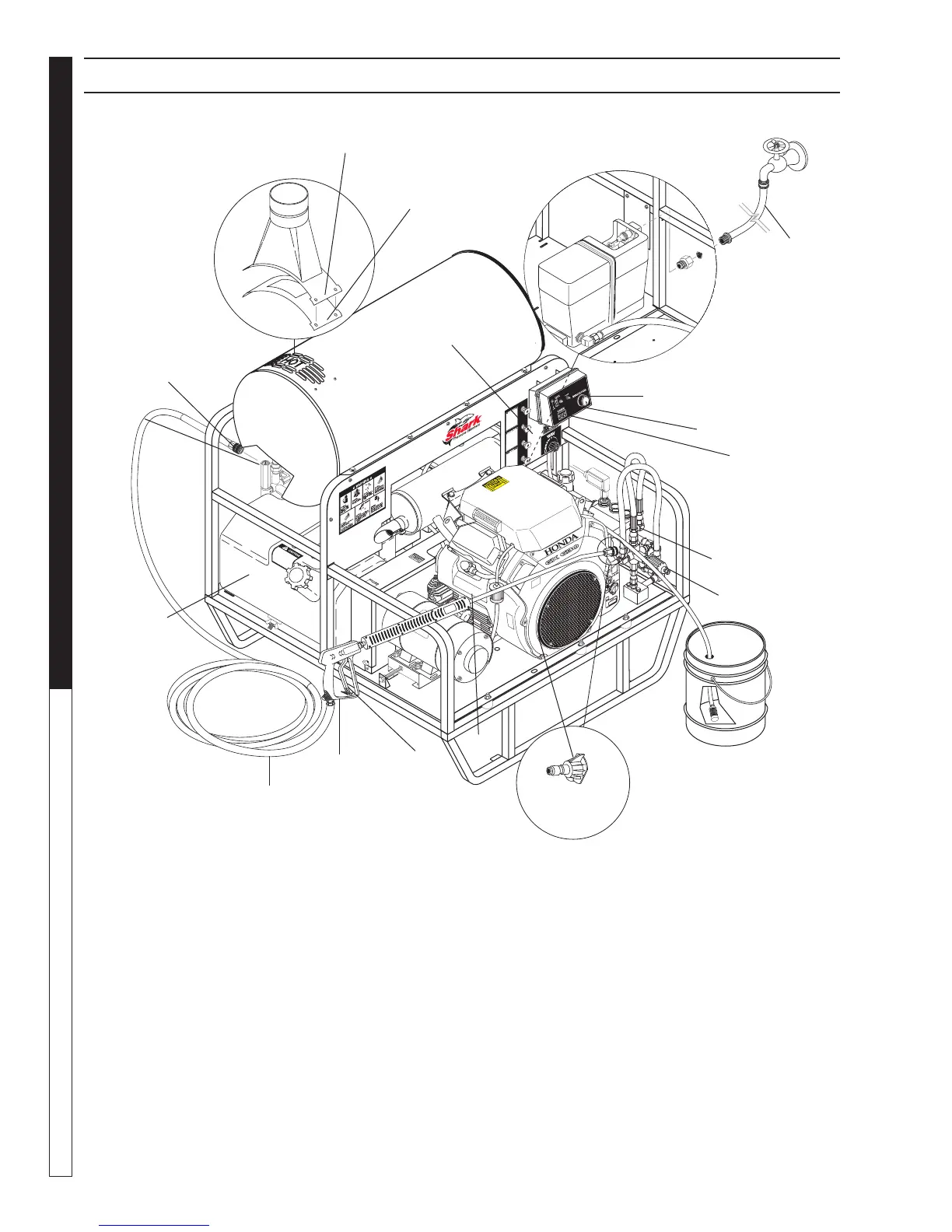

COMPONENT IDENTIFICATION SMALL
Pump — Delivers a specific gpm to the high pressure
nozzle which develops pressure.
Starter Grip— Used for starting the engine
manually.
Spray Gun — Controls the application of water and
detergent onto cleaning surface with trigger device.
Includes safety latch.
Unloader Valve— Safety device which allows
pressure to be released when spray gun is closed.
High Pressure Hose — Connect one end to wa-
ter pump discharge nipple and the other end to
spray gun.
Adjustable Thermostat — Safety control which
prevents temperatures from going above adjustable
setting.
Wand — Must be connected to the spray gun.
NOTE: If trigger on spray gun is released for more
than 2 minutes, warm water will discharge from pump
protector onto floor. This system prevents internal
pump damage.
NOTE: If flue adapter is installed, the burner assembly
air adjustment must be adjusted.
Outlet
High
Pressure
Hose
22mm
Coupling
Wand
Spray Gun
Trigger
Power
Nozzle
Burner Fuel
Tank
Water
Supply Hose
(not included)
Flue Adapter
Optional 7-10049
Insulation Gasket
Optional 7-01471
Burner
Switch
Hour Meter
Adjustable
Thermostat
Starter Grip
Unloader Valve
Detergent
Valve
Pump
