SSG 579-585 • 9.801-193.0 • Rev. 1/13a
7
PRESSURE WASHER
OPERATOR’S MANUAL
Cold
Water
Source
Garden
Hose
98011930-6
98011930-3

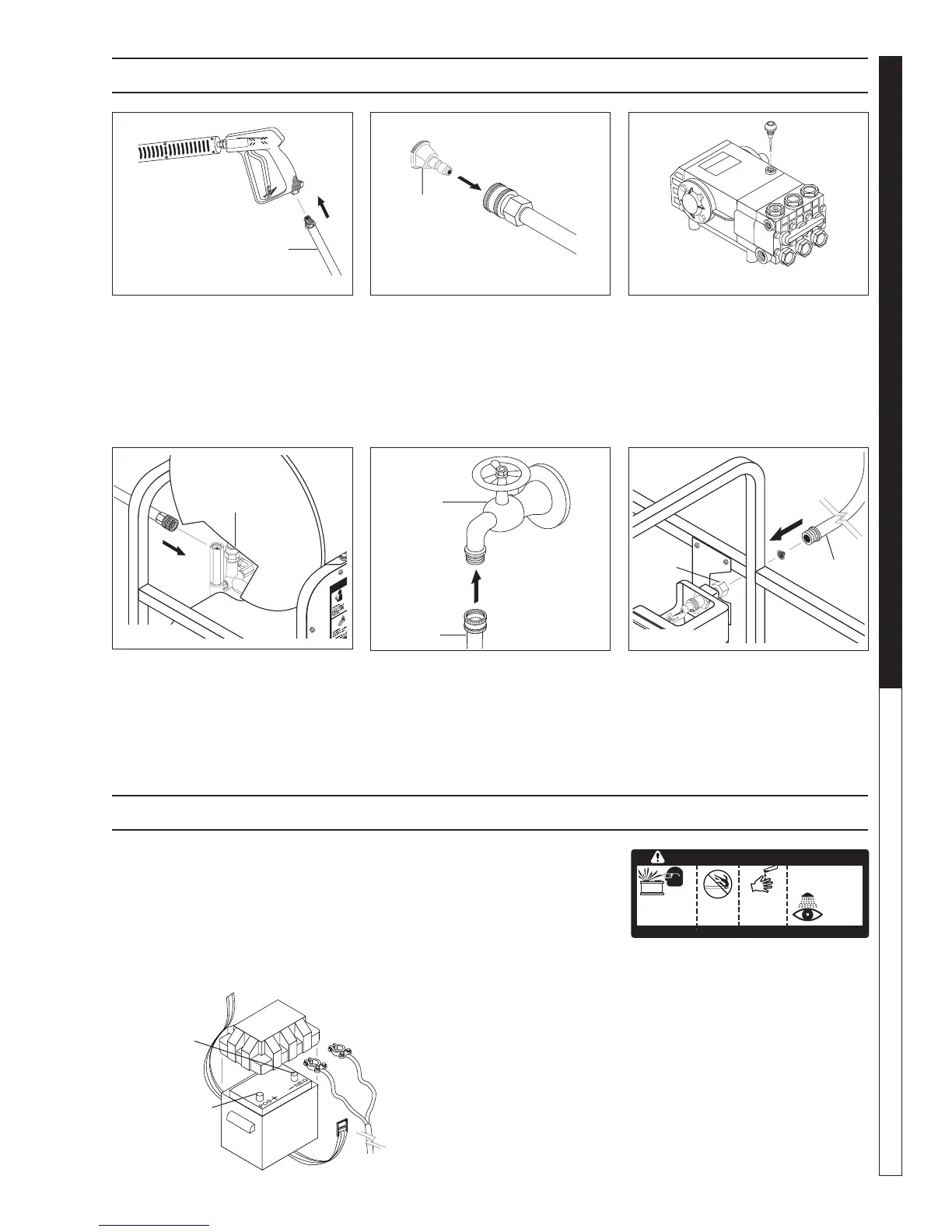

ASSEMBLY INSTRUCTIONS
STEP 1: Attach the high pressure
hose to the spray gun by threading
twist connect onto spray gun inlet.
STEP 3: Remove shipping cap
and install oil dipstick (Depending
on type of shipping, dipstick may
already be installed). Check pump
oil level by using dipstick or observe
oil level in oil window (if equipped).
Use 30 wt. non detergent oil.
STEP 5: Connect garden hose to
the cold water source.
STEP 2: Remove Wand end and first
place the o-ring followed by the high
pressure nozzle as shown. Replace
end of wand.
STEP 6: Check inlet filters, remove
debris, then connect the garden
hose to pump water inlet. CAUTION:
Do not run the pump without wa-
ter or pump damage will result.
Spray
Gun
High Pressure
Hose
Wand
High Pressure
Nozzle
STEP 4: Connect the high pressure
hose to the pump discharge fitting.
Thread twist connect to discharge
fitting by turning clockwise.
98011930-5
Water
Inlet
Garden
Hose
BATTERY INSTALLATION
Local purchase of battery will be the responsibility of the owner, except
when the machine is purchased with a factory installed battery option
(8.904-051.0). Automotive type 12 Volt Group 24 battery is recommended
for placement within the weather resistant box. Follow safety and instal-
lation instructions furnished with the battery.
Red Cable is attached to battery (+) positive terminal, black cable is
connected to battery (-) negative terminal.
SHIELD
EYES
EXPLOSIVE
GASES
CAN CAUSE
BLINDNESS OR INJURY
NO
SPARKS
FLAMES
SMOKING
SULFURIC
ACID
CAN CAUSE
BLINDNESS OR
SEVERE BURNS
FLUSH EYES
IMMEDIATELY
WITH WATER
GET
MEDICAL
HELP
FAST
KEEP OUT OF THE REACH OF CHILDREN. DO NOT TIP. KEEP VENT CAPS TIGHT AND LEVEL.
DANGER
/
POISON
Black - Negative
Terminal
Red + Positive
Terminal
Pump
Discharge
To Next Page
