190TW8 TV
Mechanical Instructions

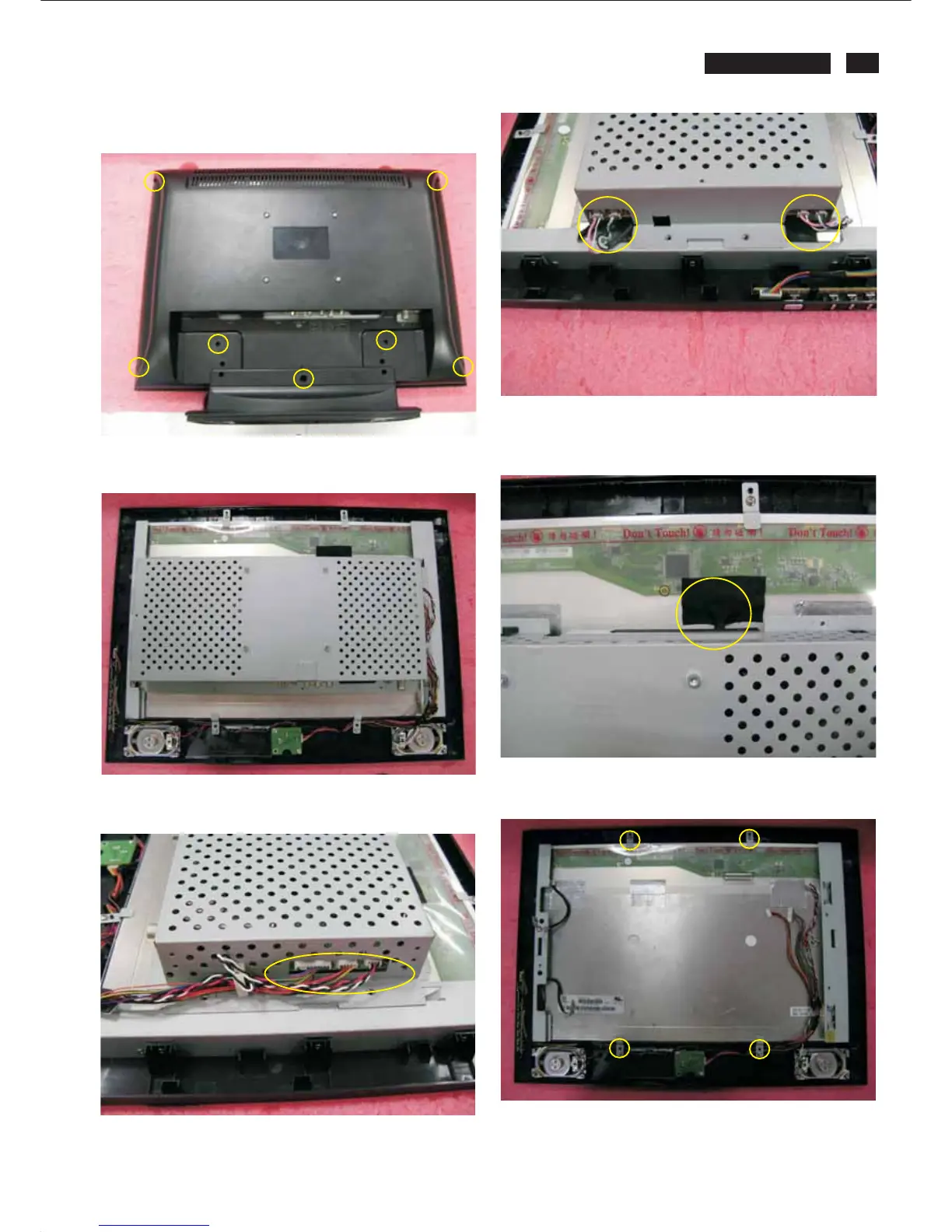

DISASSEMBLY PROCESS
Fig. 1
Fig. 2
2.Take off rear cover.
Fig. 3
3. Disconnect the cables.
1. Lay down LCD TV, all tools prepared, remove 7pcs screws
from rear cover.
Fig. 4
4. Disconnect the lamp cables.
Fig. 5
5. Disconnect the LVDs cable, and take off PCB shielding.
Fig. 6
6. Remove 4pcs screws from top and down side panel.
