Sharp 190TW8FB - Page 15

15
190TW8 TV

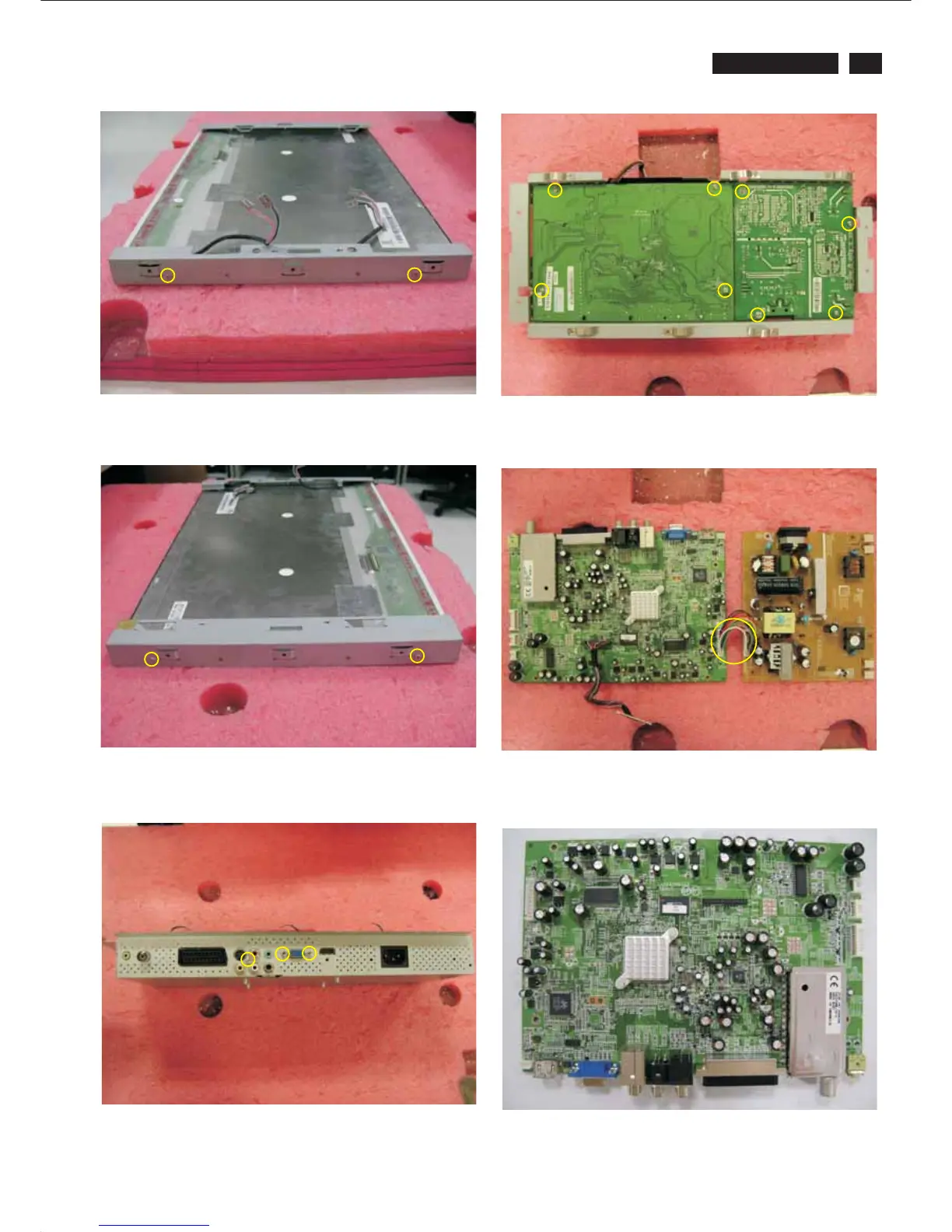

Fig 16
16. Remove 8pcs screws from Main/B and Power/B.
Fig 17
17. Disconnect Main/B and Power/B.
Fig 18
18. The Main/B.
Mechanical Instructions
Fig.13
13. Remove 2pcs screws from left side of panel bracket.
Fig 14
14. Remove 2pcs screws from right side of bracket.
Fig 15
15. Remove 3pcs screw screws from connector.
