Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
32U-S600
32U-S710
45
PICTURE TUBE
★ MARK: SPARE PARTS-DELIVERY SECTION
' MARK: X-RAY RELATED PARTS
PARTS LIST
PARTS REPLACEMENT
Replacement parts which have these special safety characteristics iden-
tified in this manual ; electrical components having such features are
identified by å and shaded areas in the Replacement Parts Lists and
Schematic Diagrams. The use of a substitute replacement part which
does no have the same safety characteristic as the factory recom-
mended replacement parts shown in this service manual may create
shock, fire or other hazards.
"HOW TO ORDER REPLACEMENT PARTS"
To have your order filled promptly and correctly, please furnish the fol-
lowing informations.
1. MODEL NUMBER 2. REF. NO.
3. PART NO. 4. DESCRIPTION
in USA: Contact your nearest SHARP Parts Distributor to order. For
location of SHARP Parts Distributor, Please call Toll-Free; 1-
800-BE-SHARP
Ref. No. Part No. ★ Description Code
32U-S600

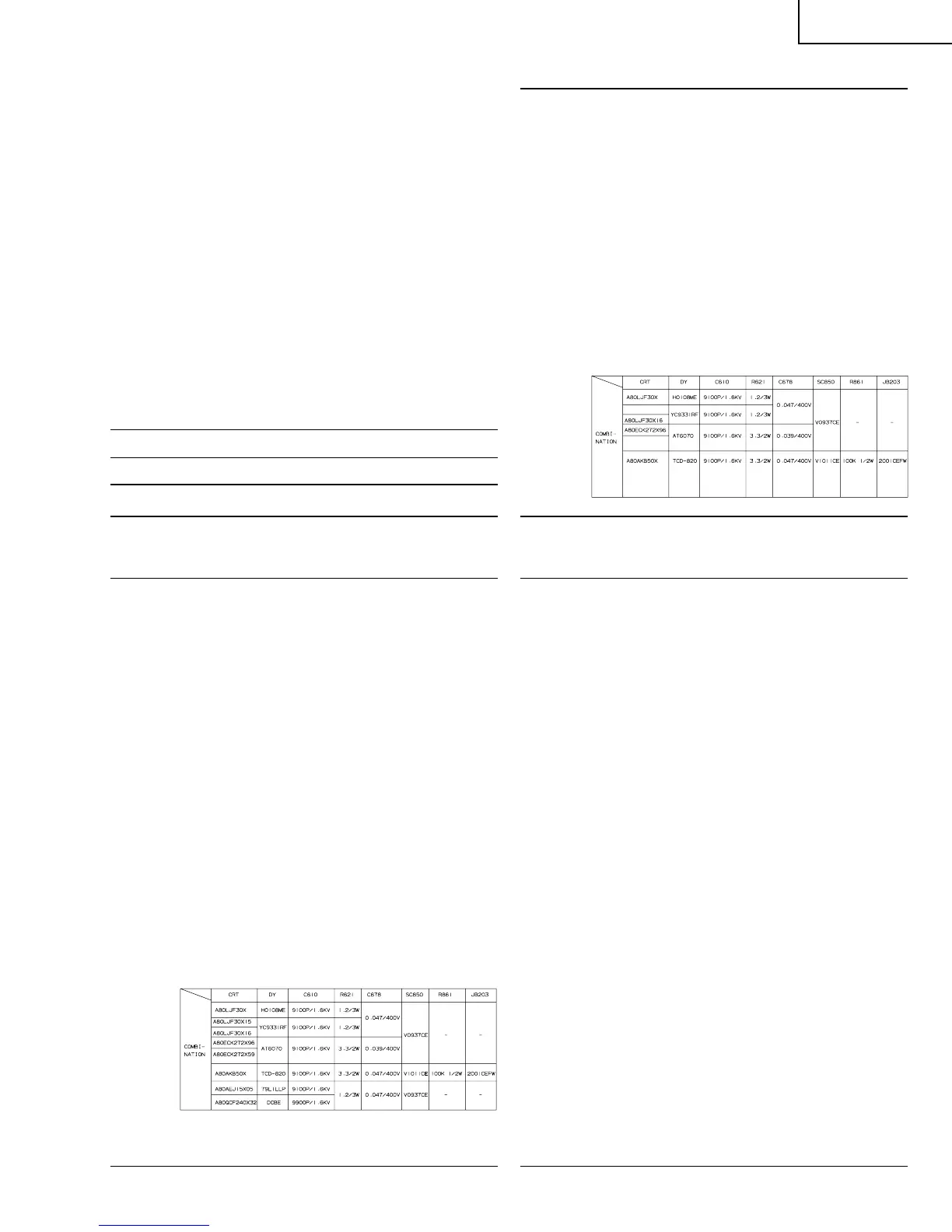

'åV101 VB80LJF3015~S X Picture Tube CT
or
VB80LJF30X/~S
or
VB80JUA061X~S
or
VB80LJF3016~S
or
VB80ECK272X1E
or
VB80LAKB50X/~S
or
VB80ECK272X2E
or
VB80QCF240X32
or
VB80AEJ15X/1E
å L703 RCiLG0121GJZZ X Degaussing Coil AU
or
RCiLGA028WJZZ
or
RCiLG0051MEZZ
or
RCiLG0118GJZZ
LHLDW0102GJKZ X Wire Holder, x5 AC
MSPRT0002MEZZ X Spring AE
å QEARC3102MEZZ X Grounding Strap AG
32U-S600
PWB-A DUNTKA526WED2 – MAIN Unit —
PWB-B DUNTKA527WEB8 – CRT Unit —
PWB-C DUNTKA528WEA6 – AV Unit —
PWB-R DUNTKA533WEA0 – P-IN-P Unit —
PWB-S DUNTKB224WEA2 – MTS MODULE Unit —
32U-S710
PWB-A DUNTKA526WED7 – MAIN Unit —
PWB-B DUNTKA527WEC0 – CRT Unit —
PWB-C DUNTKA602WEA1 – AV Unit —
PWB-K DUNTKB223WEA0 – 2-TUNER Unit —
PWB-R DUNTKA533WEA0 – P-IN-P Unit —
PWB-S DUNTKB224WEA1 – MTS MODULE Unit —
PRINTED WIRING BOARD ASSEMBLIES
(NOT REPLACEMENT ITEM)
32U-S710
'åV101 VB80LJF3016~S X Picture Tube CT
or
VB80LJF30X/~S
or
VB80ECK272X1E
or
VB80AKB50X/~S
å L703 RCiLG0121GJZZ X Degaussing Coil AU
or
RCiLGA028WJZZ
or
RCiLG0051MEZZ
or
RCiLG0118GJZZ
LHLDW0102GJKZ X Wire Holder, x5 AC
MSPRT0002MEZZ X Spring AE
QCNW-0162GJZZ X Coating Earth AC
å QEARC3102MEZZ X Grounding Strap AG
To Next Page
