Sharp 32U-S600 - Miscellaneous Parts; Supplied Accessories; Cabinet Parts; Packing Parts

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
32U-S600
32U-S710
58
MISCELLANEOUS PARTS
å ACC701 QACCD3065CESA J AC Cord AN
SP1 VSP1206PB648A X Speaker(L), 8 ohm AN
or
VSP1206PB598A
SP2 VSP1206PB648A X Speaker(R), 8 ohm AN
or
VSP1206PB598A
LHLDFA002WJZZ X Wire Holder AB
LHLDK0014PEZZ R AC Cord Holder AD
LHLDW1002PEZZ R Wire Holder, x3 AB
LHLDW1003PEZZ R Wire Holder(32U-S710) AA
LHLDW1009PEZZ R Wire Holder AA
LHLDW1033PEZZ R Wire Holder AA
LHLDW1037PEZZ R Wire Holder AB
LHLDW1060CEZZ J Wire Holder, x3 AB
LHLDW1062PEKZ R Wire Holder AD
LHLDZ1003GJZZ X Wire Holder AC
LHLDZ1037MEZZ X Anode Clamp Holder, x2 AD
LX-TZ0104GJFD X CRT Screw, x4 AF
LX-TZ3004CEFD J Screw, x4 AA
LX-WZ0104GJFD X CRT Washer, x4 AB
QCNW-0135GJZZ X Connecting Cord(EJ) AH
(32U-S600)
QCNW-0136GJZZ X Connecting Cord(SP) AC
QCNW-0165GJZZ X Connecting Cord(EJ) AD
(32U-S710)
QCNW-A081GJZZ X Connecting Cord(YBN) AG
(32U-S710)
QCNW-A082GJZZ X Connecting Cord(GBN) AH
(32U-S710)
QCNW-A381WJZZ X Connecting Cord(TA) AG
(32U-S710)
QCNW-A382WJZZ X Connecting Cord(SG) AF
QCNW-A383WJZZ X Connecting Cord(IF) AH
(32U-S710)
QCNW-A435WJZZ X Connecting Cord(YBN) AF
(32U-S600)
QCNW-A436WJZZ X Connecting Cord(GBN) AG
(32U-S600)
TCAUH3044GJZZ X Caution Card AB
TLABM0002GJZZ X Model Label AB
TLABSA007WJZZ X SRS Label(32U-S710) AB
TLABZ0152GJZZ X Feature Label AD
TLABZA024WJZZ X No. Label(32U-S710) AB
XTASD30P12000 J Screw, x2 AA
XTASD30P12000 J Screw, x4 AA
XTASD40P20000 J Screw, x8 AA
PACKING PARTS
(NOT REPLACEMENT ITEM)
SPAKCA006WJZZ – Packing Case(32U-S600) —
SPAKCA063WJZZ – Packing Case(32U-S710) —
SPAKP0110GJZZ – Wrapping Paper —
SPAKX0126GJZZ – Buffer Material(32U-S600) —
SPAKX0128GJZZ – Buffer Material(32U-S710) —
SSAKA0101GJZZ – Polyethylene Bag —
SUPPLIED ACCESSORIES
QCNW-0236MEZZ X Coaxial Cable(32U-S710) AF
RRMCGA027WJSA X Infrared R/C Unit AT
(32U-S710)
RRMCGA036WJSB X Infrared R/C Unit AV
(32U-S600)
TGAN-0001GJZZ X Guarantee Card AB
TiNS-A056WJZZ X Operation Manual AH
(32U-S600)
TiNS-A110WJZZ X Operation Manual AH
(32U-S710)
32U-S600
1 CCABA0174WEH0 X Front Cabinet Ass'y BK
1-1 Not Available – Front Cabinet —
1-2 GCOVA0116GJKA X Cover, RC, LED AC
1-3 GDORF0104GJKA X Door AF
1-4 GCOVA0117GJKA X Door Cover AF
1-5 HBDGB1009MESB X Badge, "SHARP" AG
1-6 HiNDP0105GJKZ X Indication Plate AE
1-7 JBTN-0136GJKA X Button, Power AQ
1-8 JBTN-0137GJKA X Button, CH-Up/Down, AQ
VOL-Up/Down, Menu
2 GCABB0142GJKA X Rear Cabinet BC
32U-S710
1 CCABAA030WEH0 X Front Cabinet Ass'y BF
1-1 Not Available – Front Cabinet —
1-2 GCOVA0116GJKA X Cover, RC, LED AC
1-3 GDORF0104GJKA X Door AF
1-4 GCOVA0119GJKA X Door Cover AF
1-5 HBDGB1009MESB X Badge, "SHARP" AG
1-6 HiNDP0106GJKZ X Indication Plate
1-7 JBTN-0119GJKB X Button, Power
1-8 JBTN-0120GJKB X Button, CH-Up/Down,
VOL-Up/Down, Menu
2 GCABBA026WJKA X Rear Cabinet BB

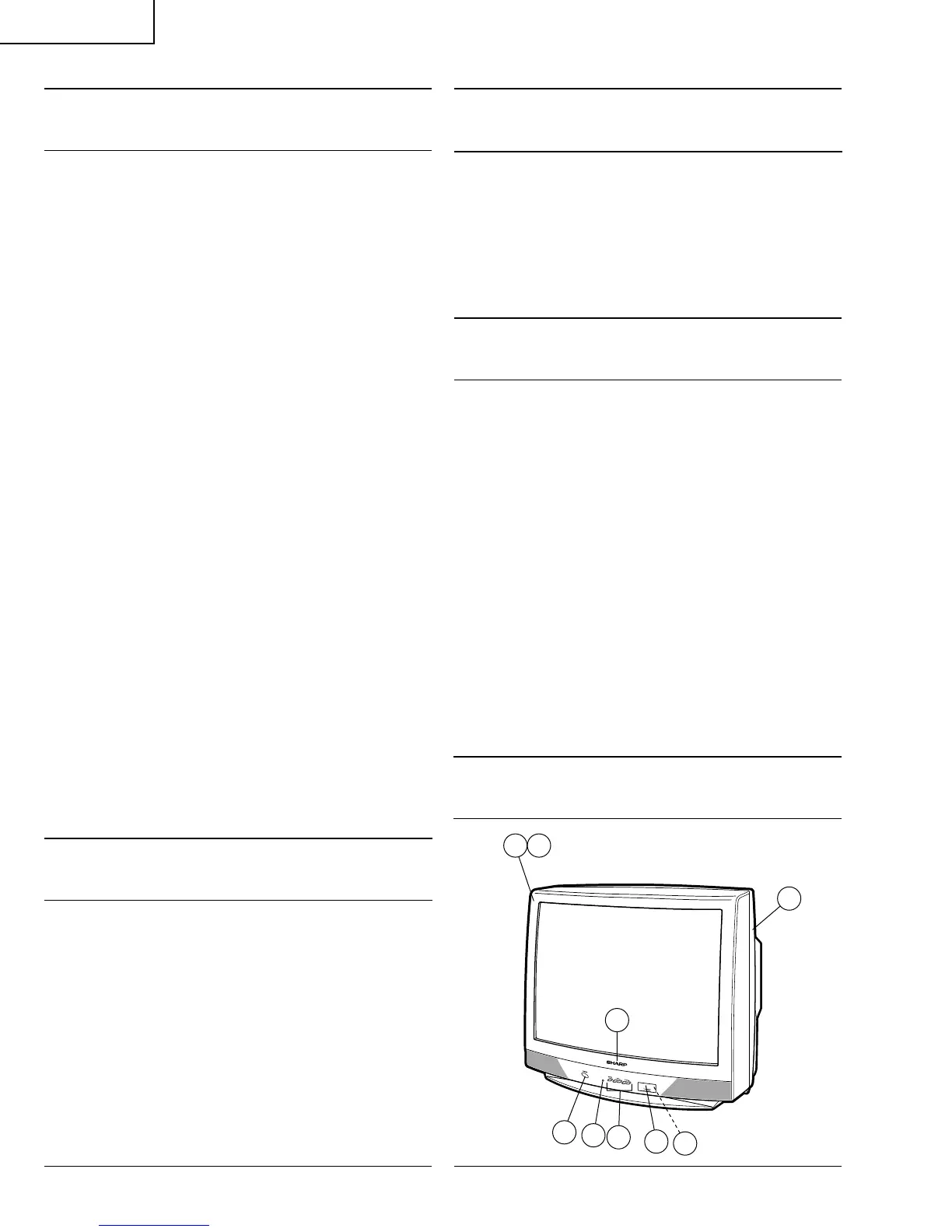

CABINET PARTS LOCATION
1-5
1
1-1
2
1-7
1-2
1-8
1-7
1-6
CABINET PARTS
