17
AF-06CSL

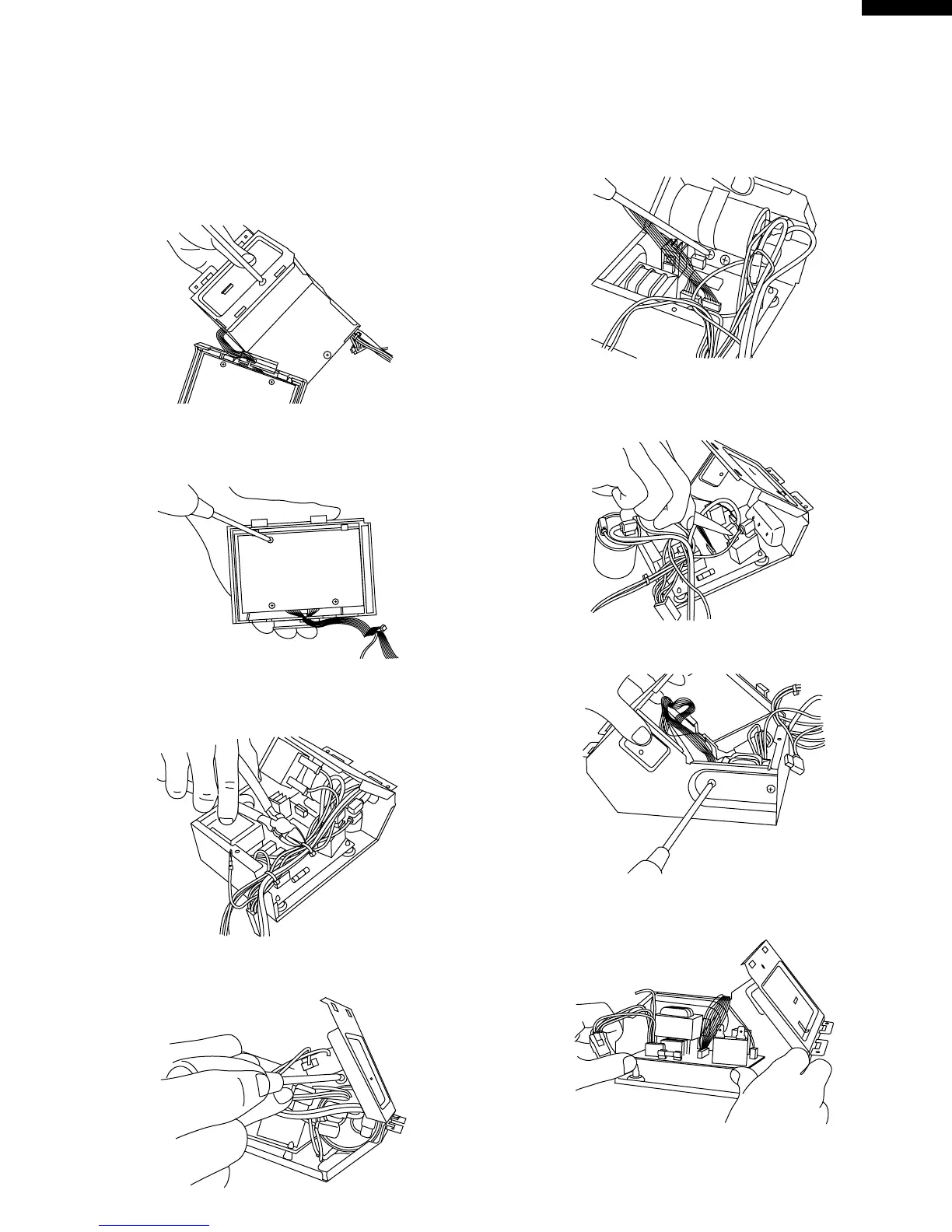

DISASSEMBLING THE CONTROL BOX
1. Unscrew the 2 screws holding the control box cover.
CAUTION:
DISCHARGE THE FAN MOTOR CAPACITOR AND
RUNNING CAPACITOR BEFORE TOUCHING
THOSE CAPACITORS OR OTHER COMPONENTS
OR WIRING.
2. Unscrew the 3 screws holding the printed wiring board.
3. Cut the wire fixing bands holding the fan motor lead
wires, the compressor cord and the power supply cord.
4. Unscrew the 1 screw holding the fan motor capacitor.
5. Unscrew the 1 power supply cord grounding screw.
Unscrew the earth screw. Unscrew the 1 screw holding
the capacitor clamp.
6. Detach each connector by using long-noise pliers.
7. Unscrew the 2 screws holding the transformer.
8. Remove the control board with unhooking the 2
spacers.
To Next Page
