14
AF-06CSL

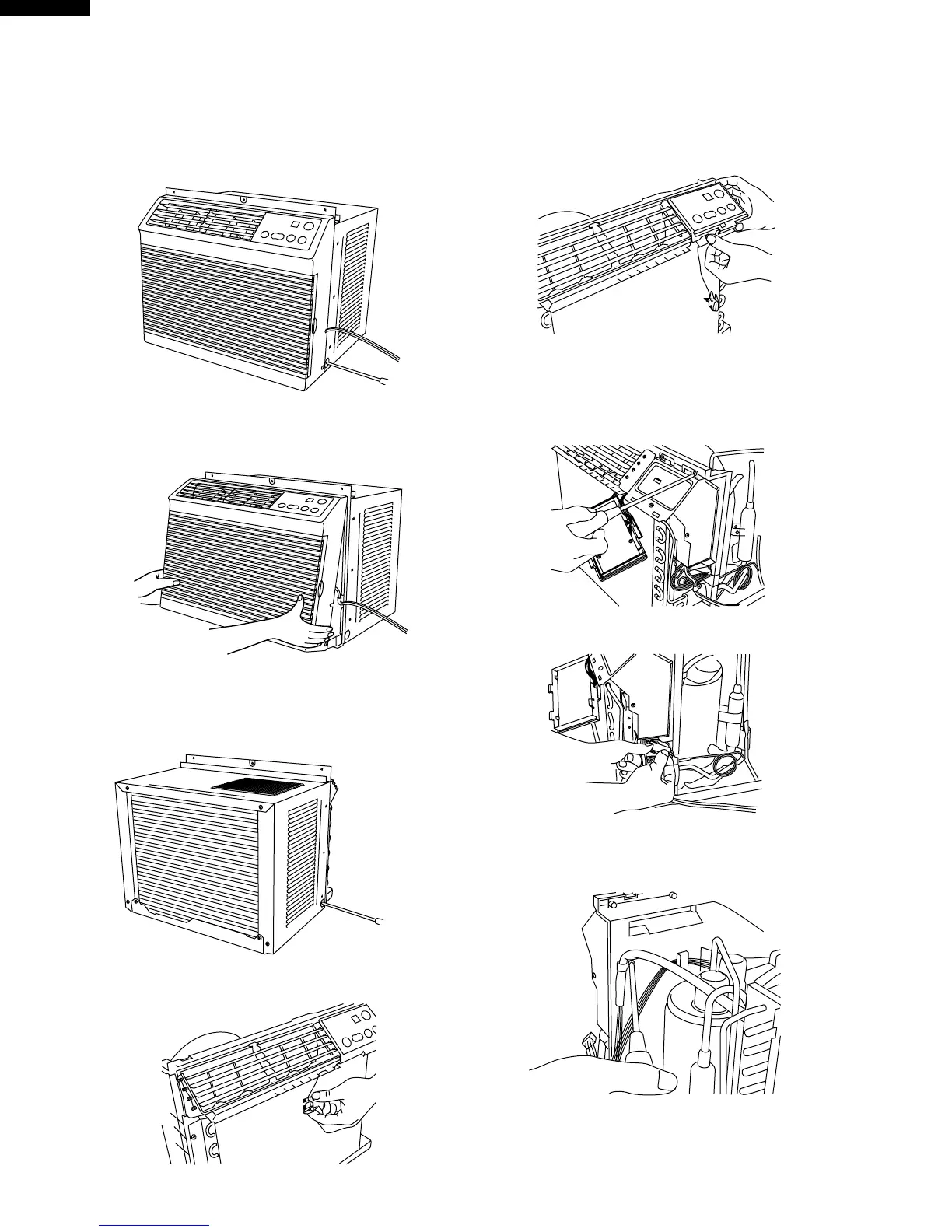

DISASSEMBLING PROCEDURE
CAUTION: DISCONNECT THE ROOM AIR CONDITIONER FROM THE POWER SUPPLY BEFORE ANY SERVICE
3. Unscrew the 9 screws holding the cabinet.
2 screws are on each side.
4 screws are on back side.
3 screws are on top side.
4. Remove the thermistor holder.
5. Remove the control panel.
6. Unscrew the 5 screws.
3 screws are holding the control box at the top and right
side.
1 screw is holding the power supply cord.
1 screw each screw on the evaporator.
7. Take off the fan motor connector.
8. Unscrew the 1 screw holding the compressor cord.
1. Unscrew the 2 screws holding the front panel on each
side.
2. Remove the front panel by pulling the front panel at the
lower corner toward you about one inch. Next lift up
and pull it toward you.
To Next Page
