ENERGY SAVER indicator
ENERGY SAVER pad
ENERGY SAVER

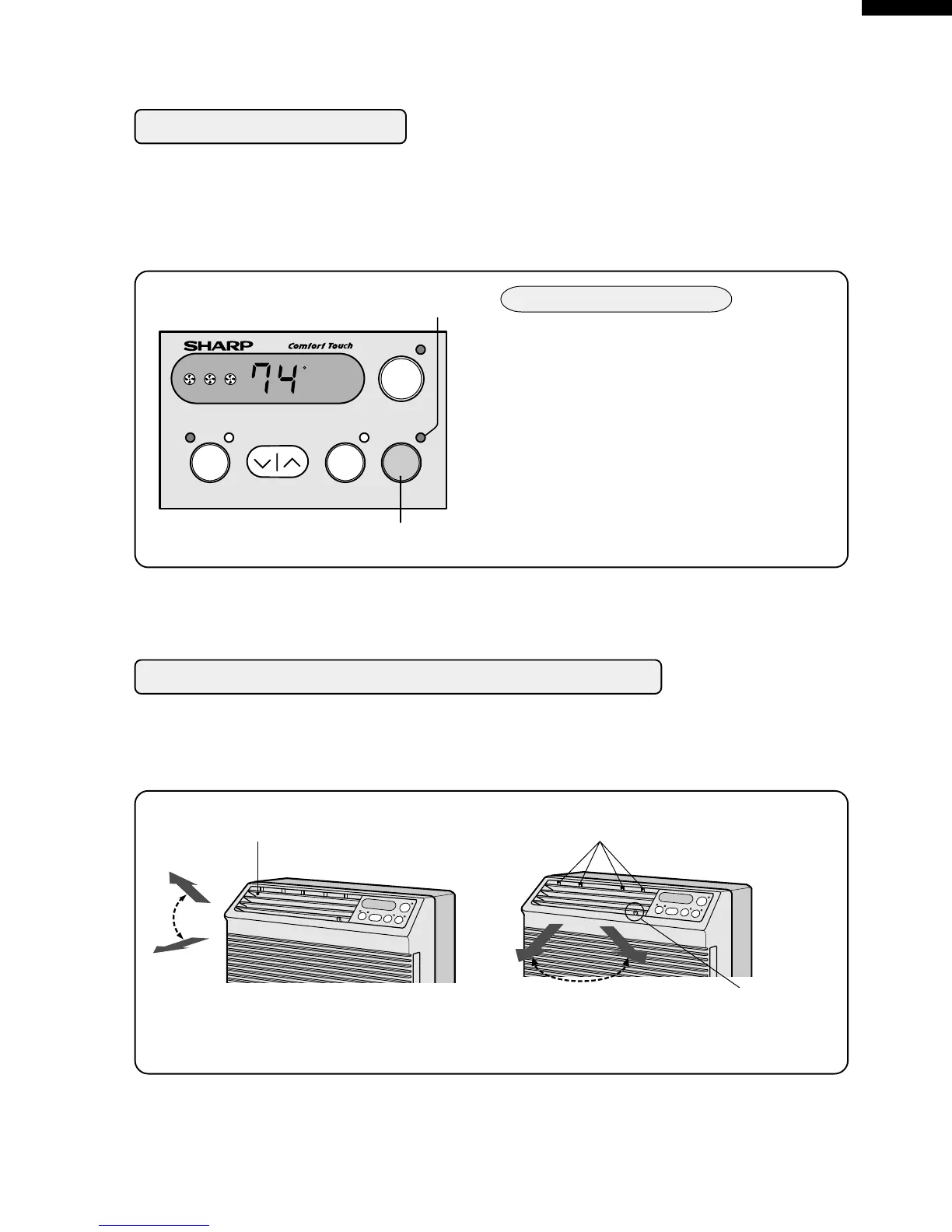

TO CHANGE AIR FLOW DIRECTION
Horizontal louvers
Adjust UP/DOWN air flow
The horizontal louvers are used to adjust the UP / DOWN direction of air flow, and the vertical
louvers are used to adjust the LEFT / RIGHT direction of air flow for uniform and efficient
cooling of the room.
During normal operation, the thermostat automatically controls cooling and the fan runs continuously.
When the ENERGY SAVER is selected, the thermostat automatically controls cooling and the fan
automatically stops when the compressor is not operating. (Fan will stop 30 seconds after the compressor
stops. After the fan stops, the fan is programmed to rotate for approx. 2 minutes to detect room
temperature. This will occur within a 20 min time span.)
2
To cancel, touch ENERGY SAVER
pad again.
• ENERGY SAVER indicator will go
off.
NOTE: ENERGY SAVER cannot be set during fan only (HIGH FAN, MED FAN, LOW FAN)
operation.
During cooling operation
1
Adjust LEFT/RIGHT air flow
Lever
Touch ENERGY SAVER pad.
• ENERGY SAVER indicator will light.
Vertical louvers
