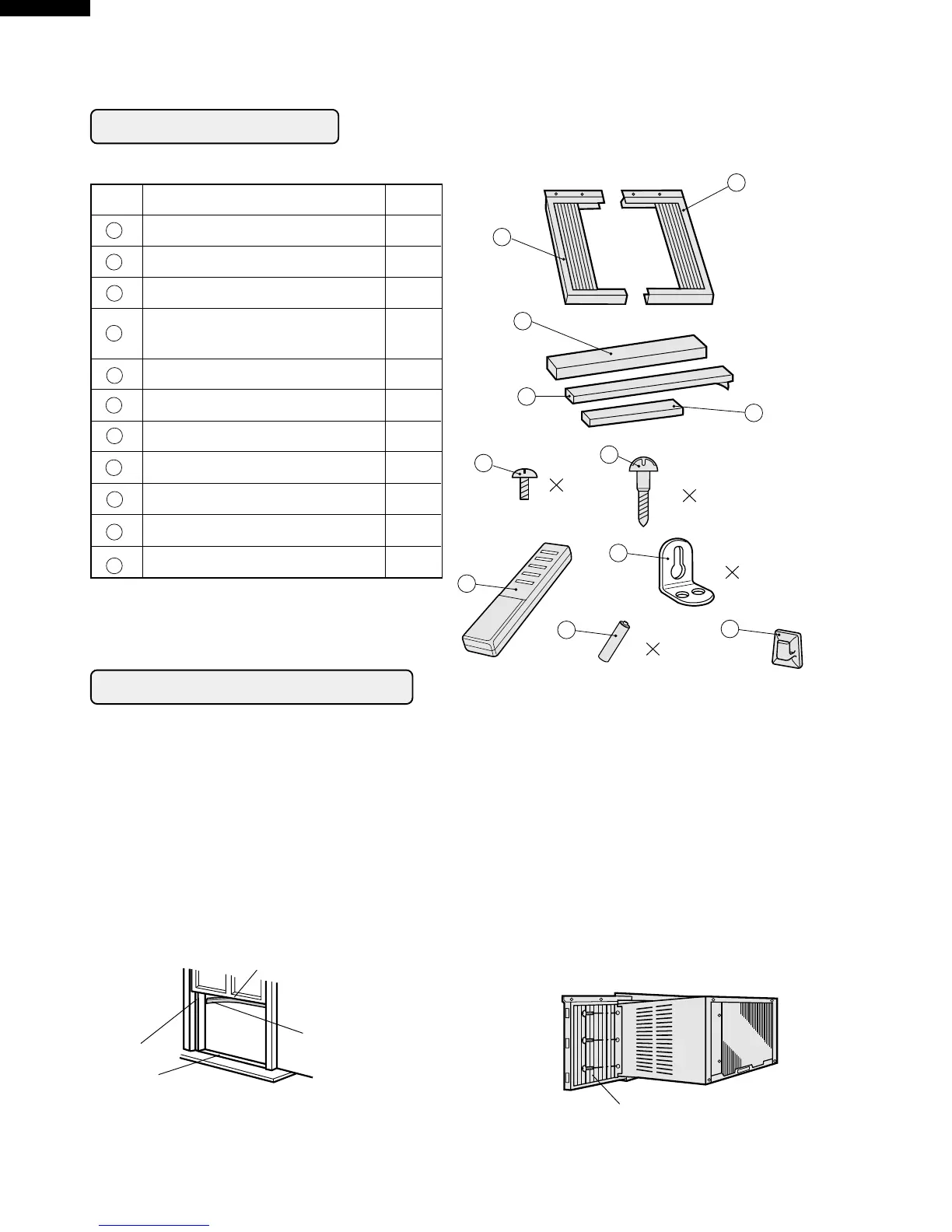

ACCESSORIES
No.
Accessories Q'ty
Right closure assembly 1
Left closure assembly 1
Window sash foam seal 1
1. Screw driver (medium size Phillips)
2. Tape measure or ruler
3. Knife or scissors
6
7
2
2
SUGGESTED TOOLS
Window sash foam seal 1
(adhesive type)
Bottom gasket 1
Screws (L=1", 25.4mm) 7
Screws (L=
13
/
32
", 10mm) 6
Base pan angle 2
Remote control 1
Battery 2
Remote control hook 1
INSTALLATION
WARNING: Make sure the unit is turned off and unplugged before working.
1. Cut the window sash foam seal (adhesive type) to the
proper length and attach it to the underside of the
window sash.
2. Insert the right closure assembly and the left closure
assembly into the top angle and the bottom channels.
Secure the right and left closure to the cabinet with
six of the provided screws.
(L=
13
/
32
", 10mm)
INSTALLATION INSTRUCTIONS
Closure assembly
Sash
Jamb
Sill
Window sash foam seal
(adhesive type)
