PERFORMANCE CURVES
NOTE: 1) Indoor fan speed: Hi, Thermostat setting : 18˚C
2) Vertical adjustment louver "45˚", Horizontal adjustment louver "front"
3) Indoor air temp. : D.B. 27˚C, W.B. 19˚C (RH47%)

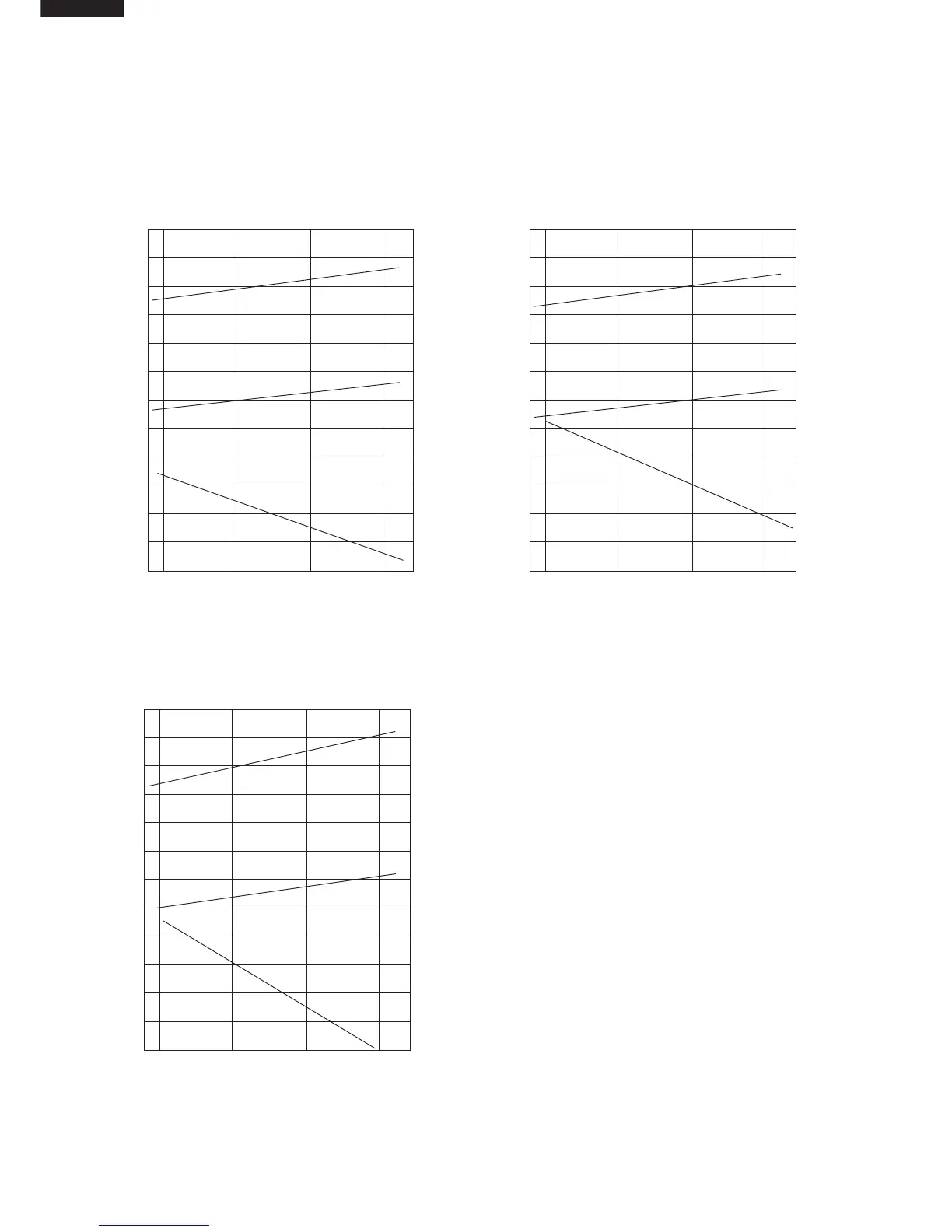

Figure P-1. At Cooling for AH-S22DP2
25 30 35 40
2.5
2.7
2.9
3.1
10
12
14
800
1000
1200
1400
(Running frequency: 101Hz)
Cooling capacity(kW)
Outside air temp.(˚C)
Input(W)
Outlet air temp.(˚C)
Figure P-2. At Cooling for AH-S25DP2
Figure P-3. At Cooling for AH-S32DP2
25 30 35 40
2.5
2.7
2.9
3.1
10
12
14
600
800
1000
1200
Cooling capacity(kW)
Outside air temp.(˚C)
Input(W)
Outlet air temp.(˚C)
(Running frequency: 89Hz)
25 30 35 40
3.6
3.8
4.0
4.2
10
12
14
1000
1200
1400
1600
Cooling capacity(kW)
Outside air temp.(˚C)
Input(W)
Outlet air temp.(˚C)
(Running frequency: 97Hz)
