AH-S22DP2
AH-S25DP2
AH-S32DP2
OPTION
1

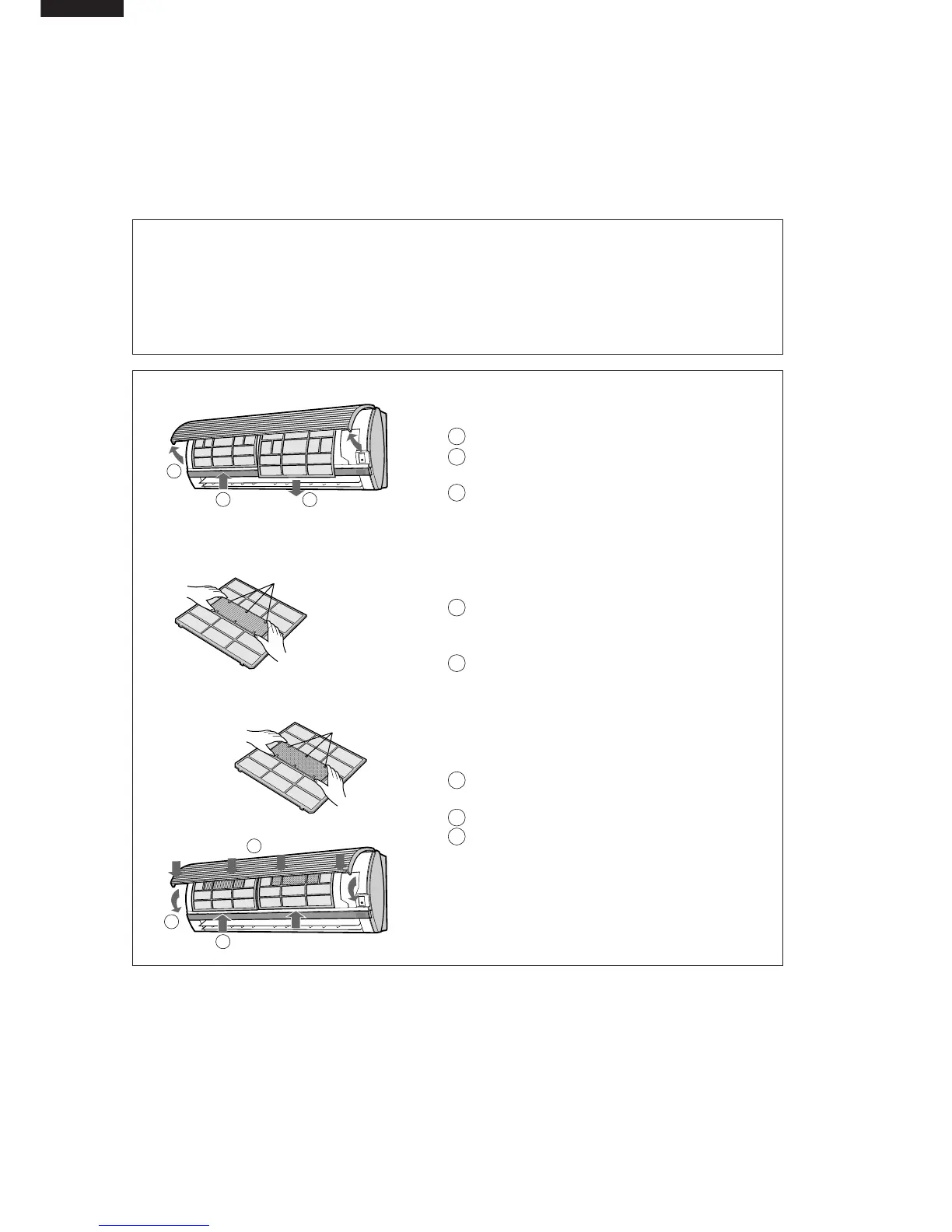

Take out the air filters.
Open the open panel.
Push the air filters up slightly to unlock
them.
Pull the air filters down to remove
Take of the old dust collection filter
and the deodorant filter from the air filter.
Snap out in the arrow marked direction.
Set the new dust collection filter and
the deodorant filter with filter stoperts
located on the air filters.
them.
2
Check the filters.
3
Reinstall the air filters
Reinstall the air filters in the original
positions.
Close the open panel.
Push the arrow-marked of the panel
firmly to lock it in place.
DUST COLLECTION FILTER (gray)
Set the black side facing upward.
Filter stopper
DEODORANT FILTER (green)
Filter stopper
2
1
3
3
1
2
HOW TO REPLACE THE
DUST COLLECTION FILTER AND DEODORANT FILTER
Precautions
The dust collection filter and the deodorant filter are packed as accessory of this unit.
During operation of the air conditioner, the filters remove dust and tobacco smoke
from the air and discharges clean air.
• The filters are sealed in a plastic bag to keep their dust collection effect.
Do not open the bag until using the filters. (Otherwise the filters life may get shorter.)
• Do not expose the filters to direct sunlight. (Otherwise they may deteriorate.)
1
3
2
1
1
3
2
2
