34
AH-S22DP2
AH-S25DP2
AH-S32DP2

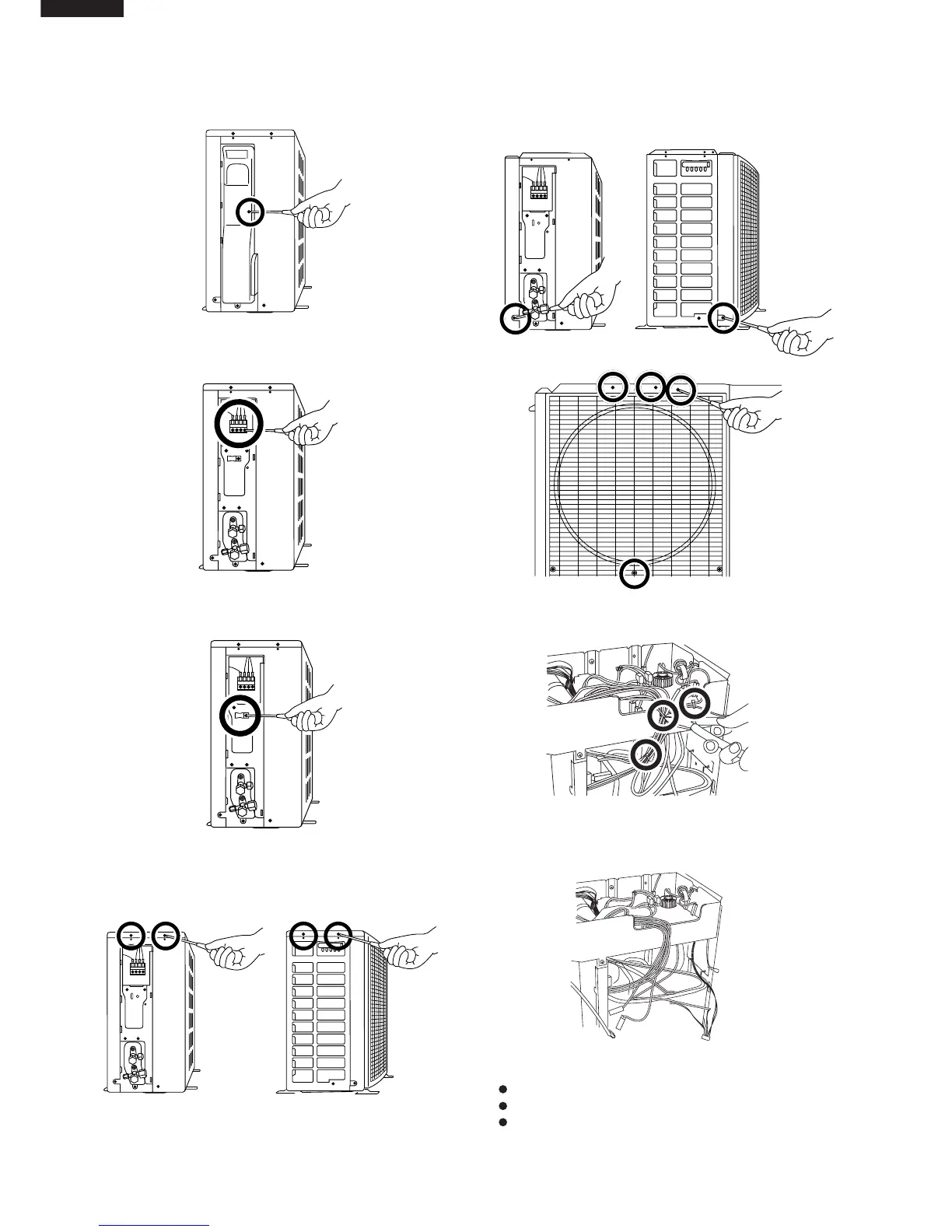

FOR OUTDOOR UNIT [AU-S22DP2/S25DP2/S32DP2]
CAUTION : DISCONNECT THE UNIT FROM THE POWER SUPPLY BEFORE ANY SERVICING
1. Loose a screw fixing the side cover.
2. Loose the unit to unit cord.
3. Loose a screw fixing the cord clamp.
4. Loose 4 screws fixing the top panel.
5. Loose 6 screws fixing the front panel.
6. Cut 2 nylon bands.
7. Disconnect terminals as following.
Reactor (2 terminals)
Fan motor
Thermistor
Right side view Left side view
Right side view Left side view
Front view
