Sharp AL-1655CS - 7 Optical frame

– 9 –
7

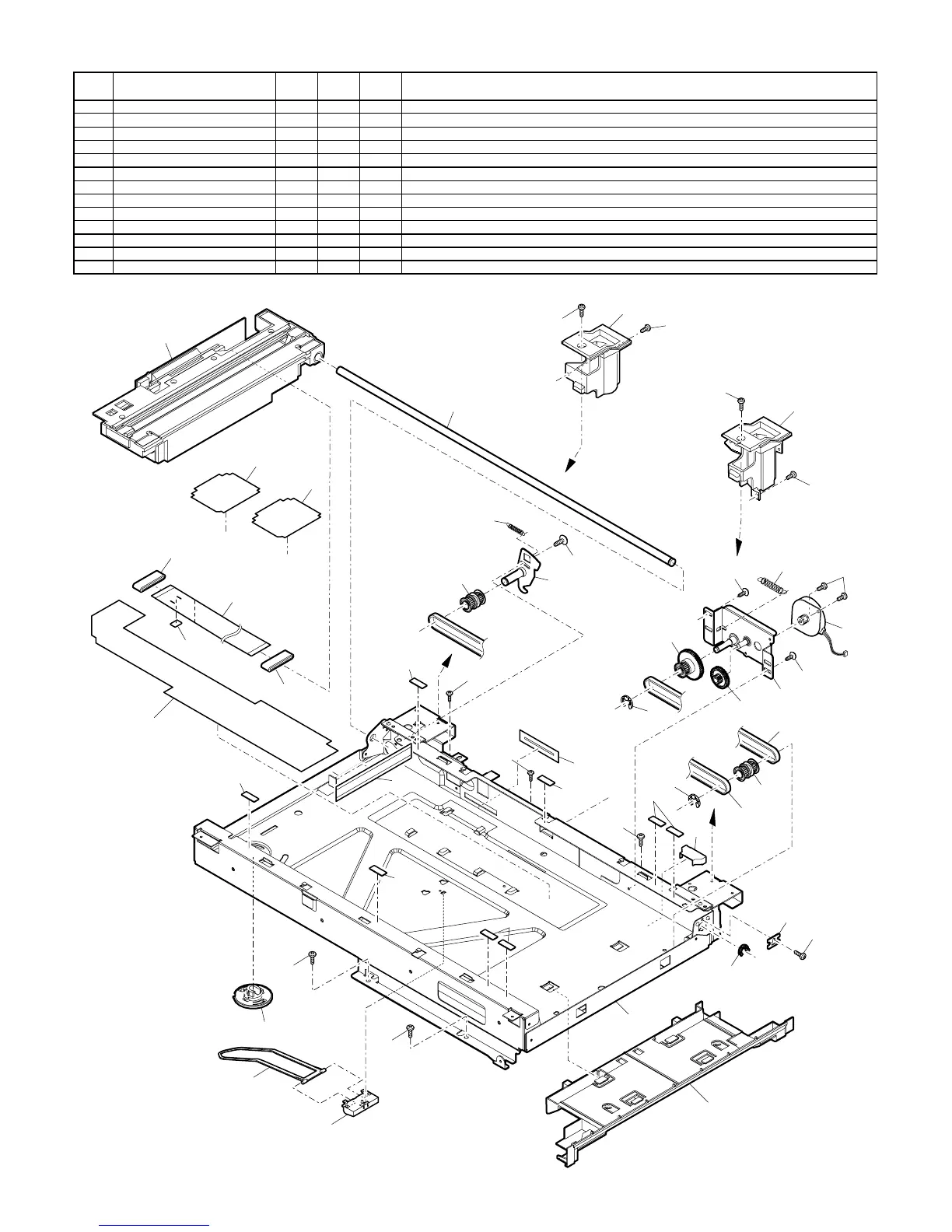

Optical frame
7
Optical frame
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
28 XRESP70-08000 AA C E-ring
29 PGIDM0019QSJ1 AG C SPF hinge guide L
30 PGIDM0020QSJ2 AH C SPF hinge guide R
31 XHBSE30P08000 AA C Screw(3×8)
32 RCORF0018QSZZ AR C FFC core
38 XEBSE40P12000 AA C Screw(4×12)
39 PSHEZ0389QSZ1 AK C Scanner sheet
40 DHAI-0268QSZ3 AG N C CCD-MCU harness
43 PTPE-0045QSZZ AA C CCD harness double-sided tape
44 MARMP0050QSZZ AF C Paper fixing arm
45 LHLDZ0111QSZZ AE C Paper fixing holder
