– 8 –
6

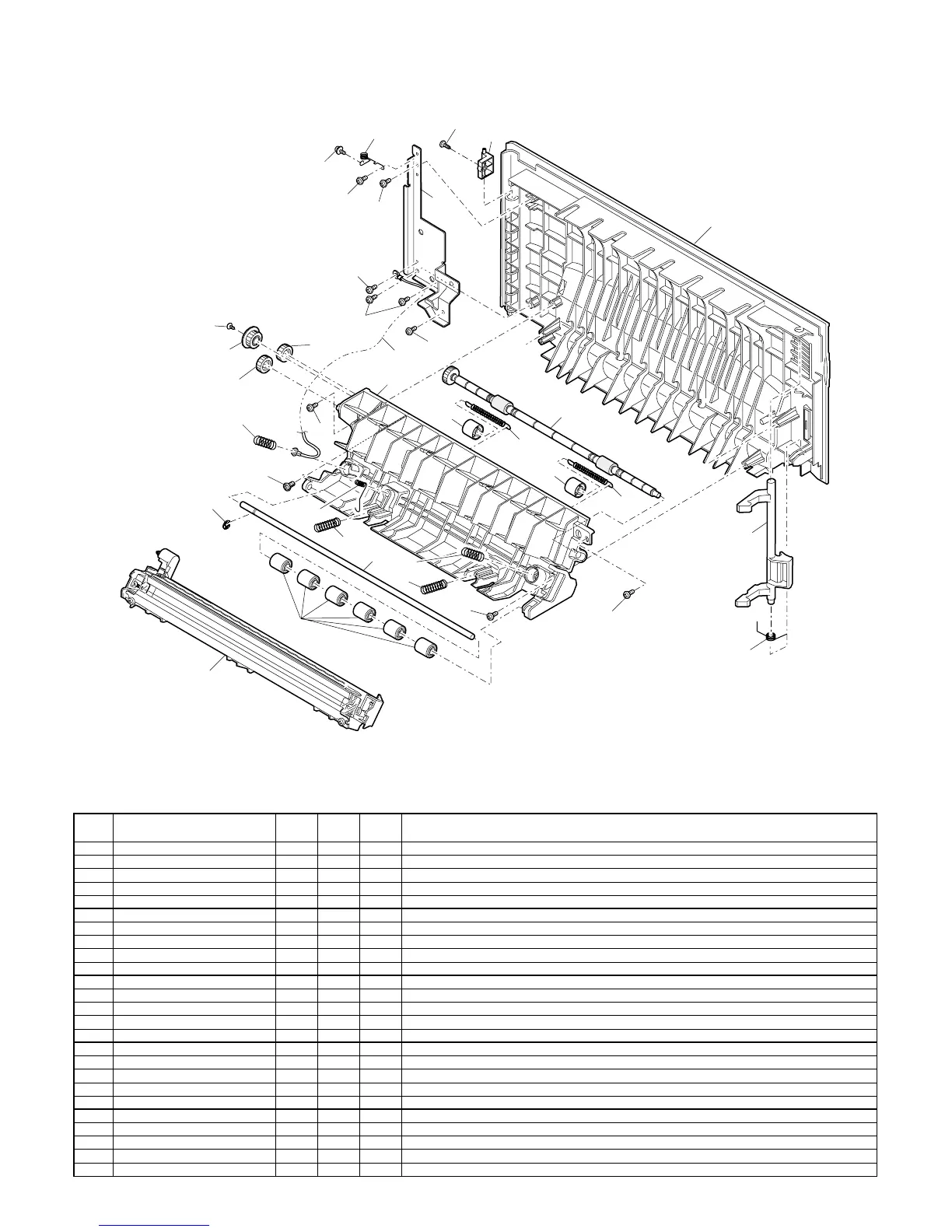

Side door unit
7
Optical frame
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
1 CGERH0162QS01 AN E Pulley gear
2 CPLTM0288QS02 BC E Scanner plate
3 CPLTM0291QS01 AG E Tension plate
4 CPLTM0294QS01 AK E Motor fixing plate
5 CPLYZ0028QS01 AM E Idle pulley
6 DUNT-0404QSZZ BU E Carriage unit
7 LHLDZ0093QSZZ AC C Rod holder
8 LSTPF0013QSZZ AC C Rod stopper
9 LX-BZ0033QSZZ AB C Screw(3×6)
10 MLOKZ0004QSZ1 AD C Carriage lock
11 MSPRT0283QSZZ AC C Tension spring
12 MSPRT0284QSZZ AC C Motor spring
13 NBLTT0030QSZ1 AH B Belt
14 NBLTT0031QSZ1 AF B Belt
15 NGERH0161QSZZ AL C Idle gear
16 NSFTZ0063QSZZ AK C Slide shaft
18 PGIDM0099QSZ1 AH C Paper guide
19 PGUMS0004QSZZ AA C Table glass cushion
21 PSHEZ0367QSZ1 AD C Cable fixing sheet
22 PDUC-0005QSZ2 AD C Fan duct JAG
23 PSHEZ0376QSZ1 AD C CCD insulate sheet
24 PSHEZ0377QSZZ AC C Edge protect sheet
25 RMOTS0046QSZZ AQ B Scanner motor
26 XHBSE30P06000 AA C Screw(3×6)
27 XRESP50-06000 AA C E-ring
PRP02485
3
6
7
8
8
7
2
8
17
18
16
14
15
10
13
11
14
1
4
5
12
9
10
10
11
10
21
22
23
23
24
25
25
26
26
28
27
