Sharp AL-1655CS - 30 2 ND frame unit

– 26 –
Z

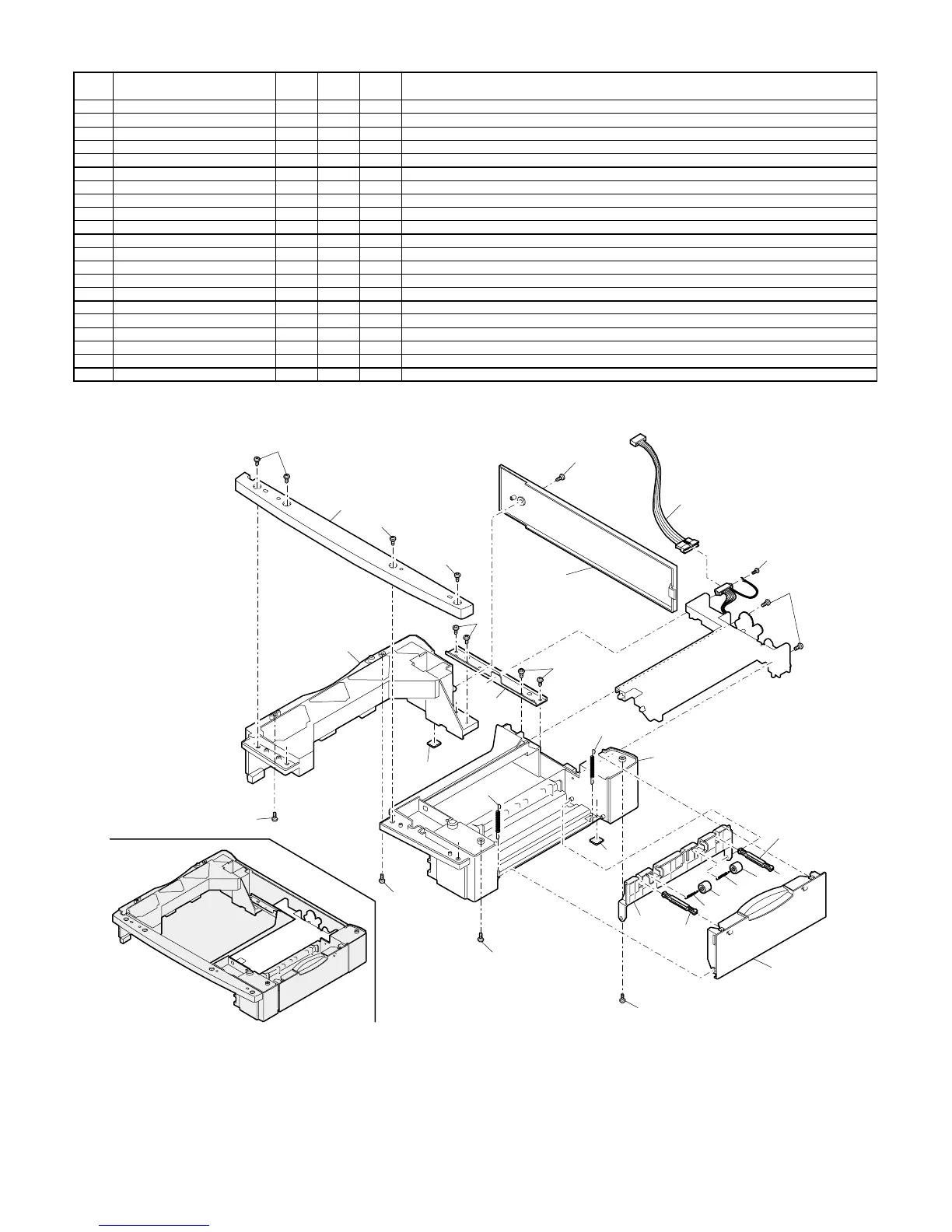

2ND frame unit
Z
2ND frame unit
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
1 GCOVA0005QSJ1 AL D Front cover
2 XEBSE40P12000 AA C Screw(4×12)
3 GCOVA0006QSJ1 AN D Rear cover
4 PGIDM0016QSJ2 AZ N C Guide L
5 XEBSD40P12000 AA C Screw(4×12)
6 LPLTM0036QSZZ AF C 2ND joint plate R
7 GLEGG0064FCZZ AC C Rubber foot
8 PGIDM0015QSJ2 AZ N C Guide R
9 MSPRC2544FCZZ AC C 2ND transport cover spring
10 GCOVA0007QSZZ AK D Transport cover
11 NROLP1060FCZZ AF C U-turn roller
12 MSPRT0112QSZ1 AC C Transport collar spring
13 MARMP0012QSZZ AD C 2ND door arm
14 GCOVA0008QSJ1 AK D Right cover
15 XHBSD40P08000 AA C Screw(4×8)
16 XEBSE40P16000 AA C Screw(3×16)
18 DHAI-0306QSZZ AG C 2CS harness
1
2
3
4
5
5
7
8
9
10
11
12
13
14
15
2
2
2
9
7
13
12
11
5
6
16
16
16
16
PRP02497
18
