AL-2051 DISASSEMBLY AND ASSEMBLY 8 - 7

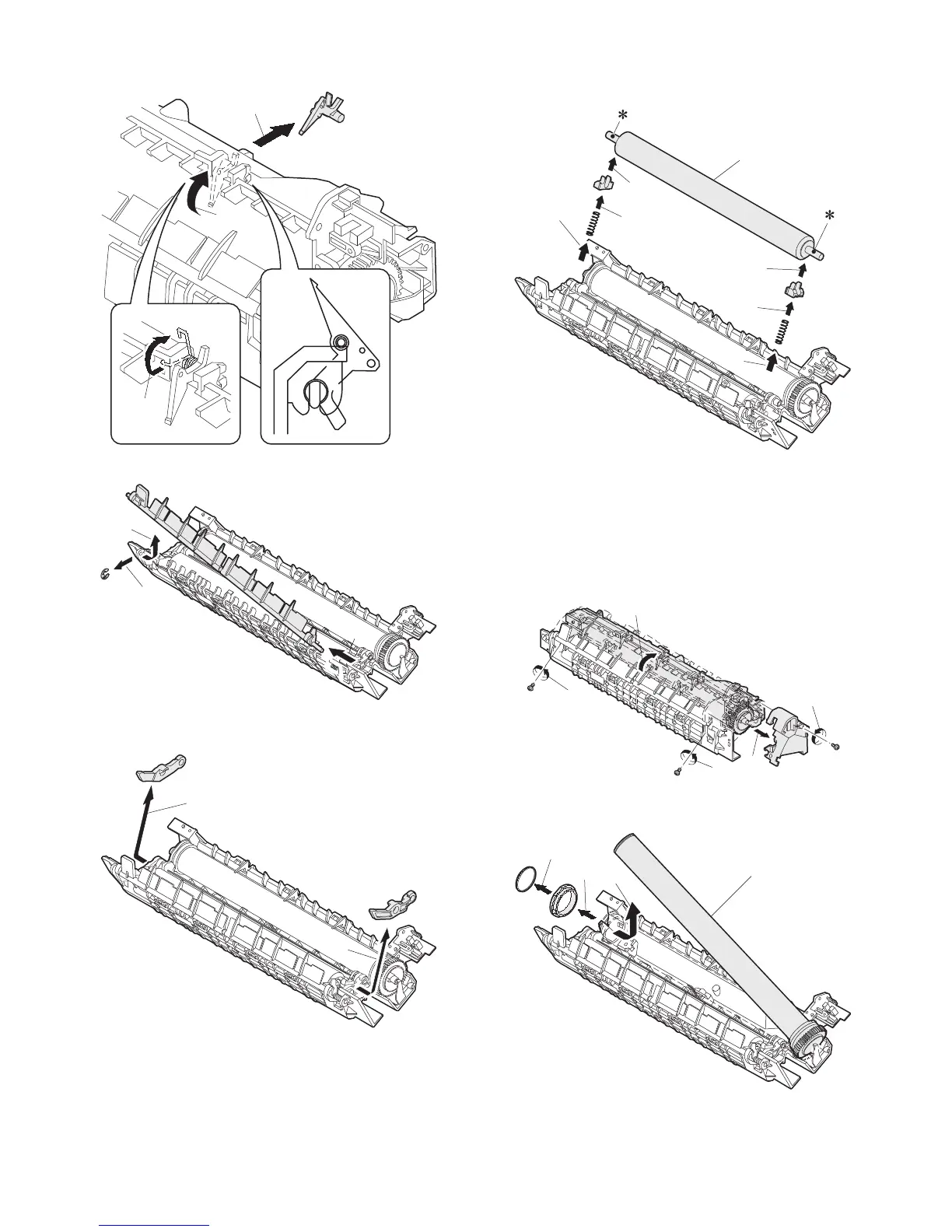

9) Remove the spring, and remove the upper separation pawls (3
pcs.).
10) Remove the E-ring and remove the reverse gate.
11) Remove the pressure release levers on the right and the left
sides.
12) Remove the pressure roller, and the spring.
Note: Apply grease to the sections specified with an asterisk (∗).
Grease: "JFE552" UKOG-0235FCZZ
Heat roller disassembly
(Continued from procedure 4).)
5) Remove screws, remove the fusing cover, and open the heat
roller section.
Note: When opening the fusing unit, be careful not to deform the
fusing lower earth spring as described in the item 8) of
"Pressure roller section disassembly.
6) Remove the C-ring and the fusing bearing, and remove the heat
roller.
3)
1)
2)
2)
1)
3)
1)
1)
1)
2)
2)
1)
3)
3)
Pressure roller
1)
2)
2)
3)
3)
1)
2)
3)
Heat roller
