AL-2051 DISASSEMBLY AND ASSEMBLY 8 - 16
7. Rear frame section
A. List

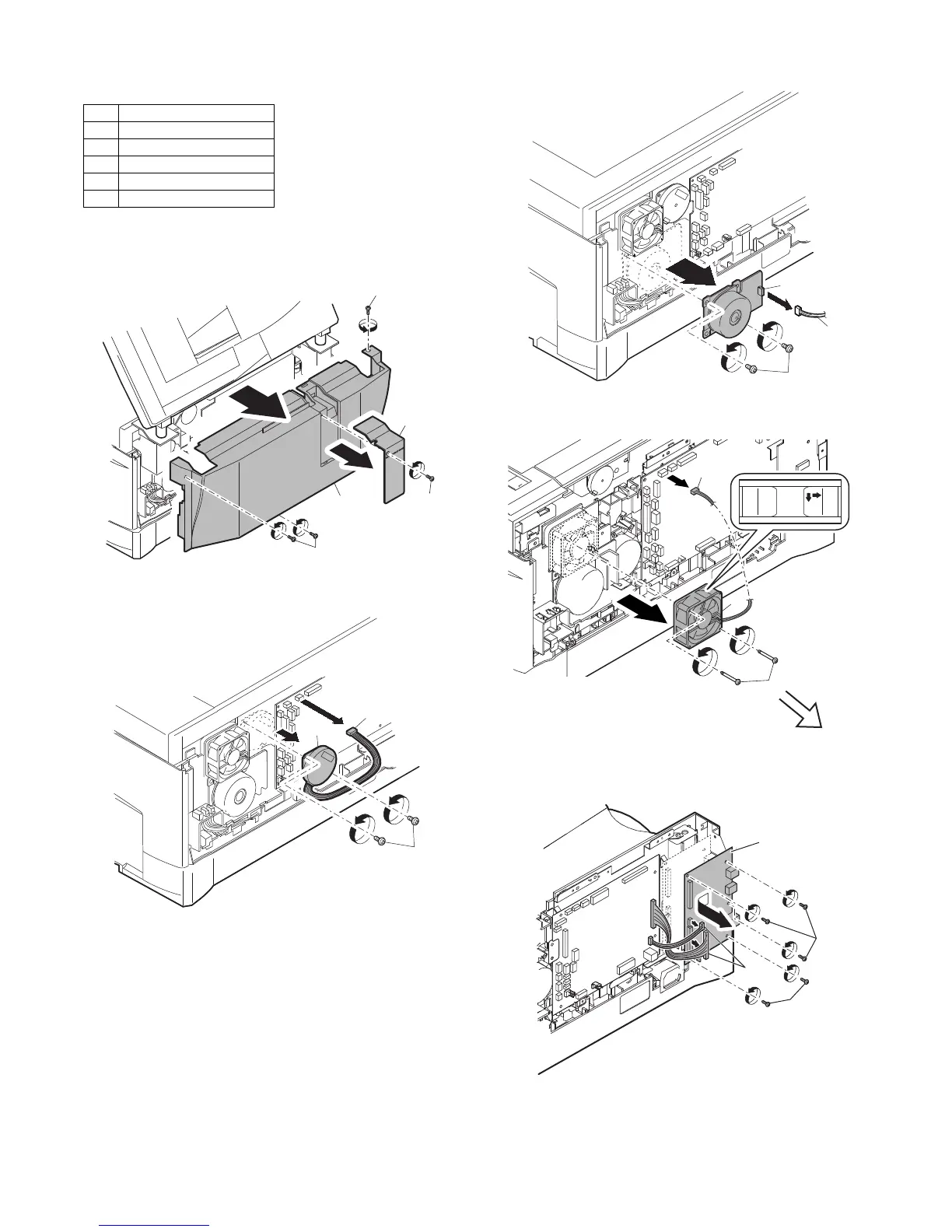

B. Disassembly procedure
1) Remove four screws, and remove the rear cabinet and the rear
cabinet cover.
2) Disconnect the connector.
3) Remove two screws, and remove the scanner motor.
4) Remove two screws and one harness, and remove the main
motor.
5) Remove two screws and one connector, and remove the
exhaust fan motor.
6) Disconnect the connector.
7) Remove the two screws, and remove the network PWB.
No. Part name Ref.
1 Scanner motor
2 Main motor
3 Exhaust fan motor
4 Network Board
5 MCU PWB
1)
1)
2)
2)
1)
1)
2)
3)
1)
2)
3)
1)
2)
3)
Blowing direction
1)
2)
3)
2)
