Sharp AL-2051 - Actual Wiring Diagram; Mcu Pwb

AL-2051 ELECTRICAL SECTION 12 - 2

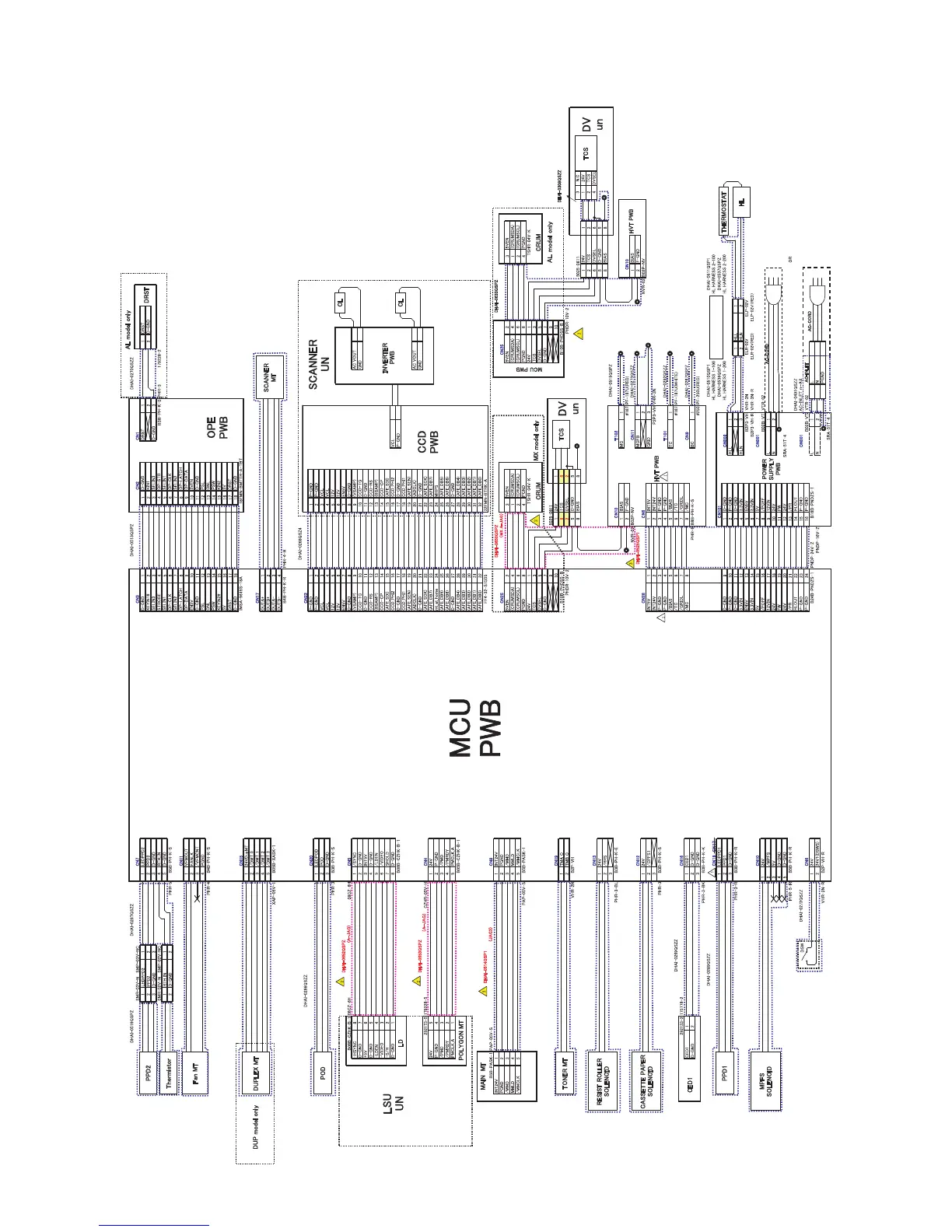

2. Actual wiring diagram
A. MCU PWB
PPD2 harness
PPD2 interface harness
POD
harness
LSU laser harness
Polygon motor harness
Main motor harness
CED1
harness
PPD1 harness
DSW harness
OP-MCU harness
CCD MCU
harness
3(FFC)
DV C RUM
harness
PS harness
D-RST harness
A-JAG CRUM harness
Sensor harness
MC harness
GB-MCBF harness
TC harness BC harness
HL 100V series connector white
HL 200V series connector red
200V series only
100V, 120V (North America), etc.
