Sharp Aquos LC-32A33X - Connecting a Digital TV STB (Set Top Box); Connecting a PC

12
ANALOG
RGB
AUDIO
(L/R)
Preparation

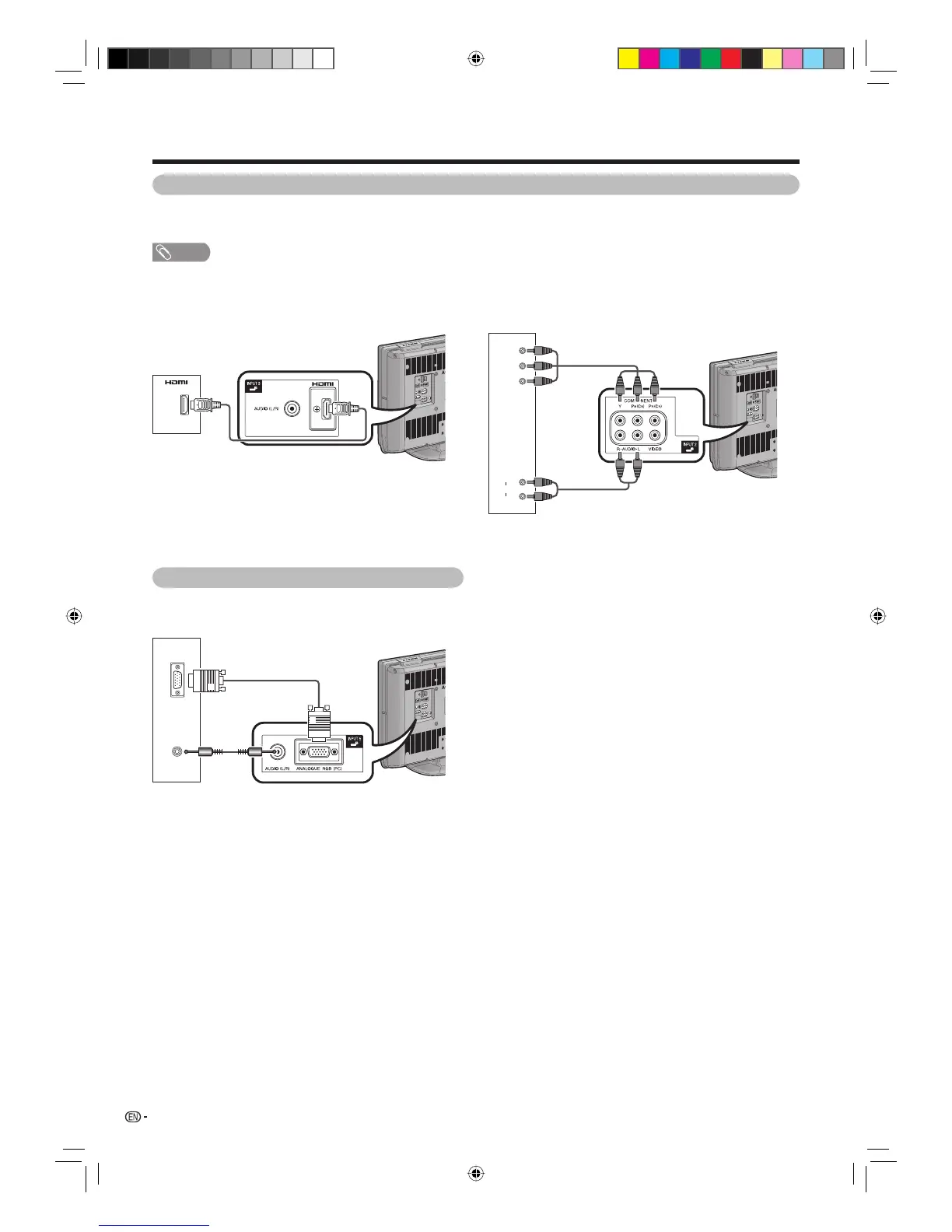

Connecting a Digital TV STB (Set Top Box)
You can use the INPUT 1/INPUT 2 or INPUT 3/INPUT 4 (HDMI) terminals when connecting to a Digital TV STB (Set
Top Box) and other audiovisual equipment.
NOTE
• When using a DVI-HDMI conversion adaptor, input the Audio Signal from the AUDIO terminal of INPUT 3. (See page 37.)
When using HDMI-certifi ed cable
(commercially available)
When using component cable
(commercially available)
AUDIO
R
L
Y
P
B
(CB)
P
R
(CR)
Digital TV
STB
(Set Top Box)
Digital TV STB
(Set Top Box)
Connecting a PC
You can use the INPUT 5 (PC) terminal when connecting
to a PC. (See page 45.)
PC
