Preparation

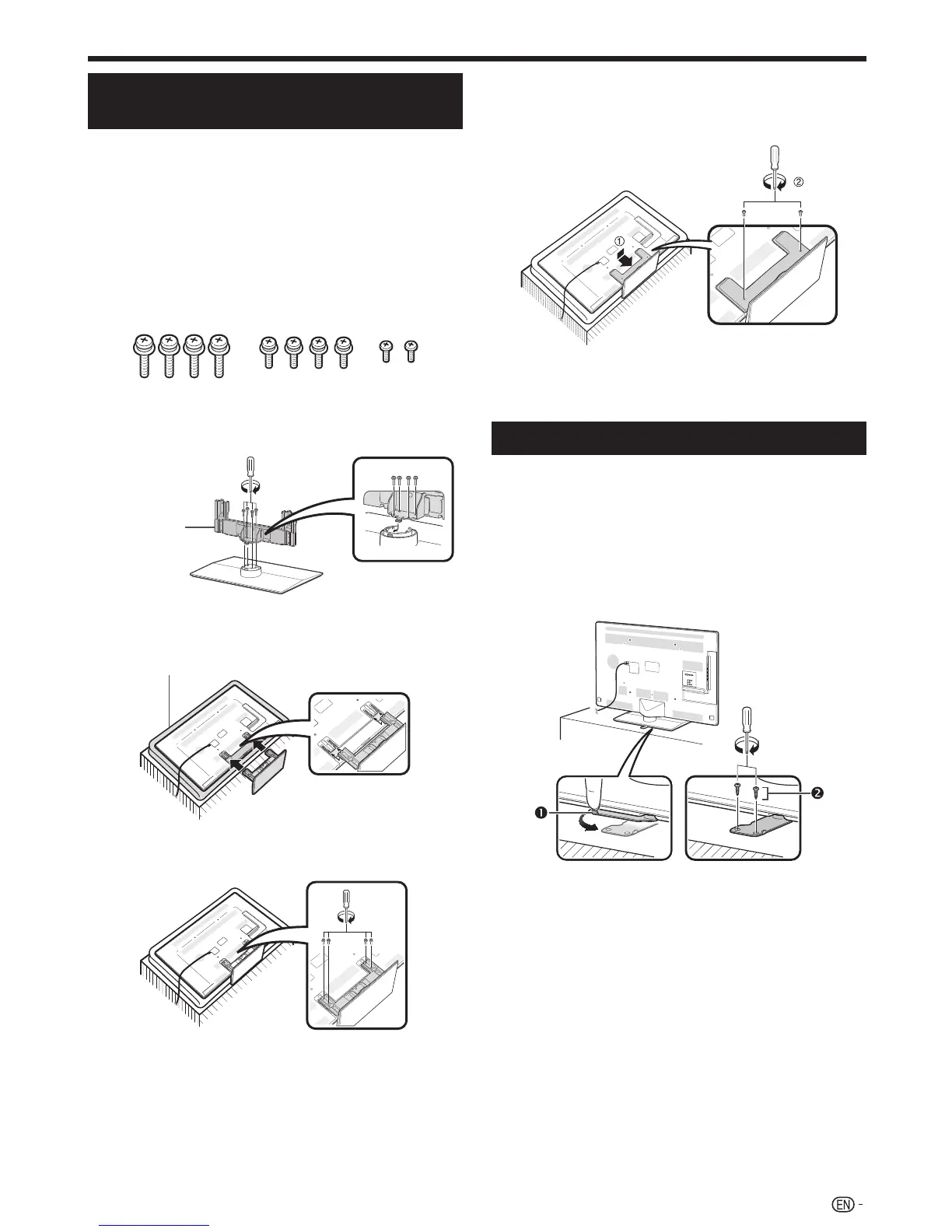

Attaching the stand unit —
60LE830M
• Before performing work, spread cushioning over the surface
on which you will be laying the TV. This will prevent it from
being damaged.
CAUTION
• Attach the stand in the correct direction.
• Be sure to follow the instructions. Incorrect installation
of the stand may result in the TV falling over.
1 Confirm that there are screws with the stand unit.
For 60 inch models
(four long screws, four middle screws and two
short screws)
2 Attach the supporting post for the stand unit onto
the base using the long screws with a screwdriver
as shown.
Supporting
post
2
1
3 Insert the stand into the openings on the bottom
of the TV (hold the stand so it will not drop from
the edge of the base area).
Soft cushion
4 Insert and tighten middle screws into the holes on
the rear of the TV.
5 Attaching the stand cover.
1
Insert the stand cover.
2
Insert and tighten two short screws into the holes of
the stand cover.
NOTE
• To detach the stand unit, perform the steps in reverse order.
• A screwdriver is not supplied with this product.
Fixing the TV to the table
1
Place the TV on the table.
2 Pull the attached restraining bracket out so that it
is at a 90 degrees angle.
3 Insert commercially available screws in the holes
of the restraining bracket and tighten the screws
to secure the TV to the table.
• Use commercially available screws to firmly secure the
TV.
Restraining bracket (attached)
Screws (commercially available)
CAUTION
• As this product is heavy, use a table that is wide
enough to support the product and capable of
withstanding the product’s weight. The table should be
set where it will not be overturned.
• Be sure to use at least two people when moving the TV.
