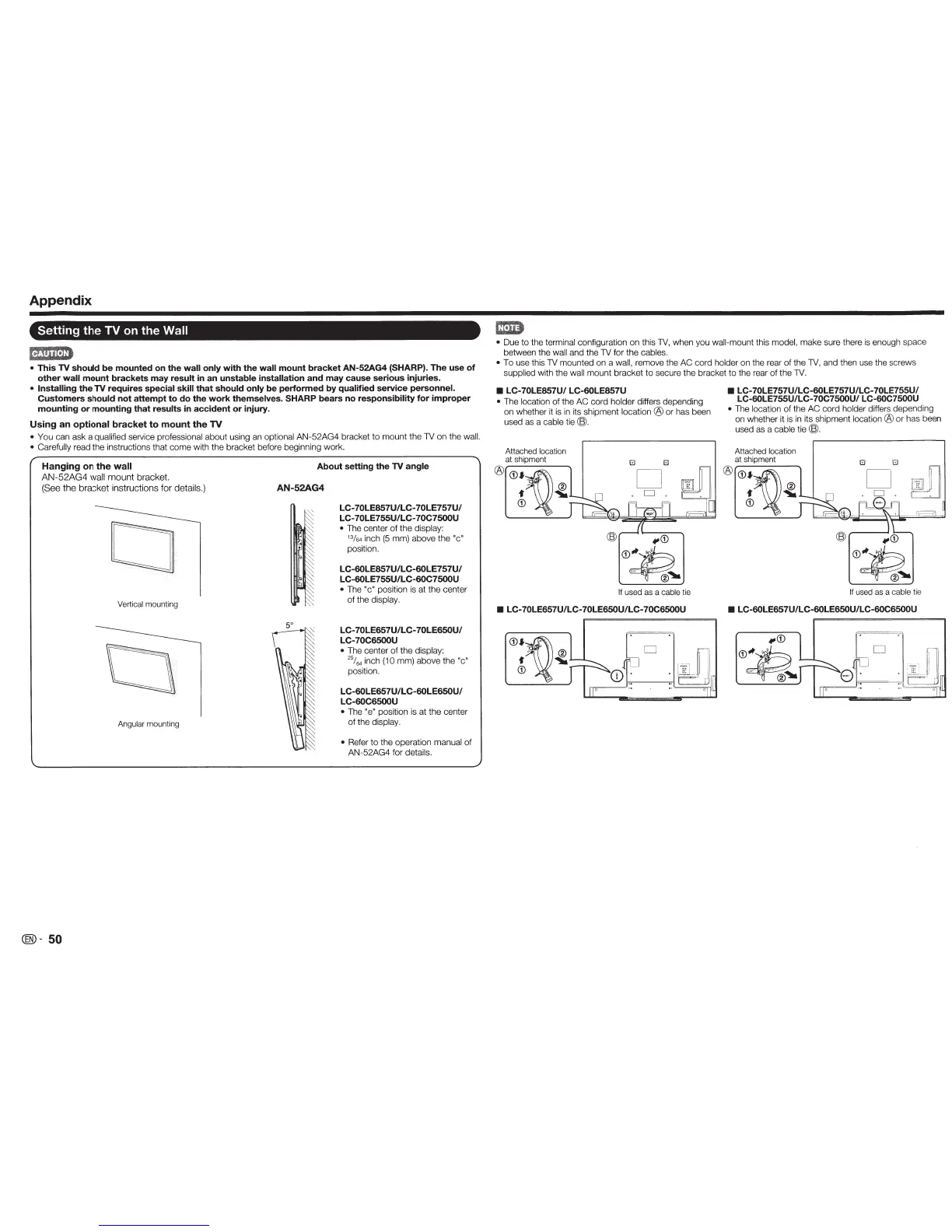

Appendix
Setting the TV
on
the Wall
iiJ!ii@l
• This
TV
should
be
mounted on the wall only with the wall mount bracket AN-52AG4 (SHARP). The use of
other wall mount brackets may result
in
an unstable installation and may cause serious injuries.
• Installing the
TV
requires special skill that should only be performed
by
qualified service personnel.
Customers should not attempt to do the work themselves. SHARP bears
no
responsibility for improper
mounting or mounting that results
in
accident or injury.
Using
an
optional
bracket
to
mount
the
TV
• You can ask a qualified service professional about using
an
optional
AN~52AG4
bracket to mount the
lV
on the wall.
• Carefully
read the instructions that come with the bracket before beginning work.
Hanging
on
the
wall
AN~52AG4
wall
mount
bracket.
(See
the
bracket
instructions
for
details.)
Vertical
mounting
Angular
mounting
@~50
About setting the
TV
angle
AN-52AG4
LC-70LE857U/LC-70LE757U/
LC-70LE755UILC-70C7500U
• The center of the display:
13
/64
inch
(5
mm) above the "c"
position.
LC-60LE857U/LC-60LE757U/
LC-60LE755U/LC-60C7500U
• The "c" position is at the center
of the
display.
LC-70LE657UILC-70LE650UI
LC-70C6500U
• The center of the display:
25
/
64
inch (10 mm) above the "c"
position.
LC-60LE657UILC-60LE650U/
LC-60C6500U
• The "e" position
is
at the center
of
the display.
•
Refer
to
the operation manual
of
AN~52AG4
for details.
•
Due to the terminal configuration on this
lV,
when you
wall~mount
this model, make sure there
is
enough space
between the
wall and the
lV
for the cables.
•
To use this
lV
mounted on a wall, remove the
ACcord
holder
on
the rear
of
the
lV,
and then use the screws
supplied
with the
wall mount bracket
to
secure the bracket to the rear
of
the
lV.
• LC-70LE857U/ LC-60LE857U
• The location of the AC cord holder differs depending
on whether
it
is
in
its shipment
location®
or has been
used as a
cable
tie@.
Attached
location
at
shipment
!!I B
D
@
.,.<D
<D.t'h
~~
If
used
as
a
cable
tie
• LC-70LE657UILC-70LE650U/LC-70C6500U
• LC-70LE757U/LC-60LE757UILC-70LE755UI
LC-60LE755UILC-70C7500UI LC-60C7500U
• The location
of
the AC cord holder differs depending
on whether it
is
in
its shipment location ® or has been
used
as
a cable
tie@.
Attached location
at
shipment
~
....
'
W·
I .
@
.,.<D
<D.t'h
~~
If
used
as
a cable
tie
• LC-60LE657UILC-60LE650UILC-60C6500U
.,.<D
<D~,.-y-:_'
_:
e
~
~[]~·
~~
~
u
