Sharp AQUOS LC-70LE650U

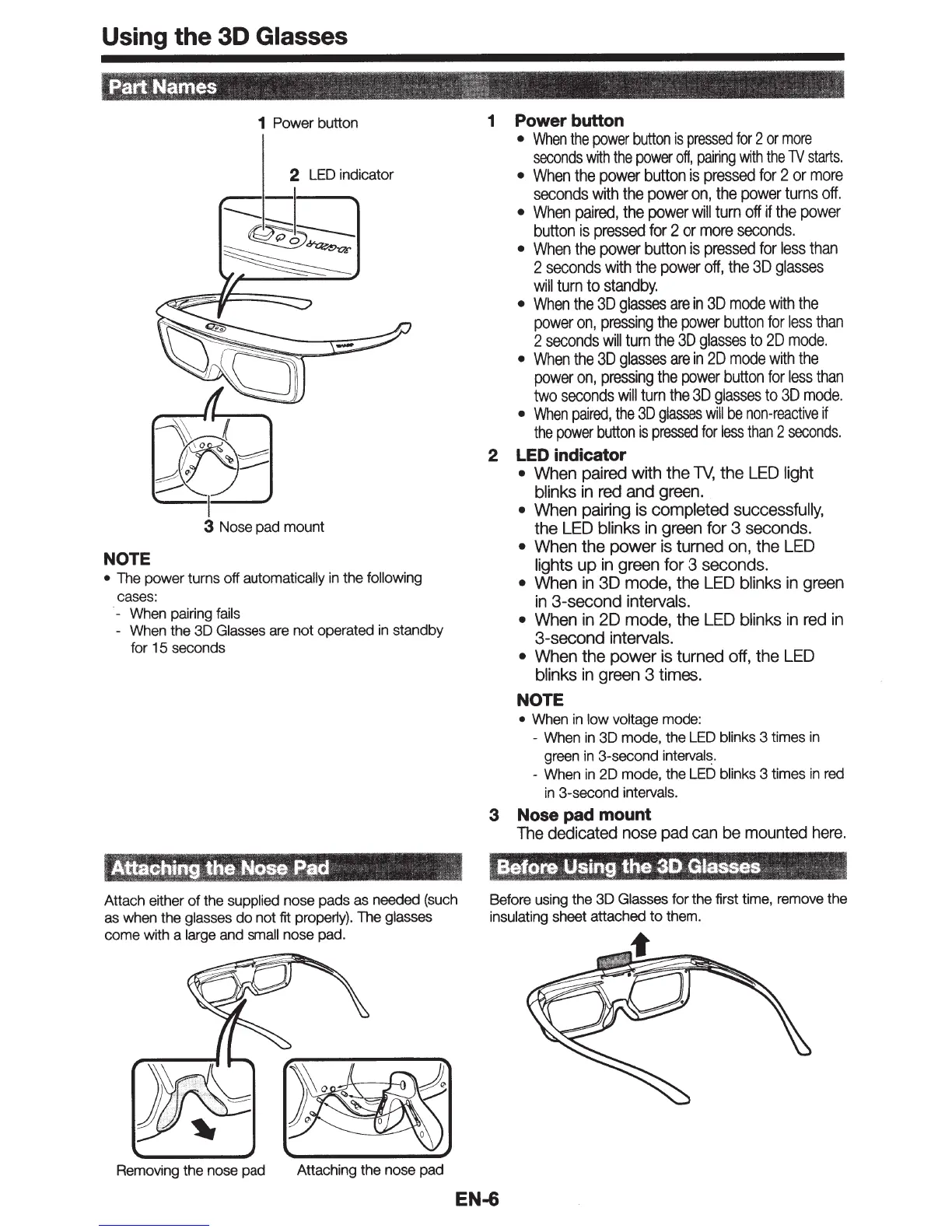

Using the
3D
Glasses
1
Power button
2
LED indicator
4~~
~~
~
---
1-
3
Nose pad mount
NOTE
•
The power turns off
automatically
in
the following
cases:
·-
When pairing
fails
- When the 3D Glasses
are not operated
in
standby
for 15 seconds
Attach either
of
the
supplied
nose pads as needed (such
as when the
glasses
do
not fit properly). The
glasses
come with a
large
and
small
nose pad.
Removing the nose pad Attaching the nose pad
1 Power
button
•
When
the
power
button
is
pressed
for
2
or
more
seconds
with
the
power
off,
pairing
with
the
TV
starts.
•
When
the
power
button
is
pressed
for
2
or
more
seconds
with
the
power
on,
the
power
turns
off.
•
When
paired,
the
power
will
turn
off
if
the
power
button
is
pressed
for
2
or
more
seconds.
•
When
the
power
button
is
pressed
for
less
than
2
seconds
with
the
power
off,
the
30
glasses
will
turn
to
standby.
•
When
the
30
glasses
are
in
30
mode
with
the
power
on,
pressing
the
power
button
for
less
than
2
seconds
will
turn
the
30
glasses
to
20
mode.
•
When
the
30
glasses
are
in
20
mode
with
the
power
on,
pressing
the
power
button
for
less
than
two
seconds
will
turn
the
30
glasses
to
30
mode.
•
When
paired,
the
30
glasses
will
be
non-reactive
if
the
power
button
is
pressed
for
less
than
2
seconds.
2
LED
indicator
•
When
paired
with the lV, the
LED
light
blinks
in
red
and
green.
•
When
pairing
is
completed
successfully,
the
LED
blinks
in
green
for 3 seconds.
•
When
the power
is
turned
on,
the
LED
lights
up
in
green
for 3 seconds.
•
When
in
3D
mode, the
LED
blinks
in
green
in
3-second
intervals.
•
When
in
2D
mode, the
LED
blinks
in
red
in
3-second
intervals.
•
When
the power
is
turned
off,
the
LED
blinks
in
green
3 times.
NOTE
•
When
in
low voltage mode:
- When
in
3D mode, the LED blinks
3 times
in
green
in
3-second
interval~.
- When
in
2D mode, the LED
blinks
3 times
in
red
in
3-second
intervals.
3 Nose pad mount
The
dedicated
nose
pad
can
be
mounted
here.
Before using the 3D
Glasses
for the first time, remove the
insulating
sheet attached
to
them.
EN-6
