Before Using the Handset
SH-04F_E_02.fm
[12/27]

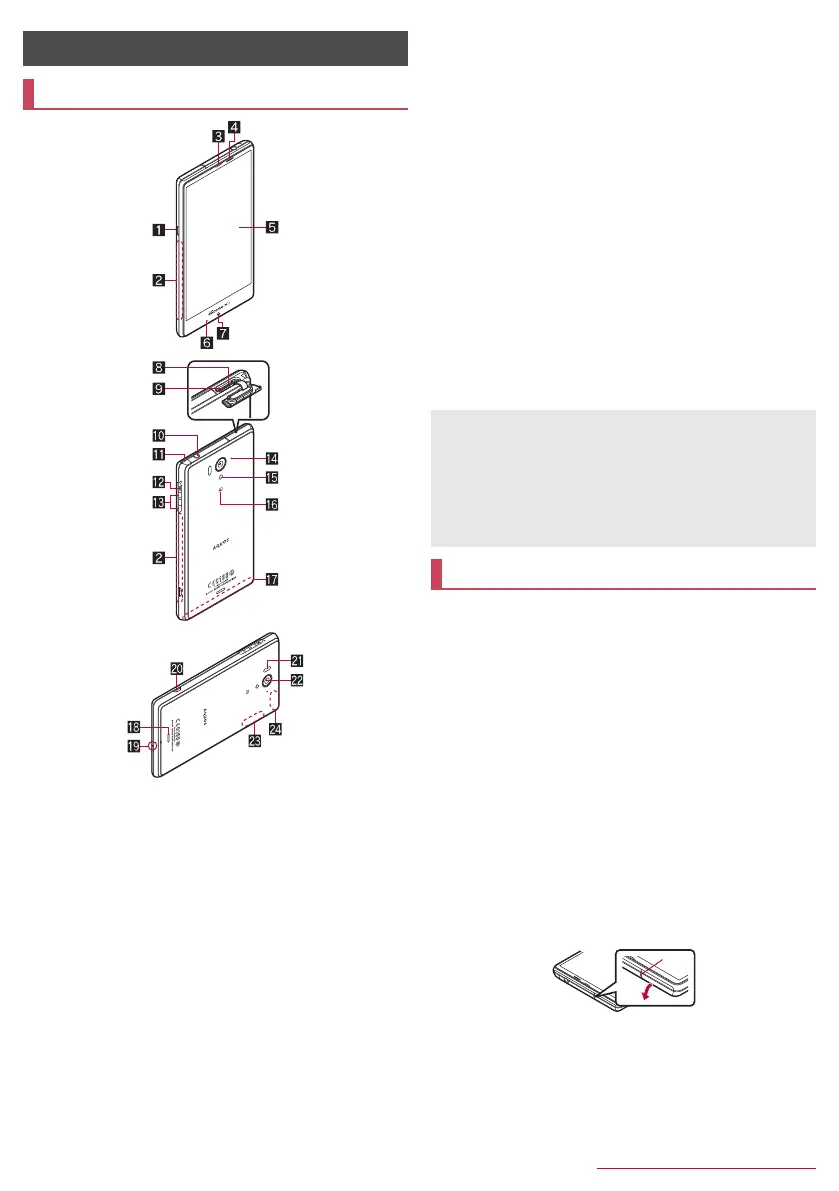

1 External connector terminal
2 Grip sensor
The metal section on both sides is the sensor.
3 Earpiece
4 Proximity sensor/Brightness sensor
*1
The proximity sensor detects the distance to the face and
prevents inadvertent operation of touch panel during a call.
The brightness sensor detects the brightness of the
surrounding area and adjusts the brightness of the backlight.
5 Display/Touch panel
6 Incoming/Charging lamp
7 In-camera
8 microSD Card slot
9 docomo mini UIM card slot
a Earphone/Microphone terminal
b Mobacas/TV antenna
c H: Power key
Use to turn the power on/off, etc.
Use to turn the display on/off.
d x/y: Volume UP/DOWN key
Adjusts the volume in each function.
e Out-microphone
Use as a sub microphone when recording videos.
Use to measure ambient noises for communicating by making
your voices sound clear when using Noise suppression.
f Mobile light
g a mark
IC card is contained (It cannot be removed).
h FOMA/Xi antenna
*2
i Speaker
Ringtone, music, etc. can be heard from here.
The other party’s voice can be heard from here during a
hands-free call.
j Mouthpiece/Microphone
k Strap hole
l Infrared port
m Out-camera
n Wi-Fi/Bluetooth antenna
*2
o GPS antenna
*2
, FOMA/Xi sub antenna
*2
*1 Do not cover the sensor area with your hand or paste a sticker
etc. on the sensor area. The sensor may not work properly.
*2 The antenna is built into the main body. Covering the antenna
area with your hand may influence the quality.
A docomo mini UIM card is an IC card that records personal
information, such as phone numbers.
You cannot use functions such as the phone or packet
communication without inserting a docomo mini UIM card.
You cannot use the docomo mini UIM card with devices other
than compatible ones and may not be able to use a part of the
website and data when you change from the UIM.
In Japan, you cannot call to the emergency number (110, 119 or
118) without inserting a docomo mini UIM card.
A docomo mini UIM card has a security code called PIN code
(nP. 68 “PIN code”).
The handset supports only docomo mini UIM card. Change the
UIM at a docomo Shop.
Before inserting or removing the docomo mini UIM card, turn off
the power. Hold the handset securely with your hand.
■ Inserting docomo mini UIM card
1
Open the docomo mini UIM card/microSD Card
slot cover
: Hook the tip of a finger into the slot to open.
Before Using the Handset
Part names and functions
Earphone/Microphone terminal
For details on the corresponding earphone/microphone, refer to
the following website.
(http://k-tai.sharp.co.jp/support/d/sh04f/peripherals.html#!/
earphone_support) (in Japanese only)
Out-microphone
When using functions which support the out-microphone, do not
cover the hole of the out-microphone.
