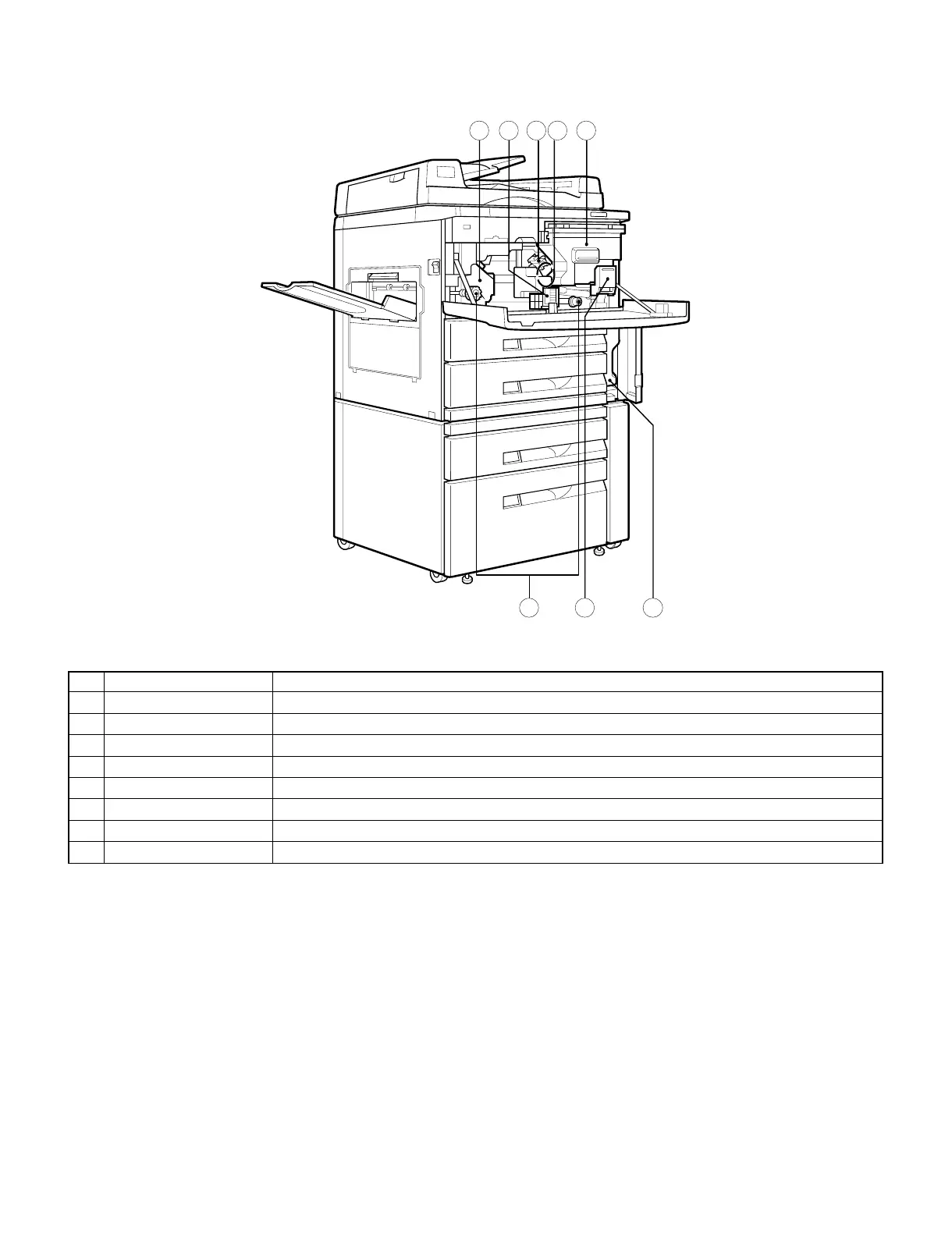

2. Internal structure
No. Name Function
1
Fusing unit Fuses toner to paper.
2
Transport level Turn to open the paper transport section.
3
Corona unit The unit is used to charge the photoconductive drum.
4
Photoconductive drum Copy images are formed on the photoconductive drum.
5
Toner hopper Contains toner.
6
Roller rotating knobs Turn to remove misfed paper.
7
Toner hopper lock lever Pull down release the toner hopper.
8
Waste toner bottle Waste toner is collected here. Replace when a message appears in the display indicating the need to do so.
4 – 2
