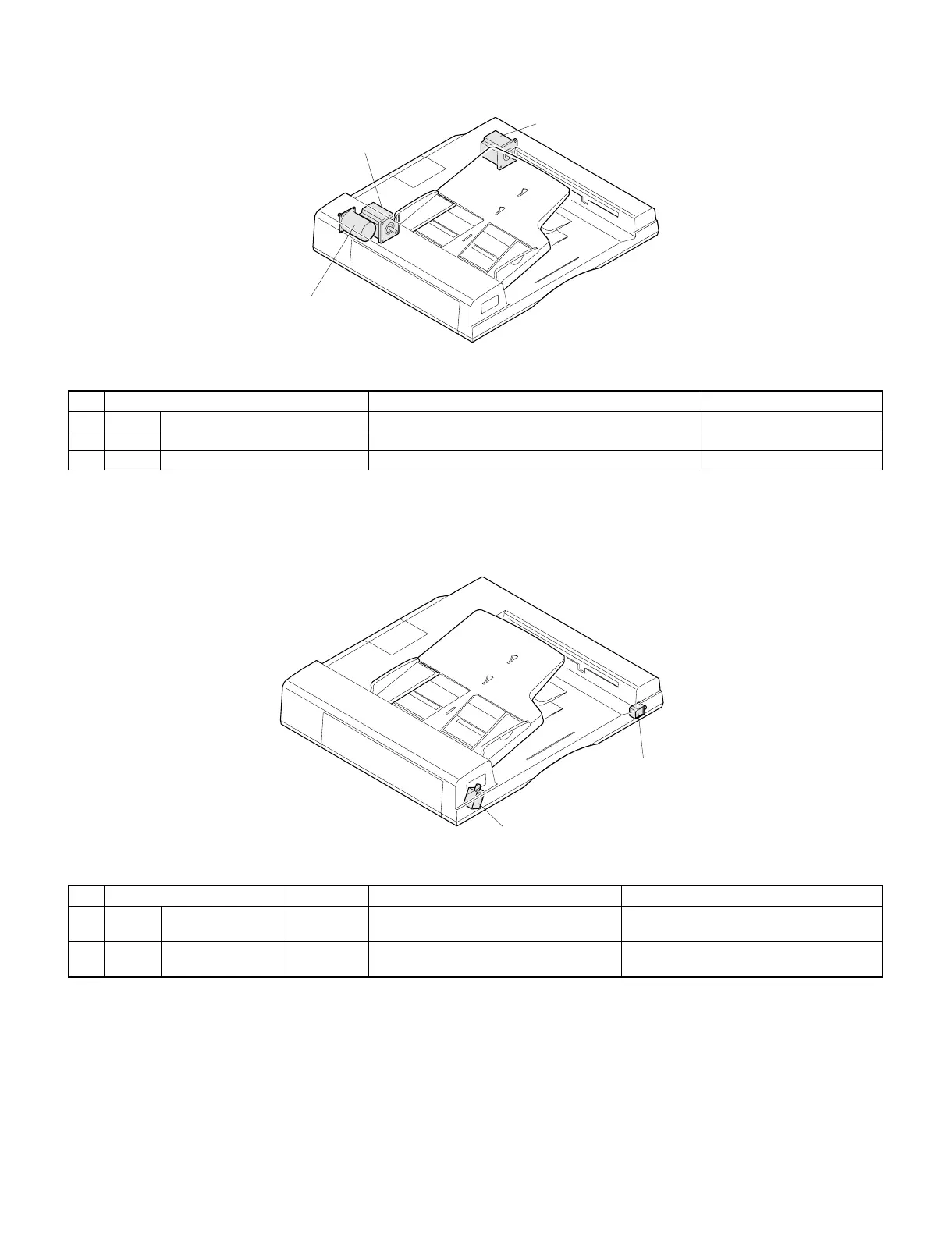

13. RADF (Motor)
No. Name Function, operation Type
1 DFM Paper feed motor Driving of pick-up roller, separation roller, and resist roller DC motor
2 DTM Transport motor Driving of transport belt roller Stepping motor
3 DRM Reversion motor Driving of reversion roller and paper exit roller Stepping motor
14. RADF (Clutches and solenoid)
No. Name Type Function, operation Contact point, output
1 DFSOL Paper feed solenoid DC solenoid Presses paper feed weight plate against
document to operate the shutter.
Weight plate and shutter go down when
turned ON.
2 DRSOL Reversing solenoid DC solenoid Selects between paper exit and reversion
paths by driving reversing flapper.
Reversion path is selected when turned ON.
1.DFM
2.DTM
3.DRM
1.DFSOL
2.DRSOL
4 – 15
