Sharp AR-5132

15. RADF (PWB)
No. Name Function
1 Control PWB RADF control
2 Document feed sensor PWB Detection of document feed
3 Document timing sensor PWB Detection of document transport timing
4 LED PWB LED lighting
5 Reversing sensor PWB Detection of document reversing

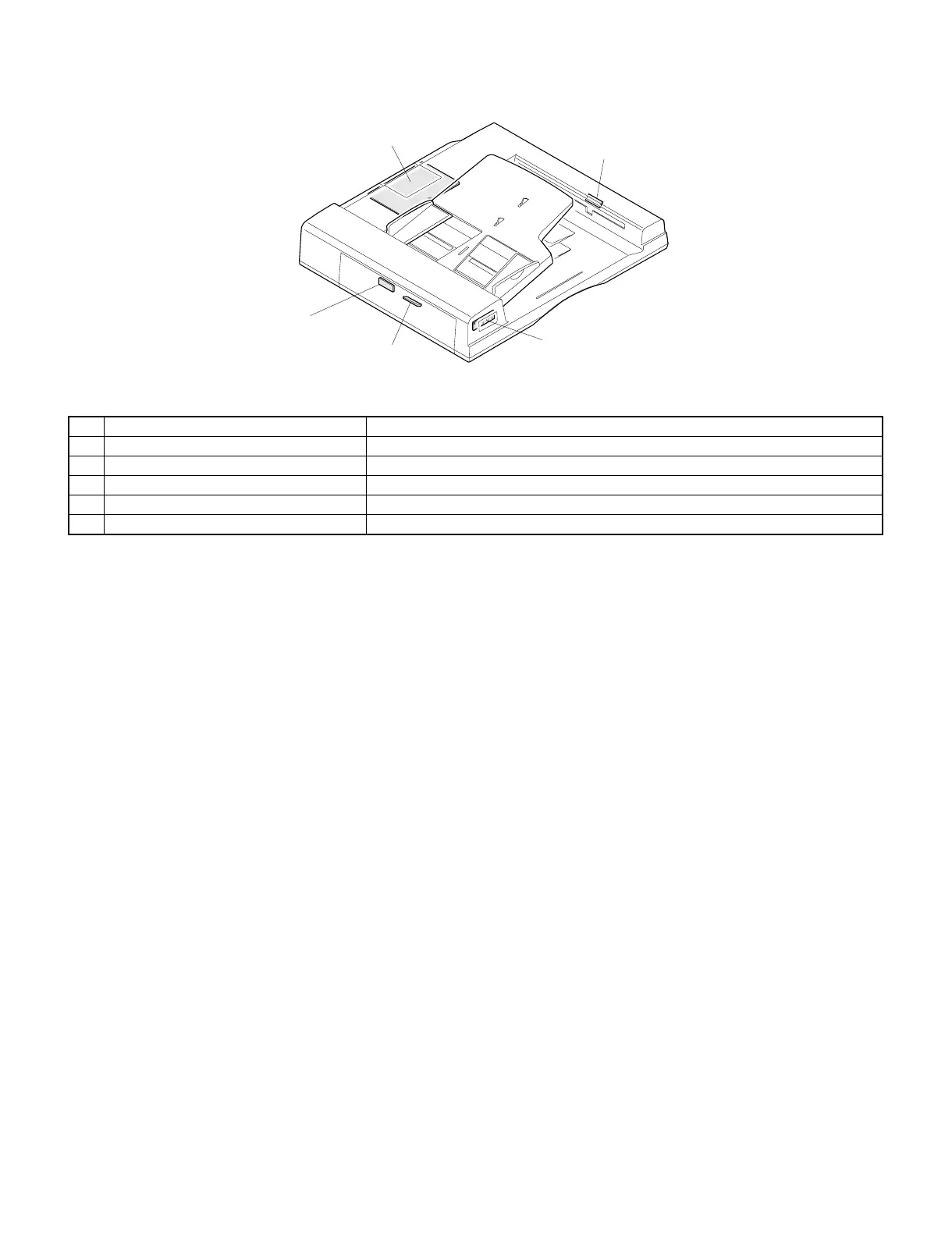

1.Control PWB
2.Document feed sensor PWB
4.LED PWB
5.Reversing sensor PWB
3.Document timing sensor PWB
4 – 16
