Sharp AR-M201

AR-203E/5420/M200/M201 DISASSEMBLY AND ASSEMBLY 8 - 17

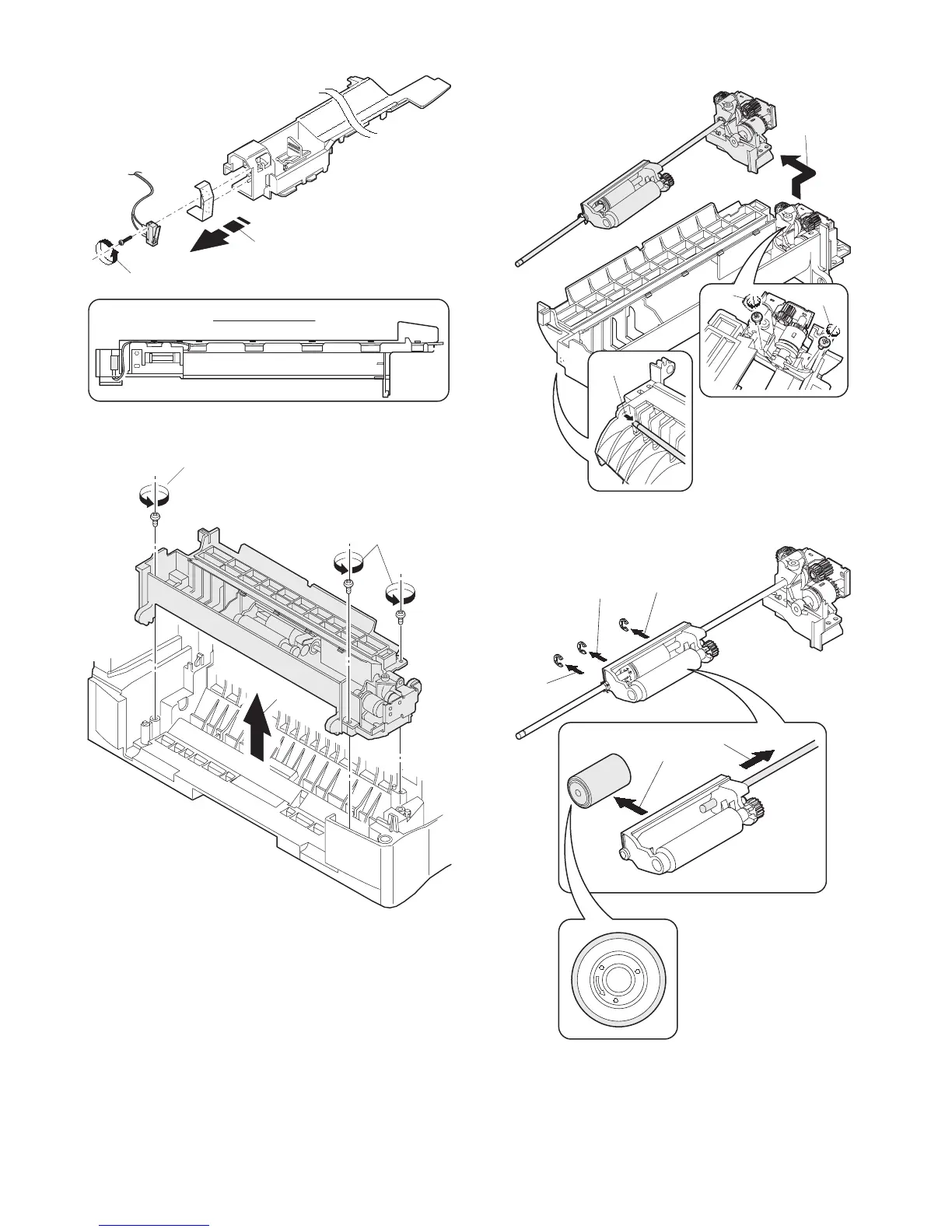

2) Remove the screw and remove the side door detection unit.
3) Remove three screws and remove the multi paper feed upper
frame.
4) Remove two screws and remove the multi feed bracket unit
from the multi paper feed upper frame.
5) Remove three E-rings and remove the manual paper feed
roller B9.
