AR-M355N/M455N EXTERNAL VIEWS AND INTERNAL STRUCTURES 5 - 5

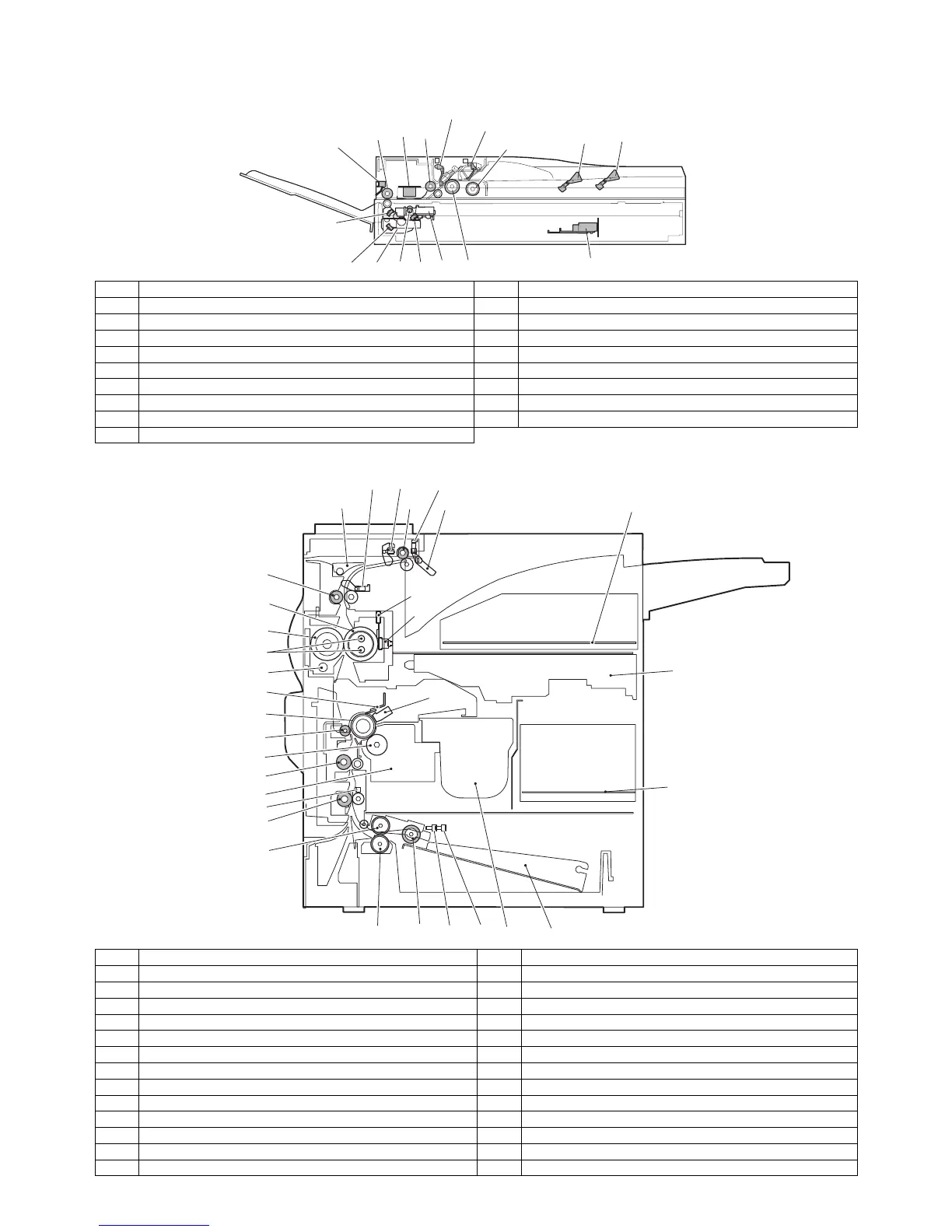

5. Cross sectional view
A. Scanner unit
B. Engine
No. Name No. Name
1 CIS unit 10 Copy lamp base unit
2 Original resist roller 11 No. 1 mirror
3 Original resist front sensor (SPPD) 12 Copy lamp (Xenon)
4 Original set sensor (SPED) 13 Mirror base unit
5 Original take-up sensor 14 No. 3 mirror
6 Original length sensor 1 (SPLS1) 15 No. 2 mirror
7 Original length sensor 2 (SPLS2) 16 Original exit roller
8 CCD/lens unit 17 Original exit sensor
9 Original feed roller
No. Name No. Name
1 OPC drum 14 Machine tray (Paper tray1) rotating plate
2 Main charger 15 Upper heat roller
3 Cleaning blade 16 Pressure roller
4 LSU 17 Heater lamp
5 Developing unit 18 Thermistor (RTH1 / RTH2)
6 Magnet roller 19 Thermostat
7 Toner hopper 20 Fusing back roller
8 Transfer roller 21 Reverse gate
9 Resist roller 22 Paper exit roller
10 Paper transport roller 23 Full detection lever
11 Machine tray (Paper tray1) paper feed roller 24 Printer control PWB
12 Machine tray (Paper tray1) separation roller 25 Power supply unit
13 Machine tray (Paper tray1) take-up roller 26 Cleaning roller
1
2
3 SPPD
4 SPED
5
6
7
8
910
11
1213
14
15
16
17 SPOD
22 2321
POD1 POD2 POD3
20
15
25
4
18
19
17
26
16
2
3
24
13 PED TUD
10
11
12
5
7
14
9
8
6
1
PPD1

Sharp AR-M455N Specifications

General

Functions	Print, Copy, Scan, Fax
Print Speed	Up to 45 ppm
Print Resolution	1200 x 1200 dpi
Copy Speed	Up to 45 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Monthly Duty Cycle	150, 000 pages
Zoom Range	25% - 400%
Type	Laser
Original Size	A3
Warm-up Time	Less than 30 seconds
Duplex Printing	Yes
Paper Capacity	1, 100 sheets (standard)
Paper Size	A3, A4, A5, B4, B5, Legal, Letter
Connectivity	USB, Ethernet
Display	LCD
