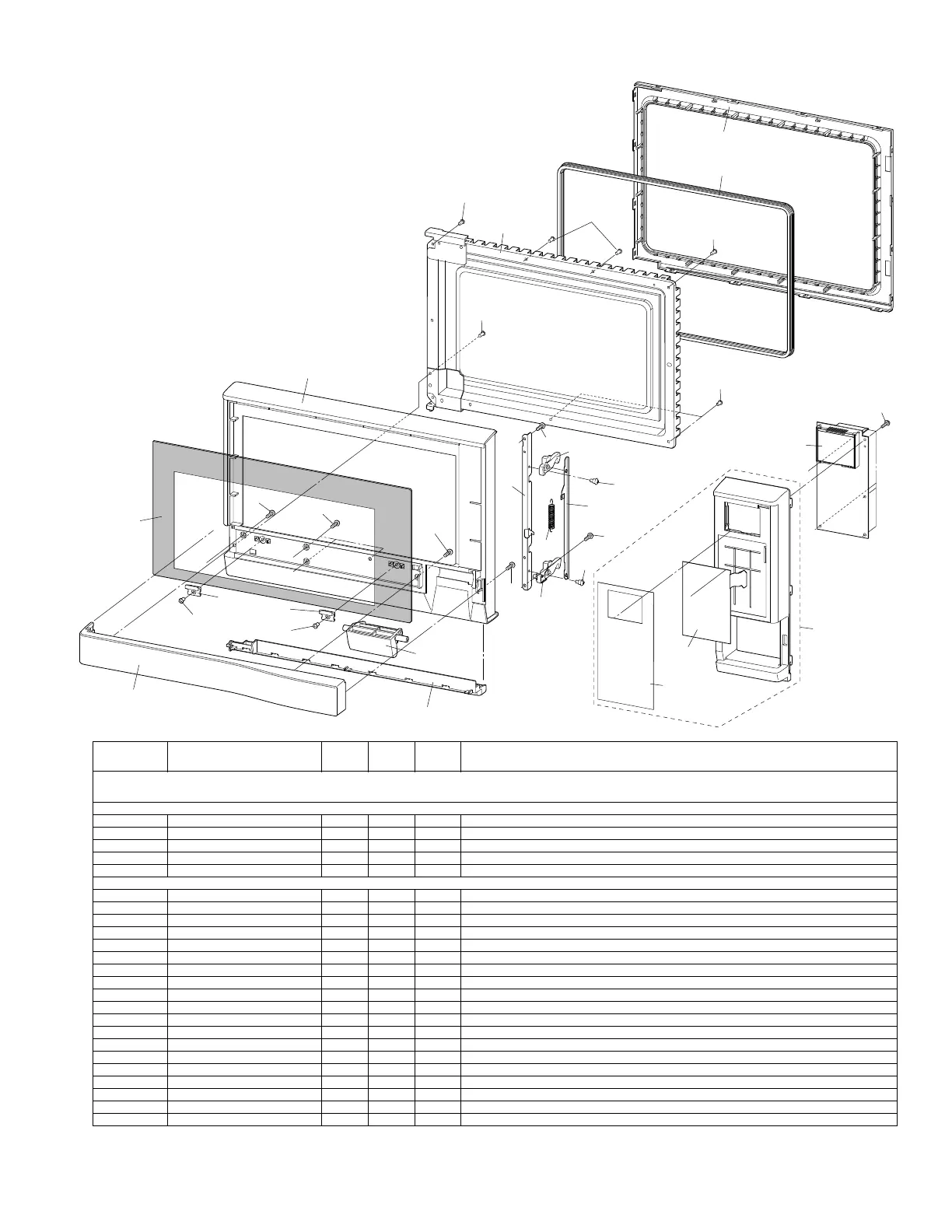

[2] DOOR AND CONTROL PANEL PARTS
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
[2] DOOR AND CONTROL PANEL PARTS
CONTROL PANEL PARTS
5-1 DPWB-A967DRKZ BM Control Unit
5-2 FPNLCC095WRKZ AZ Control Panel Assembly
5-2-1 PSHEPB539WREZ AK Key Top Film (Key sheet)
5-2-2 QSW-KA104DRZZ AL FPC (Membrane switch)
5-3 XEPS730P10X00 AA Screw; 3mm x 10mm
DOOR PARTS
* 6-1 DDORFB468WRYZ BF Door Sub Assembly (Door panel)
6-2 FHNDPA056WRKZ BD Handle Assembly (Door open handle) [AX1100(IN)]
6-2 FHNDPA057WRKZ BE Handle Assembly (Door open handle) [AX1100(R)]
* 6-3 GWAKPB337WRFZ AV Door Frame
6-4 LANGTA525WRPZ AG Latch Lever
6-5 LANGTA527WRPZ AG Latch Angle
* 6-6 LSTPPA334WRFZ AG Latch Head L
* 6-7 LSTPPA335WRFZ AG Latch Head U
6-8 LSTPPA337WRFZ AF Glass Stopper
6-9 LX-BZA216WREZ Special Screw
6-10 MSPRTA271WREZ AE Spring
6-11 PGLSPA838WREZ AQ Out Door Glass
6-12 PPAC-A163WREZ AT Door Packing
* 6-13 GCOVHA553WRFZ AH Door Cover
6-14 LSTPPA336WRFZ AM Door Sash
6-15 MLEVPA298WRFZ AG Handle Lever (Door lever)
6-16 XETS840P12000 AD Screw; 4mm x 12mm
6-17 XEPS740P08000 AB Screw; 4mm x 8mm
6-18 XEPS740P12000 AA Screw; 4mm x 12mm
6-2
6-3
6-14
6-15
6-13
6-12
6-1
6-17
6-17
6-17
6-17
6-18
6-4
6-10
6-6
6-7
6-17
6-17
6-5
6-9
5-2-1
5-2-2
5-2
5-1
5-3
6-9
6-8
6-17
6-17
6-8
6-11
6-16
6-16
6-16
6-16
