Sharp AY-AP9KR User Manual

GB-6
Louvre lever
AY-AP18KR
AY-AP24KR

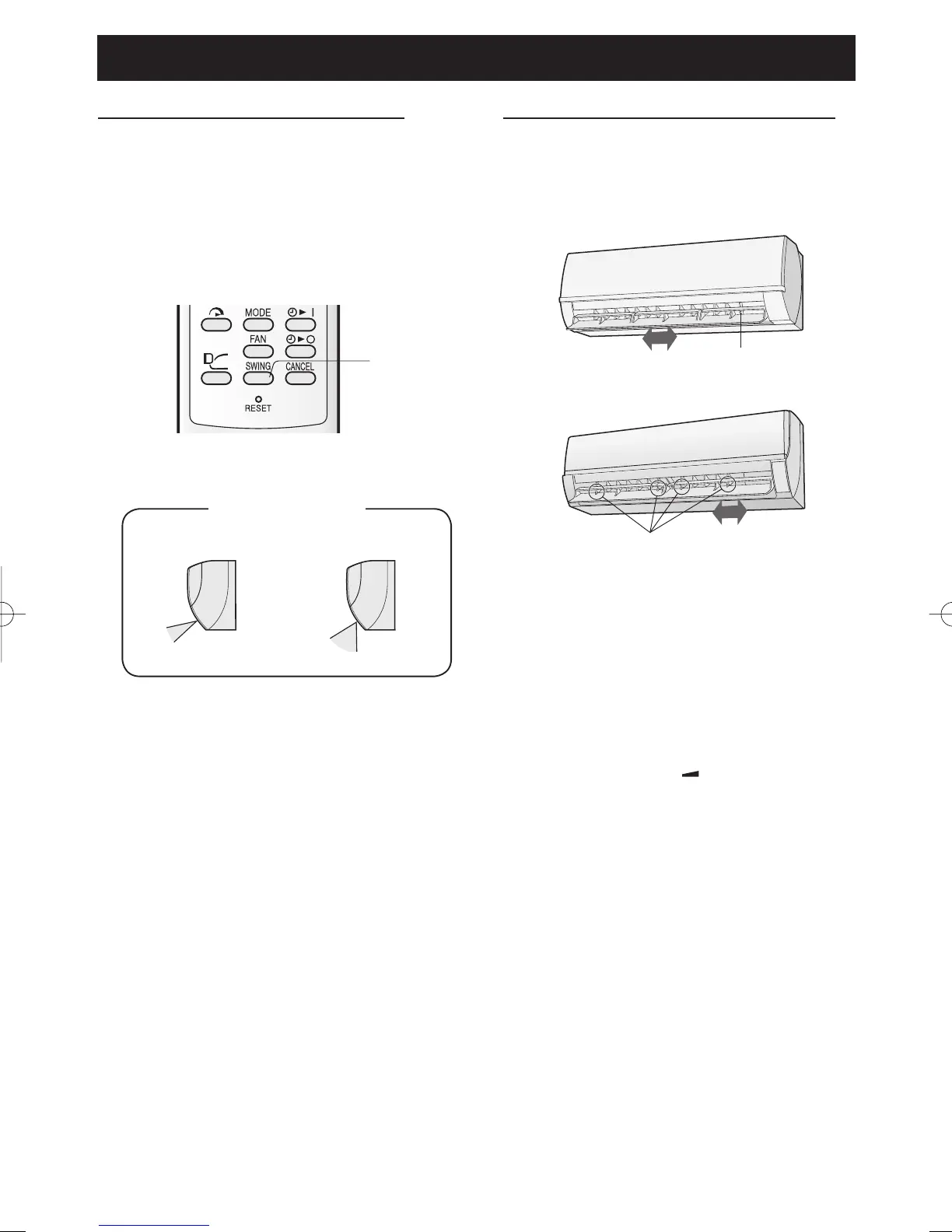

VERTICAL AIR FLOW DIRECTION
1
Press the SWING button.
• The vertical adjustment louvre will swing con-
tinuously.
2
Press the SWING button again when the
vertical adjustment louvre comes at the
desired position.
ADJUSTING THE AIR FLOW DIRECTION
1
2
Adjustment range
COOL and DRY modes
HEAT mode
Louvre levers
AY-AP9KR
AY-AP12KR
HORIZONTAL AIR FLOW DIRECTION
Adjust the horizontal air fl ow direction with
the louver lever.
CAUTION:
Never attempt to adjust the vertical adjustment louvre
manually.
• Manual adjustment of the vertical adjustment lou-
vre can cause the unit to malfunction.
• When the vertical adjustment louvre is positioned
at the lowest position in the COOL or DRY mode
for an extended period of time, condensation may
result.
Do not adjust the horizontal adjustment louvres to
the extreme left or right in the COOL mode with the
fan speed set to “SOFT (
)” for an extended pe-
riod of time. Condensation may form on the louvres.

Sharp AY-AP9KR Specifications

General

Type	Split system
Multi-split	Yes
Product color	White
Hose length (max)	10 m
Refrigerating medium	R410A
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (nominal)	820 W
Cooling energy efficiency (EER, W/W)	3.22
Heating energy efficiency (COP, W/W)	3.63
Seasonal efficiency rating (cooling) (SEER)	-
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	800 W
AC input voltage	220-240 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency class (cooling)	A
Annual energy consumption (cooling)	410 kWh
Hourly energy consumption (cooling)	3.7 kWh
Hourly energy consumption (heating)	3.6 kWh
Annual energy consumption (heating) (Warmer heating season)	- kWh
Indoor unit type	Wall-mountable
Indoor unit depth	198 mm
Indoor unit width	860 mm
Indoor unit height	292 mm
Indoor unit weight	8500 g
Indoor units quantity	1
Indoor unit noise level (high speed)	54 dB
Outdoor unit depth	250 mm
Outdoor unit width	730 mm
Outdoor unit height	540 mm
Outdoor unit weight	27000 g
Outdoor unit noise level	59 dB
