LC-52/60/70LE640U/C6400U,LC-80LE633U/844U (1st Edition)
4 – 25

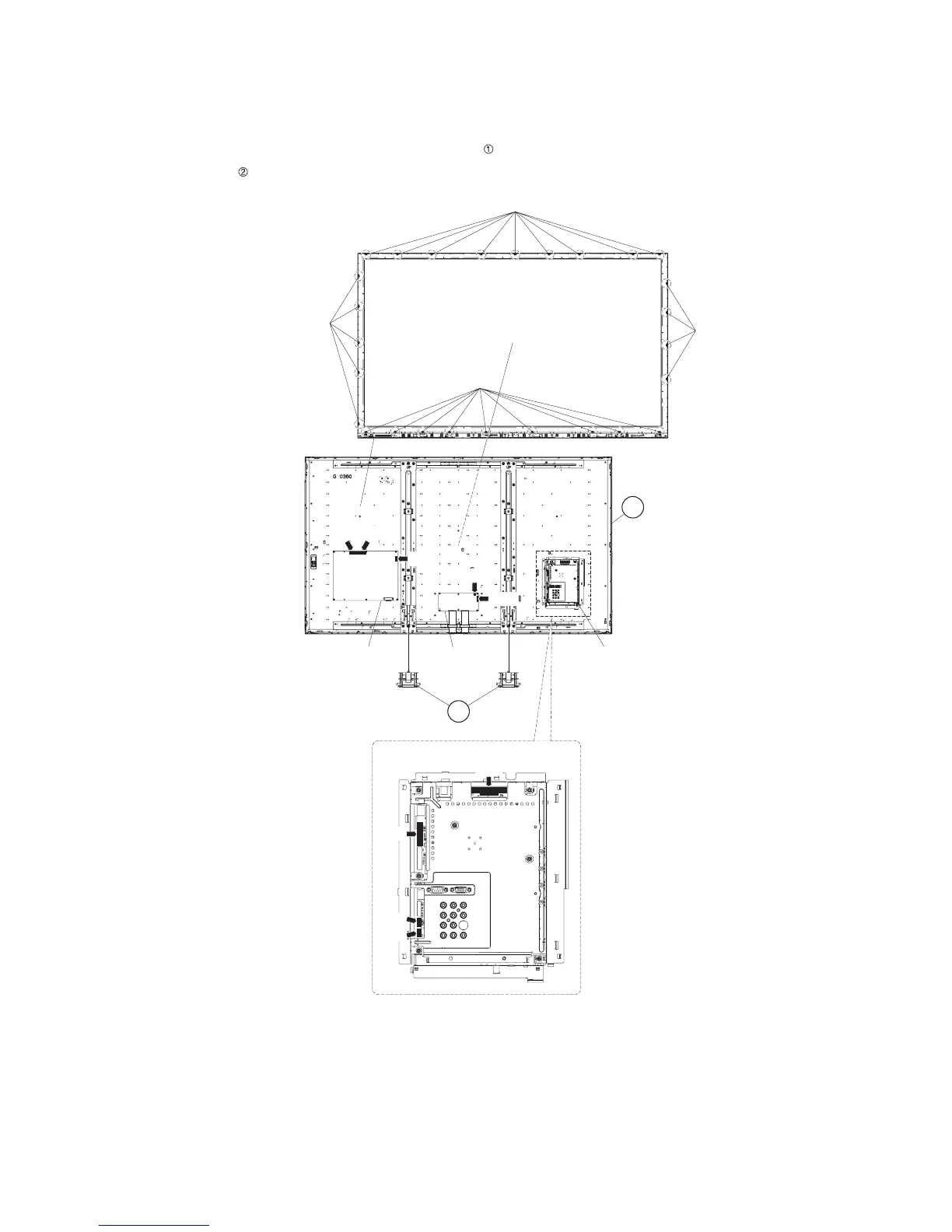

3. Removing of Connectors, 80” LCD Panel Module Unit Ass’y.
1. Disconnect the following connectors from the MAIN Unit. (LV, PD, Cl, UB)
2. Disconnect the following connectors from the POWER/LED DRIVE Unit. (L1, L2, PD)
3. Disconnect the following connectors from the LCD Control Unit. (PL, LW)
4. Remove the 27 Hooks and detach the 80” LCD Panel Module Unit Ass’y .
5. Detach the 2 Bottom cover .
[PD]
[UB]
[CI]
[LV]
MAIN Unit
LCD
Control
Unit
POWER/LED DRIVE
Unit
Hock
Hock
Hock
Hock
[L1] [L2]
[PD]
[PL]
[LW]
1 80" LCD Panel
Module
Unit Ass'y
MAIN Unit
2Bottom cover
To Next Page
