– 3 –
CD-BA120/125

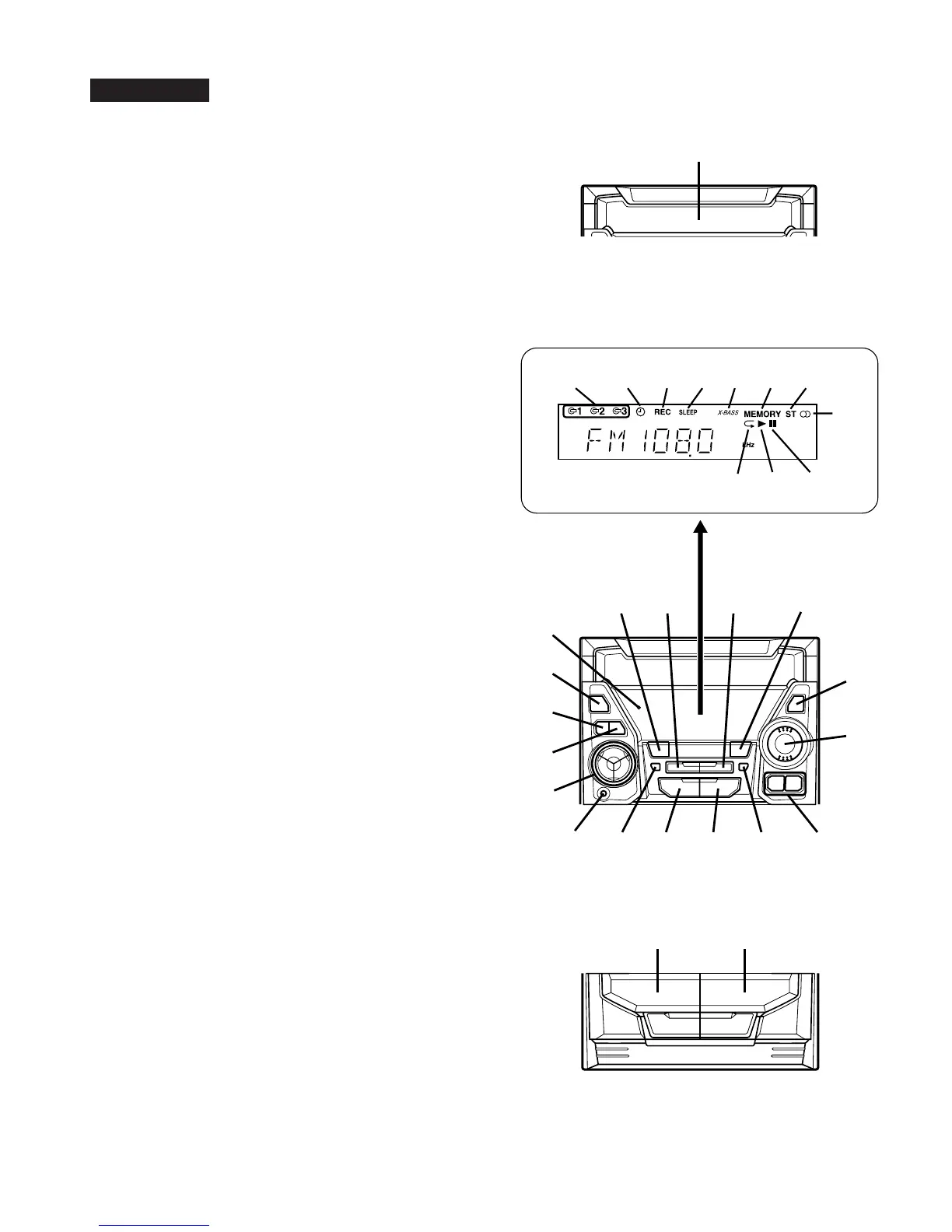

NAMES OF PARTS
CD-BA120/125
1
2
34
5
8
9
6
7
10
1211
16
13
18
22
19
20
21
15
23
24 25 26 27 28 29
14
17
30 31
■ Front panel
11.
(CD) Disc Tray
12.
(CD) Disc Number Indicators
13.
Timer Indicator
14.
Record Indicator
15.
Sleep Indicator
16.
Extra Bass Indicator
17.
(CD/TUNER) Memory Indicator
18.
FM Stereo Mode Indicator
19.
FM Stereo Indicator
10.
(CD) Repeat Indicator
11.
(CD/TAPE) Play Indicator
12.
(CD) Pause Indicator
13.
(CD) Disc Skip Button
14.
(CD) Track Down/Review Button
3
(TUNER) Preset Down Button
3
(TAPE 2) Rewind Button
15.
(CD) Track Up/Cue Button
3
(TUNER) Preset Up Button
3
(TAPE 2) Fast Forward Button
16.
(CD) Open/Close Button
17.
Timer Set Indicator
18.
On/Stand-by Button
19.
Timer/Sleep Button
20.
Clock Button
21.
Function Selector Buttons
22.
Equalizer Mode Selector/Extra Bass/Demo Mode
Button
23.
Volume Up/Down Buttons
24.
Headphone Socket
25.
Memory/Set Button
26.
(CD/TAPE) Stop Button
27.
(CD) Play/Repeat Button
3
(TAPE) Play Button
28.
(TAPE 2) Record Pause Button
29.
Tuning/Time Up/Down Buttons
30.
(TAPE 1) Cassette Compartment
31.
(TAPE 2) Cassette Compartment
