CD-BA120/125
– 8 –

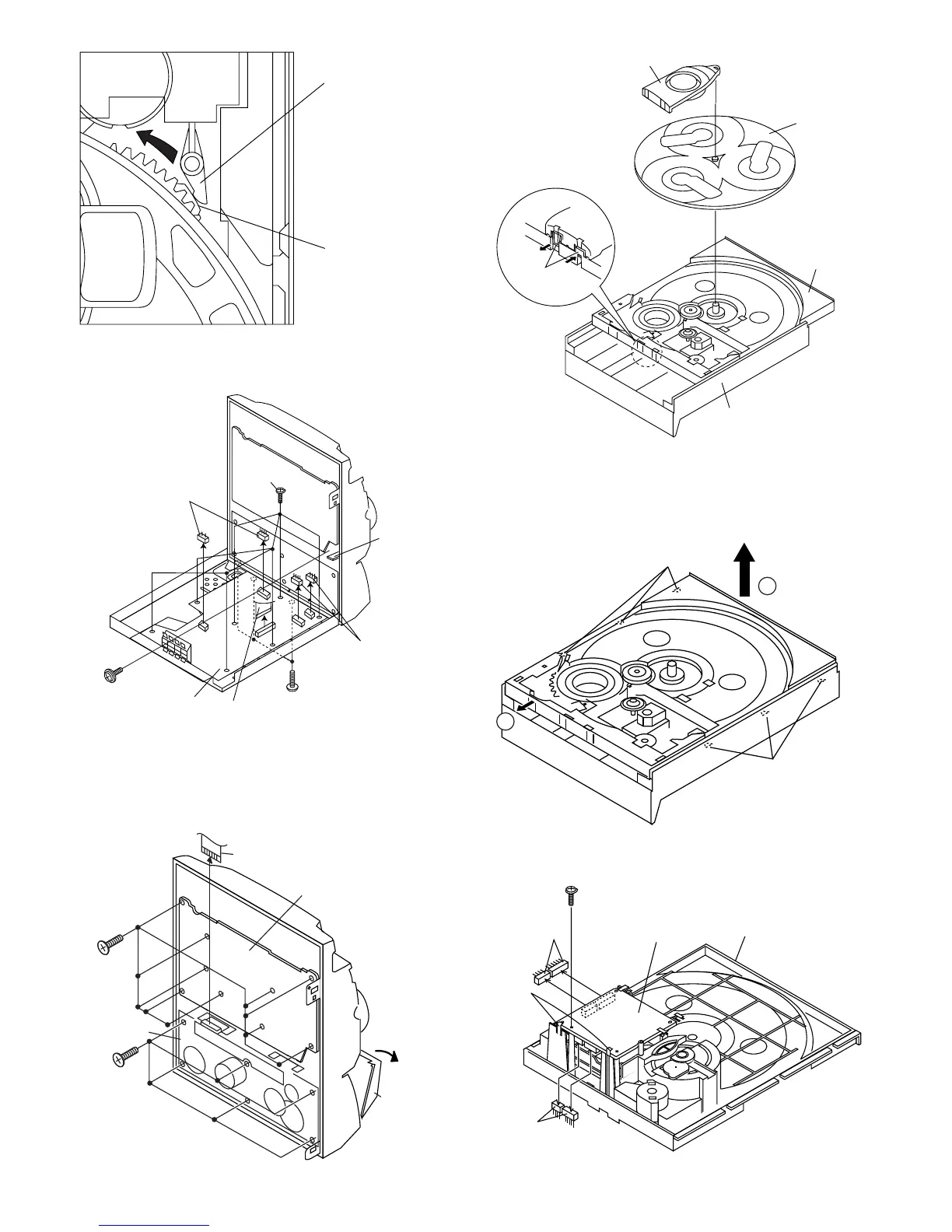

Figure 8-2
Figure 8-3
Figure 8-4
Figure 8-5
Figure 8-6
Turntable
Disc Tray
(H2) x1
CD Player Unit
(H) x2
1
2
(J1) x3
(J1) x3
(K3) x2
(K2) x2
(K3) x2
CD Servo
PWB
CD Player
Base
(K1)x1
ø3x8mm
(E1)x3
ø3x8mm
(D2)x2
(D2)x2
(D3)x1
Main PWB
Headphones
PWB
(D1)x7
ø3x10mm
(D1)x1
ø3x10mm
(F1)x9
ø3x10mm
(F2)x1
(G1)x6
ø3x10mm
Display PWB
Open
Cassette
Holder
Tape
Mechanism
CLAMP LEVER
CAM GEAR RIB
Figure 8-1
7
9
Table of Contents
Table of Contents
1
Important Service Notes (for U.s.a. Only)
2
Specifications
2
Names of Parts
3
Operation Manual
5
Quick Guide
6
Disassembly
7
Speaker Box
9
Removing and Reinstalling the Main Parts
10
CD Mechanism Section
11
Adjustment
11
Tuner Section
12
Front View
13
Notes on Schematic Diagram
13
Waveforms of CD Circuit
14
Block Diagram
15
Schematic Diagram / Wiring Side of P.w.board
18
Voltage
34
Troubleshooting (CD Section)
35
Function Table of IC
39
Fl Display
45
Parts Guide
47
Packing of the Set (for U.s.a. Only)
58
